> EATON - MOELLER>Caixas de isolamento>CI43E-150 095506 0004132078 ELECTRIC Insulated enclosure, +knockouts, HxWxD 250x375x175mm
Produto anterior Próximo produto

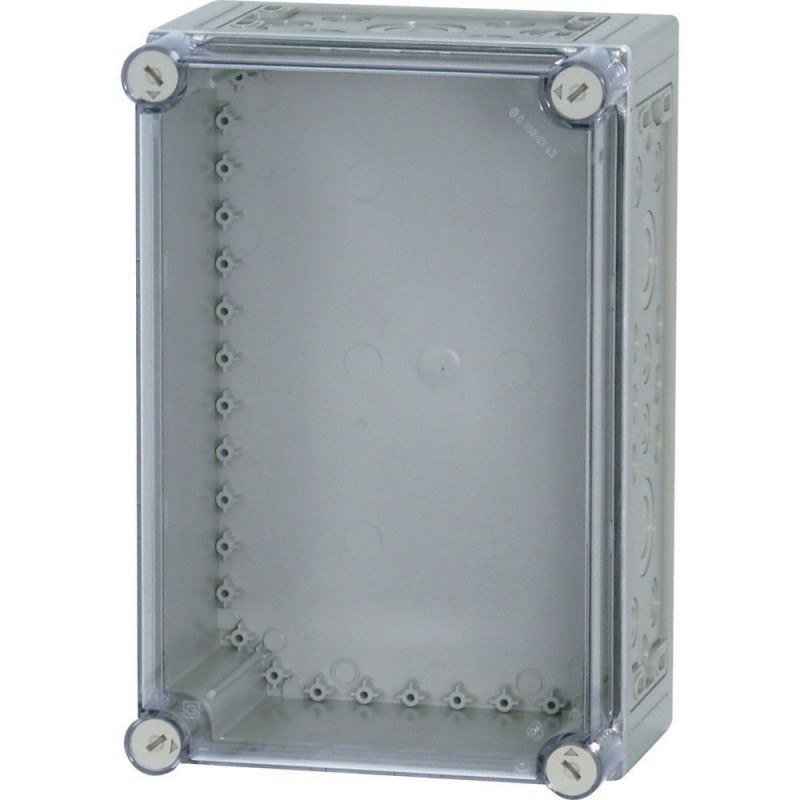

CI43E-150 095506 0004132078 EATON ELECTRIC Insulated enclosure, +knockouts, HxWxD 250x375x175mm Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

CI43E-150 095506 0004132078 EATON ELECTRIC Insulated enclosure, +knockouts, HxWxD 250x375x175mm

CI43E-150

095506

0004132078

EATON-MOELLER

Insulated enclosure, +knockouts, HxWxD=250x375x175mm

Caixa de isolamento com pré-brocas métricas HxLxP=250x375x175mm

Eaton xEnergy Safety Ci LV systems LV switchgear. Insulated enclosure, +knockouts, HxWxD=250x375x175mm

Mais detalhes


Sistemas de distribuição de energia elétrica (incluindo quadros de controle) > Caixas vazias

Caixas de isolamento

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $158.41
Preço unitário: $158.41

Quantidade Preço
1+$158.41
2+$141.03
3+$133.96
4+$129.96
6+$127.31
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Mais informação

▲


General specifications

Product Name
Eaton xEnergy Safety Ci empty enclosure insulated
Catalog Number
095506
EAN
4015080955061
Product Length/Depth
175 mm
Product Height
250 mm
Product Width
375 mm
Product Weight
2.091 kg
Compliances
RoHS conform
Certifications
EN 62208
EN 61439-2
Model Code
CI43E-150

Especificações do produto

Special features
With metric knockouts in all sides of the enclosureInclude fixing straps for wall mountingSealable cover fastenersFull-area knockouts in the sidescan be converted to a distribution board enclosureIntegrated pressure-relief mechanism for short-circuits
Type
Basic enclosureIndividual enclosuresxEnergy Safety Ci
Features
UV resistance beneath protective shield
Cover with overpressure release
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Lower part: 960 °C / cover: 850 °C
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
10 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP65
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Surface finishing
Resistant to corrosion
Used with
Eaton Switching and protection devices
Degree of protection
IP65
IK10
Other
Enclosure material
Plastic
Surface protection
Other
Chemical resistance
Not resistant to: alkalis, benzene
Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions
Partly resistant to: Acids > 10 %
Circuit integrity
Other
Unit type
Single unit
Built-in depth
150 mm
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
22 W
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
20 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
21 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
44 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
40 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
42 W
Color
Gray
Transparent, smoky gray (cover)
Light gray (RAL 7035, base)
Cover/door color
Transparent
Cover/door model
Closed
Cover/door type
None
Optional
Number of openings (flange plates)
4
Plate thickness (cabinet)
6 mm
Plate thickness (cover/door)
6 mm
RAL-number
7035
Width in number of modular spacings
15
Ambient operating temperature details
-40 °C - 80 °C
Material
Glass-fibre reinforced polycarbonate (base)
Halogen free
Non-reinforced polycarbonate (cover)
Mounting method
Surface mounted (plaster)
Number of rows
0
Functions
Extension possible
Temperature resistance
Temperature resistant: -40 °C - 120 °C (enclosure)
Temperature resistant: 80 °C (gasket)
Temperature resistant: 85 °C (enclosure bolt)
Flammability characteristics (UL)
V1 (base) (UL94)
V2 (cover) (UL94)
Protection class
II
Number of modules
1
Surface treatment
Resistant to corrosion
Internal depth
150 mm
Mounting depth with mounting plate
150 mm
Nominal current
1600 A
Number of conduit inlets
76
Suitable for
Lightning protection
Outdoor use
Saline spray resistance
IEC 60068-2-11

Datasheet - PDF

▲
Título: Tamanho: Tipo:
CI43E-150 0004132078 095506 ES_098469.pdf 727 Kbytes CI43E-150 0004132078 095506 ES_098469.pdf
