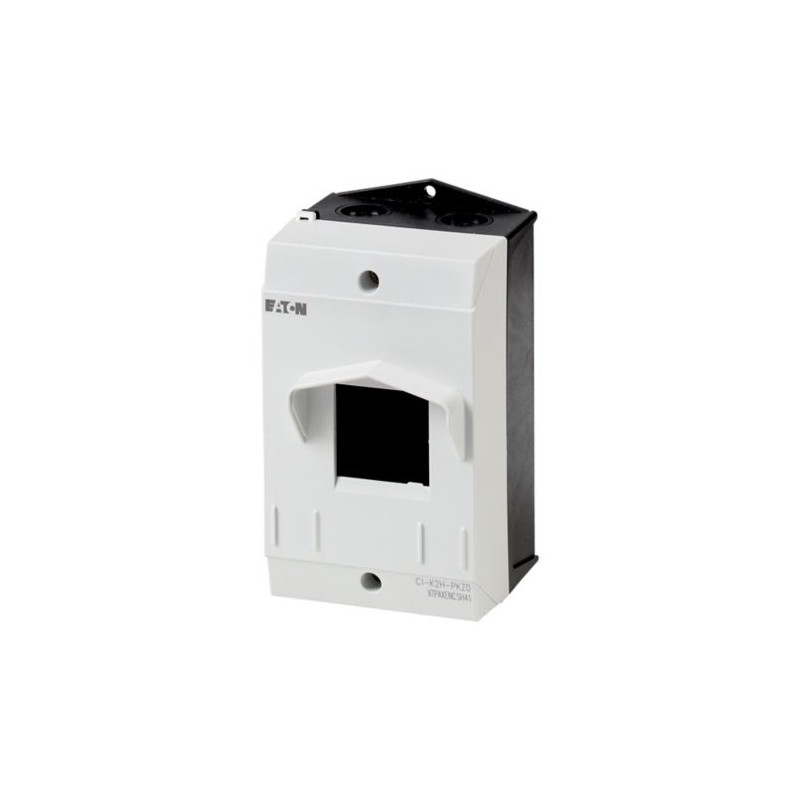

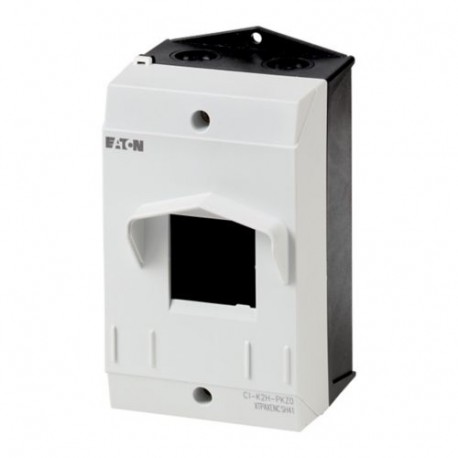

CI-K2-PKZ0 219653 Y7-219653 EATON ELECTRIC Insulated enclosure, for PKZ0, +cut-out 45mm, IP40 x
CI-K2-PKZ0
219653
Y7-219653
EATON-MOELLER
Insulated enclosure, for PKZ0, +cut-out 45mm, IP40_x
Gabinete isolado de superfície HxLxP=160x100x 104mm IP40 para PKZ0 com
Eaton Moeller® series CI-K Insulated enclosure, for PKZ0, +cut-out 45mm, IP40_x
Caixa pequena para PKZ0, com recorte de 45 mm, grau de proteção IP40, policarbonato reforçado com fibra de vidro, base da caixa RAL 9005, preto/apenas operador RAL 7035, cinza claro, furos cegos métricos para entrada de cabos na parte superior, inferior e traseira da placa traseira, diafragma de entrada de cabo de pressão, Entrada do cabo de controle
Aparelhos elétricos de baixa tensão > Caixa vazia para aparamenta
Chaves de proteção do motor
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Moeller® series CI-K Accessory Insulated enclosure |
| Catalog Number | 219653 |
| EAN | 4015082196530 |
| Product Length/Depth | 105 mm |
| Product Height | 180 mm |
| Product Width | 100 mm |
| Product Weight | 0.33 kg |
| Certifications | CE |
| Catalog Notes | Additional cable insertion membrane as cable entry gland: 2 x in the rear wall and 1 x at the bottom. |
| Model Code | CI-K2-PKZ0 |
Especificações do produto
| Used with | PKZ0 +L-PKZ0 (2 units), +NHI or AGM, +U or A, PKZM0-… |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | N and PE terminal Cover with aperture dimensioned to accommodate front of breaker |
| Enclosure material | Plastic |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 10 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Product category | Accessories |
| Degree of protection | IP41, when mounted vertically IP40 NEMA Other |
| Model | Surface mounting |
| Degree of protection (front side) | IP40 |
| Knockouts | 2 x M25 (cable entry knockout at the top) 2 x M25 (cable entry knockout at the bottom) |
| Característica | Valor |
|---|---|
| Material da caixa protetora (EF001596) | Plástico |
| Largura (EF000008) | 100 mm |
| Altura (EF000040) | 180 mm |
| Profundidade (EF000049) | 105 mm |
| Com tampa transparente (EF001094) | Não |
| Adequado para paragem de emergência (EF001433) | Não |
| Modelo (EF000010) | Montagem saliente |
| Grau de proteção (IP) (EF005474) | IP40 |
| Grau de proteção (NEMA) (EF011959) | Outro |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| CI-K2-PKZ0 Y7-219653 219653 DE_219657.pdf | 2 Mbytes |
|
