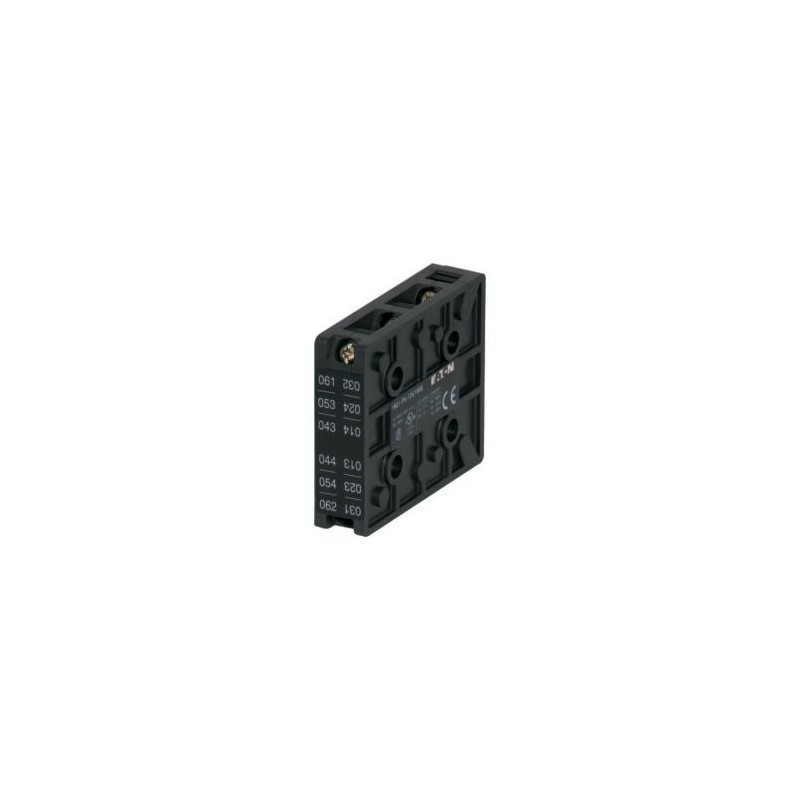

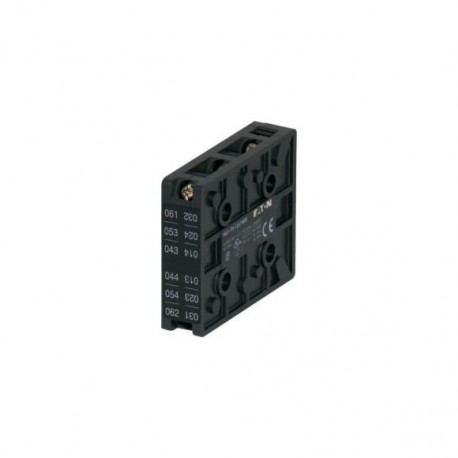

HI21-P5-125/160E 280963 Y7-280963 EATON ELECTRIC Auxiliar bloco de contato 2NA + 1NC

HI21-P5-125/160E

280963

Y7-280963

EATON-MOELLER

Auxiliar bloco de contato 2NA + 1NC

Módulo de contato auxiliar 2 NO + 1 NC para P5-125/160.../E

Eaton Moeller® series P5 Auxiliary contact, 2N/O+1N/C, for P5, 125A, flush mounting

Contato auxiliar, Gama de produtos: Acessórios, Referência do grupo de peças: P5, Comportamento de conexão de interrupção tardia, Comportamento de desconexão de conexão antecipada, O 23/24 o. 53/54 N/O é sempre conectado como um contato de rejeição de carga., Para montagem do lado esquerdo ou direito, Contatos N/O = Normalmente aberto: 2 N/O, Contatos N/A = Normalmente fechados: 1 NF, para uso com: P5-125(160)/E(EA)

Mais detalhes


Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares

Desconexões e Comutadores Cam

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $48.17
Preço unitário: $48.17
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

geralmente comprados juntos

Best sellers

Mais informação



General specifications

Product Name
Eaton Moeller® series P5 Accessory Auxiliary contact
Catalog Number
280963
EAN
4015082809638
Product Length/Depth
50 mm
Product Height
75 mm
Product Width
130 mm
Product Weight
0.045 kg
Compliances
CE Marked
Certifications
IEC 60947-5
UL 508
CSA Std. C22.2 No. 14-05
EN 60947-5
CSA File No.: 223805
CSA-C22.2 No. 14-05
CSA
UL File No.: E36332
CSA Class No.: 3211-03
IEC/EN 60947-5
CE
UL Category Control No.: NLRV, NLRV7
Catalog Notes
Late-break switching-on behavior, early-make switching-off behavior
Model Code
HI21-P5-125/160E

Especificações do produto

Type
Auxiliary contact
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Screw connection
Used with
P5-125(160)/E(EA)
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
2
Number of switches (fault signal)
0
Mounting position
Right side
Left side
Connection type
Screw connection
Mounting method
Side mounting
Control circuit reliability
1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Model
Top mounting
Lamp holder
None
Rated operational current (Ie)
0.1 A at DC-13, 250 V
Rated uninterrupted current (Iu)
10 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (main cable)
8 mm
Product category
Accessories
Short-circuit protection rating
Max. 10 A gG/gL, Fuse, Auxiliary contacts
Rated insulation voltage (Ui)
500 V
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
3 A
Rated operational current (Ie) at DC-13, 125 V
0.23 A
Rated operational current for specified heat dissipation (In)
6 A
Terminal capacity (flexible with ferrule)
0.5 - 2.5 mm², ferrules to DIN 46228
Terminal capacity (solid)
0.5 - 2.5 mm²
Tightening torque
0.8 Nm, Screw terminals

ETIM for 280963 Componentes industriais para Baixa Tensão (EC000041)
Característica Valor
Número de contatos como inversores (EF008257) 0
Número de contatos como contato normalmente aberto (EF008256) 2
Número de contatos como contato normalmente fechado (EF008255) 1
Número de comutadores de sinal de erro (EF007613) 0
Corrente nominal de operação Ie em AC-15, 230 V (EF001385) 6 A
Acabamento da conexão elétrica (EF003961) Ligação com parafuso
Modelo (EF000010) Clip-on
Método de montagem (EF000003) Montagem lateral
Suporte da lâmpada (EF000048) Nenhum
