NX-OD3153
NX020018F
NXOD3153
OMRON
1
Disponibile Invio oggi

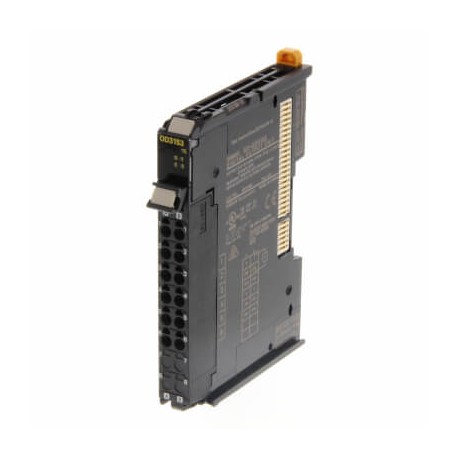

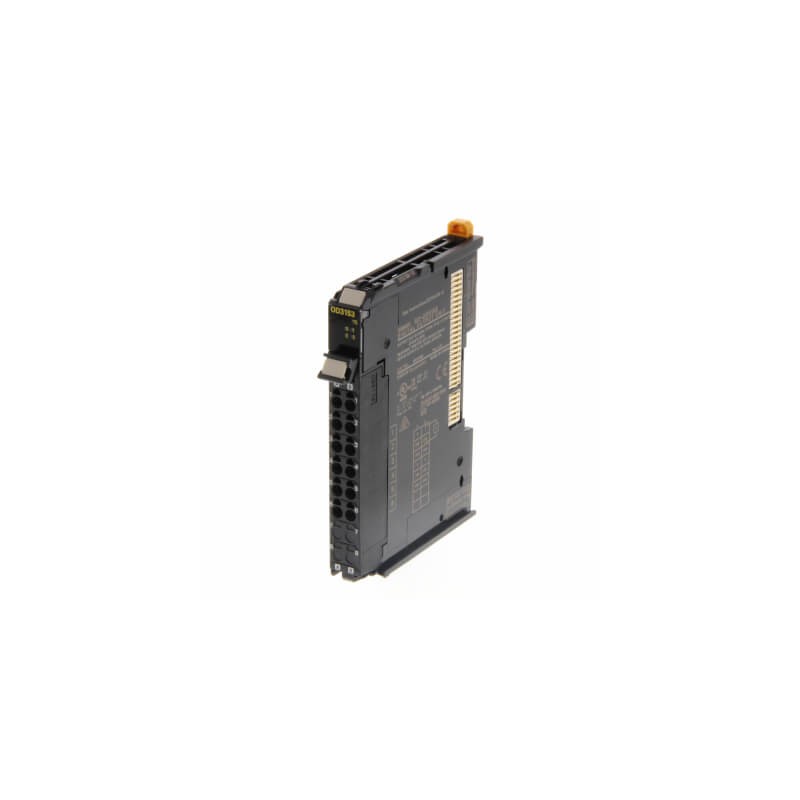

Unità NX - 4 NPN ad Alta Velocità
Unità NX - 4 uscite NPN ad alta velocità
Serie NX, 4 uscite digitali NPN High Speed
Integrated Automation > NX-series
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
I/O system | NX I/O Bus |
Type of module | Digital I/O |
Number of digital inputs | 0 |
Digital input type | None |
OFF/ON delay | 0-0.3 ms |
Number of digital outputs | 4 |
Digital output type | NPN |
Permitted voltage at output | 15.0-28.8 V |
Output current | 0.5 A |
Short-circuit protected outputs | |
Connection method | 2-wire, 3-wire |
Signal processing | Free running, High speed, Synchronous |
IO link master | |
I/O connection type | Push-in |
Number of I/O connectors | 1 |
Detachable I/O connector | |
Suitable for safety functions | |
SIL according to IEC 61508 | None |
Number of IOV (V+) terminals | 4 |
Number of IOG (V-) terminals | 4 |
Number of COM terminals | 0 |
Degree of protection (IP) | IP20 |
Height | 100 mm |
Width | 12 mm |
Depth | 71 mm |
Weight | 70 g |
Titolo: | Dimensione: | Tipo: |
---|---|---|
NX-OD3153 NXOD3153 NX020018F nx_had_brochure_en.pdf | 2 Mbytes |
