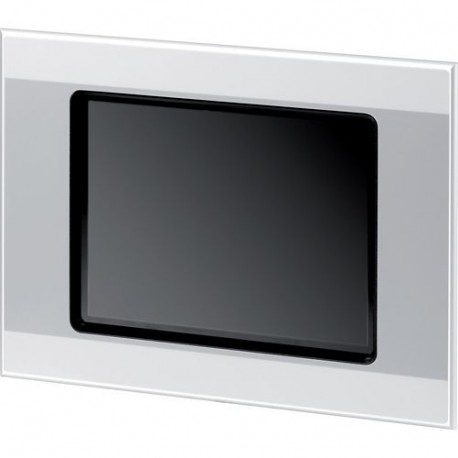

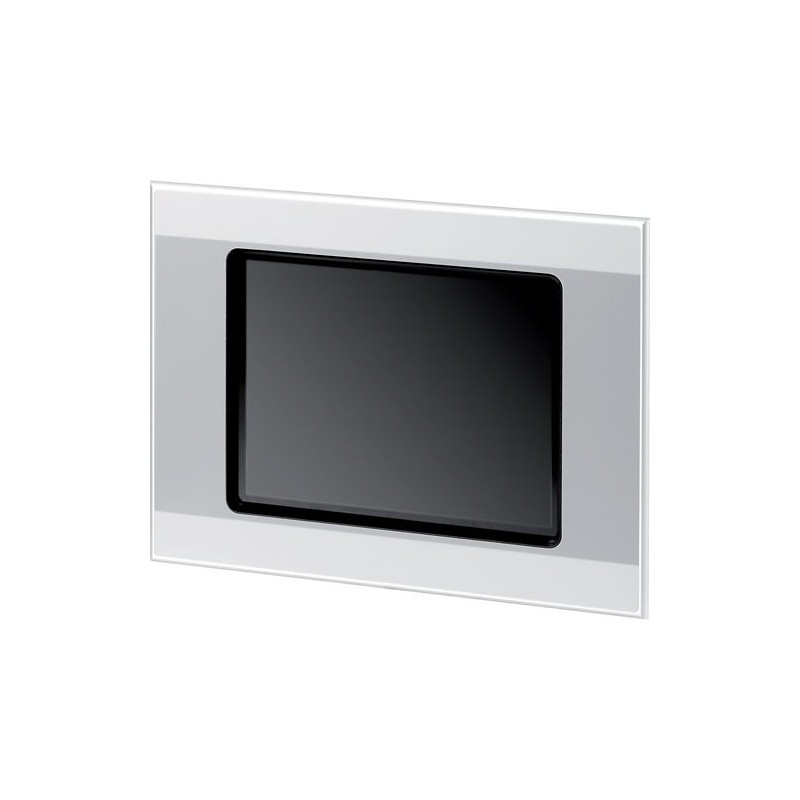

XV-363-10-C02-A00-1B 197668 EATON ELECTRIC Pannello a sfioramento a infrarossi 10" 24 VDC 640 x 480 2x Ether..
XV-363-10-C02-A00-1B
197668
Y7-197668
EATON-MOELLER
Pannello a sfioramento a infrarossi 10" 24 VDC 640 x 480 2x Ethernet 1x RS232
Eaton XV-363 Single touch display, 10-inch display, 24 VDC, IR, 640 x 480 pixels, 2x Ethernet, 1x RS232, 1x RS485, 1x CAN, 1x DP, PLC function can be fitted by user
Terminali Touch HMI
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton XV-363 Touch panel
Catalog Number
197668
EAN
7640130099388
Product Length/Depth
345 mm
Product Height
80 mm
Product Width
260 mm
Product Weight
3.5 kg
Certifications
EN 50178
EAC
IEC/EN 61131-2
EAC
IEC/EN 61131-2
Catalog Notes
Current consumption at 24 V DC
Model Code
XV-363-10-C02-A00-1B
Features & Functions
Features
Fanless CPU and system cooling, natural convection-based passive cooling
Ethernet interface
RS485
RS232
Slot for SD card
CAN
USB Host
USB device
Portrait format
PLC function can be fitted by user
Ethernet interface
RS485
RS232
Slot for SD card
CAN
USB Host
USB device
Portrait format
PLC function can be fitted by user
Fitted with:
1 x RS485 (built-in interface)
1 x CAN (built-in interfaces)
Numeric keyboard
1 x PROFIBUS (built-in interface)
1 x USB device (built-in interface)
MPI interface
Alpha numeric keyboard
Message indication
Color display
1 x RS232 (built-in interface)
Recipes
1 x USB host 2.0 (built-in interface)
2 x Ethernet 10/100 Mbps (built-in interface)
Message system (incl. buffer and confirmation)
1 x CAN (built-in interfaces)
Numeric keyboard
1 x PROFIBUS (built-in interface)
1 x USB device (built-in interface)
MPI interface
Alpha numeric keyboard
Message indication
Color display
1 x RS232 (built-in interface)
Recipes
1 x USB host 2.0 (built-in interface)
2 x Ethernet 10/100 Mbps (built-in interface)
Message system (incl. buffer and confirmation)
Functions
Additional software components, loadable
Process default value (input) possible
Process value representation (output) possible
Process default value (input) possible
Process value representation (output) possible
General
Battery runtime
Back-up of real-time clock: BR 2330, non-replaceable (soldered)
Degree of protection
IP20, rear (according to EN 60529-1)
Degree of protection (front side)
IP65
NEMA 12
NEMA 12
Fuse type
Built-in fuse (not accessible)
Model
Metal enclosure and glass front in aluminum frame
Mounting method
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting
Flush mounting
Product category
XV-300
RoHs conformity
Yes
Software
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
Type
HMI (SPS function, retrofittable)
Voltage type
DC
Ambient conditions, mechanical
Shock resistance
15 g, 11 ms, Mechanical
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Cold to EN 60068-2-1
Damp heat, constant, to IEC 60068-2-3
Cold to EN 60068-2-1
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
Electro magnetic compatibility
Interference immunity
According to EN 61000-6-2
Radio interference class
Class A (EN 55011)
Voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms from rated voltage (24 V DC)
Electrical rating
Permissible voltage
19.2 - 30 V DC, absolute with ripple
35 V DC (for a duration of < 100 ms)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
35 V DC (for a duration of < 100 ms)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
Power consumption
Max 20.5 W
18 W
18 W
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
19.2 VDC
Supply voltage at DC - max
30 VDC
Communication
Communication interface
PROFIBUS-DP, not galvanically isolated, 9 pole SUB-D socket, UNC
Interfaces
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 device (not galvanically isolated)
USB 2.0 host (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
10/100 Mbps Ethernet connection
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 device (not galvanically isolated)
USB 2.0 host (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
10/100 Mbps Ethernet connection
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
Number of slots
1 (for SD-Card)
Protocol
PROFIBUS
MODBUS
TCP/IP
EtherNet/IP
CAN
Other bus systems
EtherCAT
MODBUS
TCP/IP
EtherNet/IP
CAN
Other bus systems
EtherCAT
Display
Display contrast ratio
500:1
Display size
211 x 158 mm
4:3
4:3
Display type
Color display, TFT
Laminated safety glass, anti-glare in aluminum frame
TFT
Laminated safety glass, anti-glare in aluminum frame
TFT
Number of colors of the display
65536
Resolution
640 x 480 px
Screen size (diagonal)
10.4 in
Touch technology
Infrared touch
Single-touch display
Laminated safety glass, non-reflective, Infrared touch protective screen
Single-touch display
Laminated safety glass, non-reflective, Infrared touch protective screen
System
Backup time
10 years, typ. (time at zero voltage)
Memory
SD card, Type: SDSC, SDHC (external memory)
Flash: 1 GByte SLC
NVRAM: 128kByte Retain
DRAM: 512 MByte RAM
Flash: 1 GByte SLC
NVRAM: 128kByte Retain
DRAM: 512 MByte RAM
Memory capacity
512,000 kByte
Operating system
Windows Embedded Compact 7 Pro
Processor
ARM Cortex-A9 800 MHz
Design verification
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Static heat dissipation, non-current-dependent Pvs
20.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
