Visualizza ingrandito

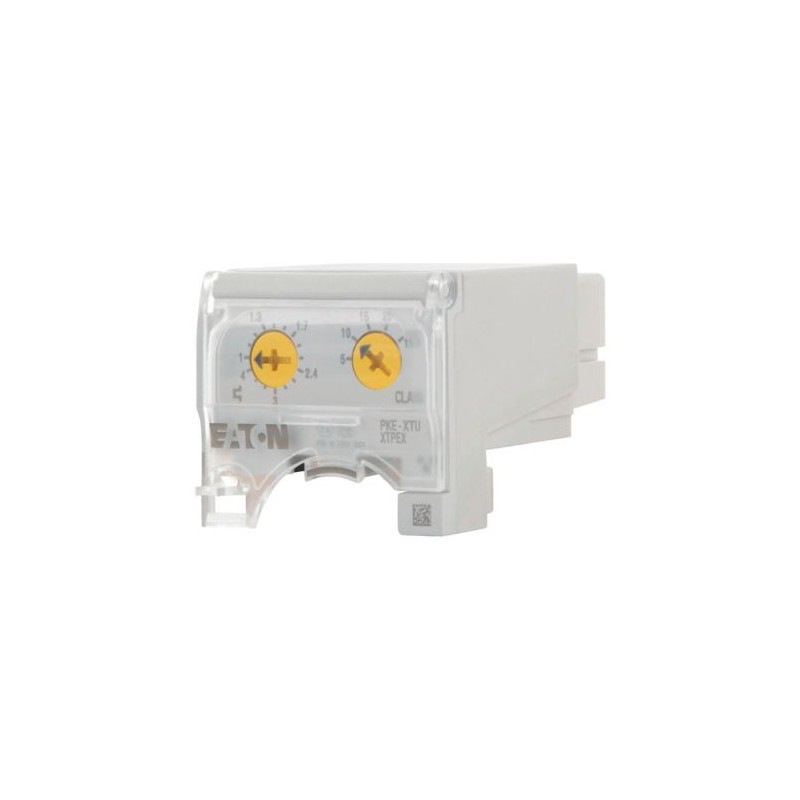

PKE-XTU-4 121724 Y7-121724 EATON ELECTRIC Unità di sgancio, 1-4A, standard, protezione motore
PKE-XTU-4
121724
Y7-121724
EATON-MOELLER
Unità di sgancio, 1-4A, standard, protezione motore
Blocco di sgancio 1-4 A Protezione elettronica del motore
Eaton Moeller® series PKE Trip block, 1 - 4 A, Motor protection, Connection to SmartWire-DT: no, For use with: PKE12 basic device, PKE32 basic device
Centralina elettronica per la protezione del motore secondo IEC60947-4-1 per il dispositivo base PKE12 / PKE32, protezione elettronica contro i sovraccarichi ad ampio raggio (4:1), protezione contro i guasti di fase e gli squilibri, classe di intervento regolabile. Dispositivo per il mercato mondiale, accreditamento ATEX
Apparecchi elettrici a bassa tensione > Blocco di intervento per interruttore di potenza
Interruttori di protezione motore elettronici
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series PKE Trip block
Catalog Number
121724
EAN
4015081195343
Product Length/Depth
41.6 mm
Product Height
64.2 mm
Product Width
45 mm
Product Weight
0.086 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-10
EN 60947-4-1
IEC 60947-4-1
UL 508
VDE
CSA Class No.: 3211-05
CSA File No.: 165628
IEC/EN 60947-4-1
CE
UL Category Control No.: NLRV
UL File No.: E36332
CSA-C22.2 No. 14-10
IEC/EN 60947
VDE 0660
CSA
UL
EN 60947-4-1
IEC 60947-4-1
UL 508
VDE
CSA Class No.: 3211-05
CSA File No.: 165628
IEC/EN 60947-4-1
CE
UL Category Control No.: NLRV
UL File No.: E36332
CSA-C22.2 No. 14-10
IEC/EN 60947
VDE 0660
CSA
UL
Catalog Notes
This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.
Model Code
PKE-XTU-4
Features & Functions
Features
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Functions
Motor protection
Overload release
Motor protection for heavy starting duty
Overload release
Motor protection for heavy starting duty
Number of poles
Three-pole
General
Current flow times - min
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
Note: Going below the minimum current flow time can cause overheating of the load (motor).
1000 (Class 20) AC-4 cycle operation, Main conducting paths
700 (Class 10) AC-4 cycle operation, Main conducting paths
900 (Class 15) AC-4 cycle operation, Main conducting paths
500 (Class 5) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
1000 (Class 20) AC-4 cycle operation, Main conducting paths
700 (Class 10) AC-4 cycle operation, Main conducting paths
900 (Class 15) AC-4 cycle operation, Main conducting paths
500 (Class 5) AC-4 cycle operation, Main conducting paths
Cut-out periods - min
≤ 500 ms, main conducting paths, AC-4 cycle operation
Degree of protection
Device: IP20
Terminals: IP00
Terminals: IP00
Operating frequency
60 Operations/h
Overload release current setting - min
1 A
Overload release current setting - max
4 A
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
-25 - 55 °C, Operating range
-25 - 55 °C, Operating range
Used with
PKE12 and PKE32 basic devices
Voltage type
Self powered
Ambient conditions, mechanical
Shock resistance
25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
4 A
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
4 A
Supply voltage at AC, 50 Hz - min
690 V
Supply voltage at AC, 50 Hz - max
690 V
Short-circuit rating
Short-circuit release
Delayed approx. 60 ms, Trip blocks
Trip block fixed 15.5 x Ir
± 20% tolerance, Trip blocks
Trip block fixed 15.5 x Ir
± 20% tolerance, Trip blocks
Switching capacity
Switching capacity at AC-3 (up to 690 V)
4 A
Magnet system
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Communication
Connection to SmartWire-DT
No
Contacts
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Design verification
Equipment heat dissipation, current-dependent Pvid
0.6 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.2 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tipo di protezione motore (EF008234) | sganciatore elettronico |
| numero di poli (EF001391) | 3 |
| corrente permanente nominale Iu (EF001389) | 4 A |
| campo di corrente dell'interruttore di sovraccarico (EF002336) | 1 A |
| funzione dell'attivatore di corto circuito (EF001413) | ritardato |
| con funzione di protezione dalle dispersioni verso terra (EF005601) | No |
| alimentazione elettrica esterna necessaria (EF003292) | No |
| larghezza (EF000008) | 45 mm |
| altezza (EF000040) | 64.2 mm |
| profondità (EF000049) | 41.6 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| PKE-XTU-4 Y7-121724 121724 ES_158241.pdf | 994 Kbytes |
|
