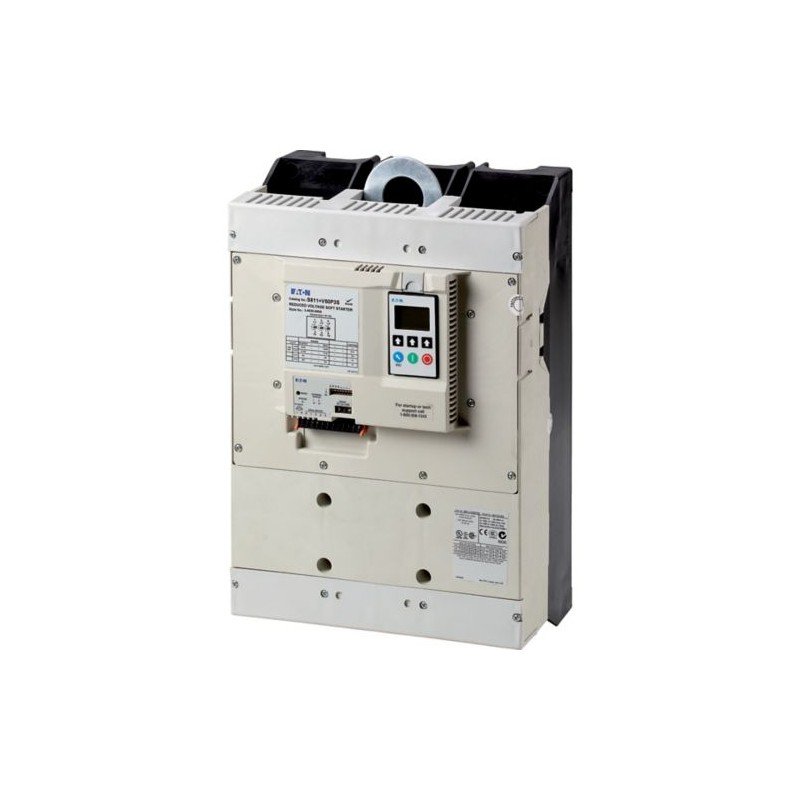

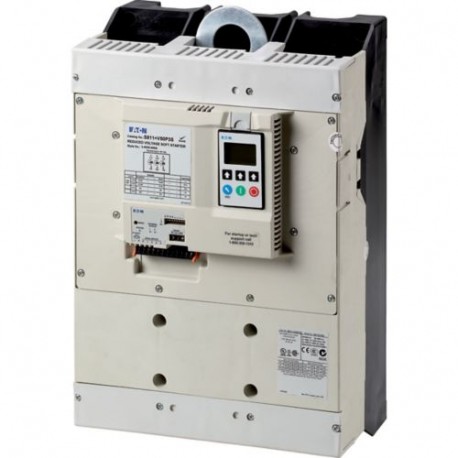

S811+V85V3S 169010 Y7-169010 EATON ELECTRIC Softstarter, a 3 fasi, 850A, Ue 575 690 VAC
S811+V85V3S
169010
Y7-169010
EATON-MOELLER
Softstarter, a 3 fasi, 850A, Ue= 575 - 690 VAC
S811+ Avviatore progressivo a 3 poli ad alte prestazioni 850 A 575-690 V AC
Eaton S811 Soft starter, 850 A, 200 - 690 V AC, Us= 24 V DC, with control unit and pump algorithm, for 690-V grids, Frame size V
Soft starter, Descrizione: Con contatti di derivazione interni, Funzione: Soft starter per carichi trifase, con centralina e algoritmo di pompaggio, per reti a 690 V, Tensione di rete (50/60 Hz): ULN= 200 - 690 V AC, Tensione di alimentazione: Us= 24 V DC, Tensione di controllo: UC= 24 V DC, Potenza nominale del motore assegnata (collegamento standard, in linea) a 400 V, 50 Hz: P= 450 kW, a 690 V, 50 Hz: P= 710 kW, a 460 V, 60 Hz: P= 600 CV, Corrente nominale di funzionamento AC-53: Ie= 850 A, Classe di avviamento: CLASSE 10 (sostituzione stella-triangolo), CLASSE 20 (servizio di avviamento pesante 3 x Ie per 45 s), CLASSE 30 (6 x Ie per 30 s), Tensione nominale di esercizio: Ue= 200 V, 230 V, 400 V, 480 V, 600 V, 690 V, Collegamento SmartWire-DT: no, Dimensioni del telaio: V, Informazioni per l'ordine: I morsetti componibili sono necessari per i morsetti per le dimensioni del telaio T, U e V -> Accessori, Norme: IEC/EN 60947-4-2, UL 508, CSA22.2-14-1995, GB14048
Apparecchi elettrici a bassa tensione > starter progressivo
Softstarter ad alte prestazioni
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton S811 Soft starter
Catalog Number
169010
EAN
4015081655038
Product Length/Depth
187.8 mm
Product Height
420.8 mm
Product Width
280.6 mm
Product Weight
41.4 kg
Certifications
CSA
UL 508
C-Tick
CCC
UL File No.: E202571
IEC/EN 60947-4-2
CE
CSA22.2-14-1995
UL
UL Category Control No.: NMFT
GB14048
UL 508
C-Tick
CCC
UL File No.: E202571
IEC/EN 60947-4-2
CE
CSA22.2-14-1995
UL
UL Category Control No.: NMFT
GB14048
Model Code
S811+V85V3S
Modelli & Funzioni
Fault memory
10 Faults
Fitted with:
Internal bypass
Motor overload protection
Internal bypass contacts
Display
Motor overload protection
Internal bypass contacts
Display
Functions
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of DC components for motors
Current limitation
Single direction
Potential isolation between power and control sections
Overload monitoring
Soft start function
Suppression of closing transients
Underload monitoring
Suppression of DC components for motors
Current limitation
Single direction
Potential isolation between power and control sections
Overload monitoring
Soft start function
Suppression of closing transients
Underload monitoring
Interfaces
Modbus RTU (built-in)
Informazioni generali
Class
Adjustable
Connection to SmartWire-DT
No
Degree of protection
IP00
NEMA Other
NEMA Other
Frame size
V
Mains voltage - min
200 V
Mains voltage - max
690 V
Mounting position
As required
Overvoltage category
II
Pollution degree
3
Radio interference class
Class A (EN 55011)
Rated impulse withstand voltage (Uimp)
4000 V
Shock resistance
15 g, Mechanical
Startup class
CLASS 20 (heavy starting duty 3 x Iₑ for 45 s)
CLASS 30 (6 x Iₑ for 30 s)
CLASS 10 (star-delta replacement)
CLASS 30 (6 x Iₑ for 30 s)
CLASS 10 (star-delta replacement)
Suitable for
Branch circuits, not as BCPD, (UL/CSA)
Type
Soft starter for three-phase loads, with control unit and pump algorithm, for 690-V grids
Voltage type
DC
Condizioni ambientali e climatiche
Altitude
Max. 2000 m
Above 2000 m with 0.5 % derating per 100 m
Above 2000 m with 0.5 % derating per 100 m
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-50 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Parti conduttive principali
Overload cycle
AC-53a: 4.0 - 32: 99 - 3
Rated operational current (Ie) at AC-53
850 A
Rated operational voltage (Ue) - min
200 V
Rated operational voltage (Ue) - max
690 V
Short-circuit protection rating
NZMN4-ME875, Type “1” coordination, Main conducting paths
Supply frequency
50/60 Hz, fLN, Main circuit
Voltage rating - max
690 V
Potenza nominale d'impiego (Motore)
Assigned motor power at 200/208 V, 60 Hz, 3-phase
200 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
600 HP
Assigned motor power at 600 V, 60 Hz, 3-phase
850 HP
Assigned motor power at 690 V, 60 Hz, 3-phase
850 HP
Assigned motor power in-delta at 690 V, 60 Hz
1300 HP
Rated operational power at 400 V, 50 Hz
450 kW
Rated operational power at 500 V, 50 Hz
560 kW
Rated operational power at 690 V, 50 Hz
710 kW
Sezioni di collegamento
Terminal capacity (flexible with ferrule)
2 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
6 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
6 x (120 - 240) mm², Main cables
Terminal capacity (solid)
4 x (70 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
Terminal capacity (solid/stranded AWG)
2 x (4 - 500 kcmil), Main cables
4 x (4 - 500 kcmil), Main cables
2 x (14 - 12), Control circuit cables
6 x (4 - 500 kcmil), Main cables
1 x (14 - 12), Control circuit cables
4 x (4 - 500 kcmil), Main cables
2 x (14 - 12), Control circuit cables
6 x (4 - 500 kcmil), Main cables
1 x (14 - 12), Control circuit cables
Terminal capacity (stranded)
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
Screwdriver size
0.6 x 3.5 mm, Terminal screws, Control circuit cables
Tightening torque
0.4 Nm, Screw terminals, Control circuit cables
Circuito di comando
Current consumption
1400 mA, Control circuit, Regulator supply
150 mA, Control circuit, Digital inputs, External 24 V
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
150 mA, Control circuit, Digital inputs, External 24 V
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
Drop-out time
100 ms, DC operated
Drop-out voltage
0 - 3 V, DC operated
Pick-up time
100 ms at DC
Pick-up voltage
21.6 - 26.4 V DC
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Ingresso / uscita
Input current
4 - 20 mA (Analog inputs)
Number of inputs
1 (current input)
Number of outputs
2 Relay Outputs (programmable)
Output voltage
120 V AC/DC (relay outputs)
Protection
Finger and back-of-hand proof, Protection against direct contact
Rated control voltage (Uc)
24 V DC (-10 %/+10 %)
24 V DC
24 V DC
Rated operational current (Ie) at AC-11
3 A
Funzione soft start
Application
Delay time
0 - 120 s, Soft start function, Ramp times
Kickstart
100% (Kickstart voltage)
Max. 2000 ms (Kickstart Duration)
Max. 2000 ms (Kickstart Duration)
Ramp/run-up time
360 s
Start voltage
Max. 85 %, Soft start function, Start voltage = turn-off voltage
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
850 A
Static heat dissipation, non-current-dependent Pvs
25 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| corrente d'esercizio nominale Ie a 40°C Tu (EF007039) | 850 A |
| tensione d'esercizio nominale Ue (EF002418) | 200 V |
| potenza nominale motore trifase, circuito standard, a 230 V (EF007053) | 200 kW |
| potenza nominale motore trifase, circuito standard, a 400 V (EF007054) | 450 kW |
| potenza nominale motore trifase, circuito a radice di 3, a 230 V (EF007055) | 200 kW |
| potenza nominale motore trifase, circuito a radice di 3, a 400 V (EF007056) | 750 kW |
| funzione (EF000030) | senso di rotazione unico |
| cavallottamento interno (EF009214) | Sì |
| con display (EF000458) | Sì |
| controllo della coppia (EF009215) | No |
| temperatura ambiente nominale senza derating (EF007074) | 50 °C |
| tensione di alimentazione pilota nominale AC 50 Hz (EF003978) | 0 V |
| tensione di alimentazione pilota nominale AC 60 Hz (EF003979) | 0 V |
| tensione di alimentazione pilota nominale DC (EF003980) | 24 V |
| tipo di tensione per l'azionamento (EF008242) | DC |
| protezione integrata contro il sovraccarico del motore (EF007297) | Sì |
| classe di intervento (EF006668) | regolabile |
| grado di protezione (IP) (EF005474) | IP00 |
| indice di protezione (NEMA) (EF011959) | altro |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| S811+V85V3S Y7-169010 169010 IT_169010.pdf | 124 Kbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
