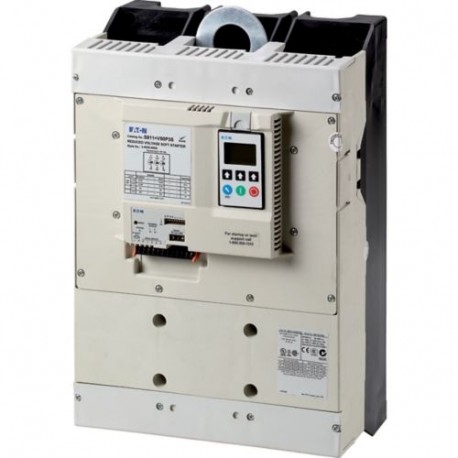

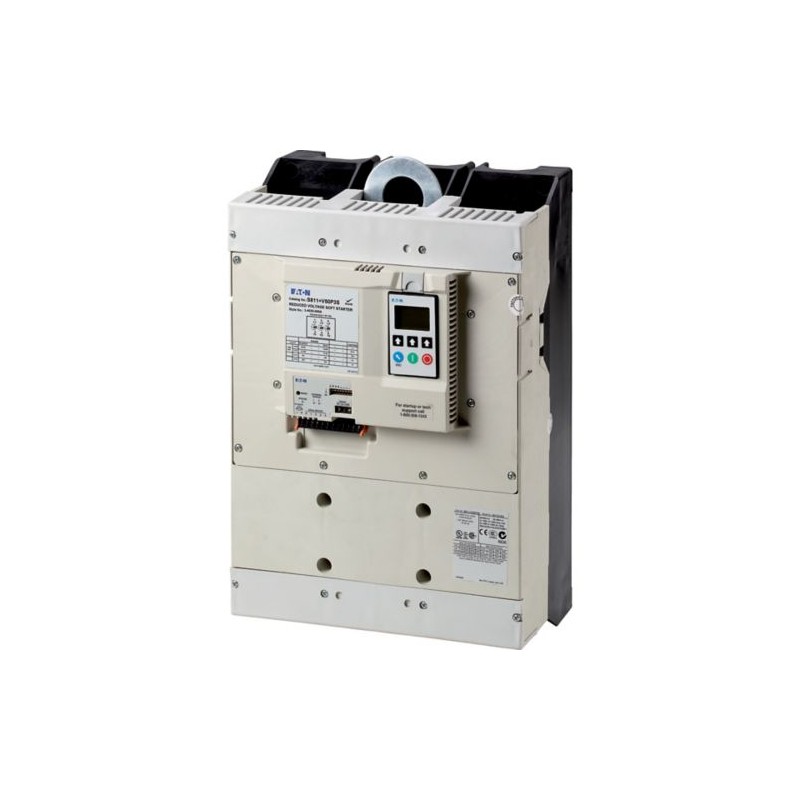

EATON - MOELLER S811+V85V3S 169010 Y7-169010 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

S811+V85V3S 169010 Y7-169010 EATON ELECTRIC Soft starter, 3p, 850A, Ue 575-690VAC

Referência: S811+V85V3S

Código: 169010

Número de catálogo: Y7-169010

Fabricante: EATON - MOELLER

Descrição:

Soft starter, 3p, 850A, Ue= 575-690VAC
S811+ 3-Polo de alto desempenho Soft Starter 850 A 575-690 V AC
Eaton S811 Soft starter, 850 A, 200 - 690 V AC, Us= 24 V DC, with control unit and pump algorithm, for 690-V grids, Frame size V
Partida suave, Descrição: Com contatos de ramificação interna, Função: Partida suave para cargas trifásicas, com unidade de controle e algoritmo de bomba, para redes de 690 V, Tensão de alimentação (50/60 Hz): ULN= 200 - 690 V AC, Tensão de alimentação: Us= 24 V DC, Tensão de controle: UC= 24 V DC, Potência nominal do motor atribuída (conexão padrão, em linha) a 400 V, 50 Hz: P= 450 kW, a 690 V, 50 Hz: P= 710 kW, a 460 V, 60 Hz: P= 600 hp, Corrente nominal de operação AC-53: Ie= 850 A, Classe de partida: CLASSE 10 (substituição do triângulo estrelado), CLASSE 20 (serviço de partida pesada 3 x Ie por 45 s), CLASSE 30 (6 x Ie por 30 s), Tensão nominal de operação: Ue= 200 V, 230 V, 400 V, 480 V, 600 V, 690 V, Conexão SmartWire-DT: não, Tamanho da estrutura: V, Informações sobre pedidos: Blocos de terminais são necessários para terminais para tamanhos de estrutura T, U e V -> Acessórios, Normas: IEC/EN 60947-4-2, UL 508, CSA22.2-14-1995, GB14048

Categorias:

  • Aparelhos elétricos de baixa tensão > Acionador de partida progressivo
  • EATON - MOELLER > Partidas Soft-Soft de Alto Desempenho

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 8.211,27 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton S811 Soft starter
Catalog Number
169010
EAN
4015081655038
Product Length/Depth
187.8 mm
Product Height
420.8 mm
Product Width
280.6 mm
Product Weight
41.4 kg
Certifications
CSA
UL 508
C-Tick
CCC
UL File No.: E202571
IEC/EN 60947-4-2
CE
CSA22.2-14-1995
UL
UL Category Control No.: NMFT
GB14048
Model Code
S811+V85V3S

Especificações do produto

Type
Soft starter for three-phase loads, with control unit and pump algorithm, for 690-V grids
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Internal bypass
Motor overload protection
Internal bypass contacts
Display
Pollution degree
3
Class
Adjustable
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3
Connection to SmartWire-DT
No
Rated impulse withstand voltage (Uimp)
4000 V
Frame size
V
Altitude
Max. 2000 m
Above 2000 m with 0.5 % derating per 100 m
Number of inputs
1 (current input)
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-50 °C
Assigned motor power at 200/208 V, 60 Hz, 3-phase
200 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
600 HP
Assigned motor power at 600 V, 60 Hz, 3-phase
850 HP
Assigned motor power at 690 V, 60 Hz, 3-phase
850 HP
Assigned motor power in-delta at 690 V, 60 Hz
1300 HP
Equipment heat dissipation, current-dependent Pvid
25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Mains voltage - max
690 V
Mains voltage - min
200 V
Output voltage
120 V AC/DC (relay outputs)
Number of outputs
2 Relay Outputs (programmable)
Screwdriver size
0.6 x 3.5 mm, Terminal screws, Control circuit cables
Voltage type
DC
Rated operational voltage (Ue) - min
200 V
Rated power three-phase motor, inline, at 230 V
200 kW
Rated power three-phase motor, inline, at 400 V
450 kW
Rated power three-phase motor, inside delta, at 230 V
200 kW
Rated power three-phase motor, inside delta, at 400 V
750 kW
Static heat dissipation, non-current-dependent Pvs
25 W
Voltage rating - max
690 V
Application
Protection
Finger and back-of-hand proof, Protection against direct contact
Mounting position
As required
Input current
4 - 20 mA (Analog inputs)
Drop-out voltage
0 - 3 V, DC operated
Overvoltage category
II
Degree of protection
IP00
NEMA Other
Current consumption
1400 mA, Control circuit, Regulator supply
150 mA, Control circuit, Digital inputs, External 24 V
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
Functions
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of DC components for motors
Current limitation
Single direction
Potential isolation between power and control sections
Overload monitoring
Soft start function
Suppression of closing transients
Underload monitoring
Delay time
0 - 120 s, Soft start function, Ramp times
Overload cycle
AC-53a: 4.0 - 32: 99 - 3
Drop-out time
100 ms, DC operated
Pick-up voltage
21.6 - 26.4 V DC
Radio interference class
Class A (EN 55011)
Fault memory
10 Faults
Pick-up time
100 ms at DC
Interfaces
Modbus RTU (built-in)
Kickstart
100% (Kickstart voltage)
Max. 2000 ms (Kickstart Duration)
Rated control voltage (Uc)
24 V DC (-10 %/+10 %)
24 V DC
Supply frequency
50/60 Hz, fLN, Main circuit
Terminal capacity (stranded)
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
24 V
Rated control supply voltage (Us) at DC - min
24 V
Rated operational current (Ie) at AC-11
3 A
Rated operational current (Ie) at AC-53
850 A
Rated operational current for specified heat dissipation (In)
850 A
Rated operational power at 400 V, 50 Hz
450 kW
Rated operational power at 500 V, 50 Hz
560 kW
Rated operational power at 690 V, 50 Hz
710 kW
Rated operational voltage (Ue) - max
690 V
Ramp/run-up time
360 s
Shock resistance
15 g, Mechanical
Suitable for
Branch circuits, not as BCPD, (UL/CSA)
Tightening torque
0.4 Nm, Screw terminals, Control circuit cables
Short-circuit protection rating
NZMN4-ME875, Type “1” coordination, Main conducting paths
Start voltage
Max. 85 %, Soft start function, Start voltage = turn-off voltage
Startup class
CLASS 20 (heavy starting duty 3 x Iₑ for 45 s)
CLASS 30 (6 x Iₑ for 30 s)
CLASS 10 (star-delta replacement)
Terminal capacity (flexible with ferrule)
2 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
6 x (120 - 240) mm², Main cables
Terminal capacity (solid)
4 x (70 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
Terminal capacity (solid/stranded AWG)
2 x (4 - 500 kcmil), Main cables
4 x (4 - 500 kcmil), Main cables
2 x (14 - 12), Control circuit cables
6 x (4 - 500 kcmil), Main cables
1 x (14 - 12), Control circuit cables

ETIM for 169010 Componentes industriais para Baixa Tensão (EC000640)

Nome da característicaCorrente nominal de operação Ie a 40° C Tu (EF007039)
Valor da característica850 A
Nome da característicaTensão nominal de operação Ue (EF002418)
Valor da característica200 V
Nome da característicaMotor trifásico de potência nominal, em linha, a 230 V (EF007053)
Valor da característica200 kW
Nome da característicaMotor trifásico de potência nominal, em linha, a 400 V (EF007054)
Valor da característica450 kW
Nome da característicaMotor trifásico de potência nominal, triângulo interno, a 230 V (EF007055)
Valor da característica200 kW
Nome da característicaMotor trifásico com potência nominal, triângulo interno, a 400 V (EF007056)
Valor da característica750 kW
Nome da característicaFunção (EF000030)
Valor da característicaDireção única
Nome da característicaBypass interno (EF009214)
Valor da característicaSim
Nome da característicaCom display (EF000458)
Valor da característicaSim
Nome da característicaControlo de torque (EF009215)
Valor da característicaNão
Nome da característicaTemperatura ambiente avaliada sem redução (EF007074)
Valor da característica50 °C
Nome da característicaTensão de alimentação de corrente nominal de 50 Hz AC (EF003978)
Valor da característica0 V
Nome da característicaTensão de alimentação de corrente nominal de 60 Hz CA (EF003979)
Valor da característica0 V
Nome da característicaTensão de alimentação de corrente nominal DC (EF003980)
Valor da característica24 V
Nome da característicaTipo de tensão para atuação (EF008242)
Valor da característicaDC
Nome da característicaProteção integrada contra sobrecarga do motor (EF007297)
Valor da característicaSim
Nome da característicaClasse de engate/gatilho (EF006668)
Valor da característicaAjustável
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP00
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característicaOutro
