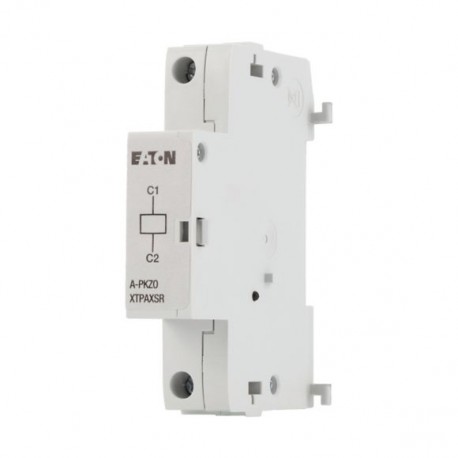

A-PKZ0(110VDC) 073203 Y7-73203 EATON ELECTRIC Sganciatore a lancio di corrente, 110VDC
A-PKZ0(110VDC)
073203
Y7-73203
EATON-MOELLER
Sganciatore a lancio di corrente, 110VDC
Bobina di grilletto; Derivazione; 110 V CC
Eaton Moeller® series A-PKZ0 Shunt release (for power circuit breaker), 110 V DC, Standard voltage, DC, Screw terminals, For use with: Shunt release PKZ0(4), PKE
Sganciatore di bypass con morsetti a vite, per interruttore automatico PKZ(M)0
Apparecchi elettrici a bassa tensione > Sganciatore (per interruttore di potenza)
Motor Protective Switches
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series PKZ Shunt release
Catalog Number
073203
EAN
4015080732037
Product Length/Depth
68 mm
Product Height
90 mm
Product Width
24 mm
Product Weight
0.126 kg
Certifications
CE
UL Category Control No.: NLRV
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 14
CSA File No.: 165628
UL 508
UL File No.: E36332
IEC/EN 60947-4-1
UL
UL Category Control No.: NLRV
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 14
CSA File No.: 165628
UL 508
UL File No.: E36332
IEC/EN 60947-4-1
UL
Model Code
A-PKZ0(110VDC)
Features & Functions
Electric connection type
Screw connection
General
Product category
Accessories
Suitable for
Motor safety switch
Used with
Motor protective circuit-breaker
Voltage type
DC
Ambient conditions, mechanical
Mounting position
Can be fitted to left side of the motor protection switch
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Terminal capacities
Terminal capacity (solid/flexible with ferrule)
2 x (0.75 - 2.5) mm²
1 x (0.75 - 2.5) mm²
1 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
1 x (18 - 14)
2 x (18 - 14)
2 x (18 - 14)
Electrical rating
Operational voltage
0.7- 1.1 x Us (DC)
Short-time operation 5 s
0.7 - 1.1 x Us (AC)
Short-time operation 5 s
0.7 - 1.1 x Us (AC)
Rated operational voltage (Ue) at AC - min
42 V
Rated operational voltage (Ue) at AC - max
480 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
250 V
Magnet system
Operational voltage
0.7- 1.1 x Us (DC)
Short-time operation 5 s
0.7 - 1.1 x Us (AC)
Short-time operation 5 s
0.7 - 1.1 x Us (AC)
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
110 V
Rated control supply voltage (Us) at DC - max
110 V
Contacts
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Power consumption
Power consumption (pick-up) at DC
3 W
Power consumption (sealing) at DC
0.5 W
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione pilota nominale AC 50 Hz (EF003978) | 0 V |
| tensione di alimentazione pilota nominale AC 60 Hz (EF003979) | 0 V |
| tensione di alimentazione pilota nominale DC (EF003980) | 110 V |
| tipo di tensione per l'azionamento (EF008242) | DC |
| valore iniziale campo di regolaz. dell'attivatore corto circuito non ritardato (EF008187) | 0 A |
| valore finale campo di regolaz. dell'attivatore di corto circuito non ritardato (EF008188) | 0 A |
| assorbimento di potenza (EF000346) | 0.5 W |
| tipo di collegamento elettrico (EF003961) | raccordo a vite |
| numero di contatti di chiusura (EF008256) | 0 |
| numero di contatti di riposo (EF008255) | 0 |
| numero di contatti invertitori (EF008257) | 0 |
| adatto per disgiuntore (EF005863) | No |
| adatto per interruttore di carico (EF001543) | No |
| adatto per salvamotore (EF005826) | Sì |
| adatto per relè di sovraccarico (EF001545) | No |
