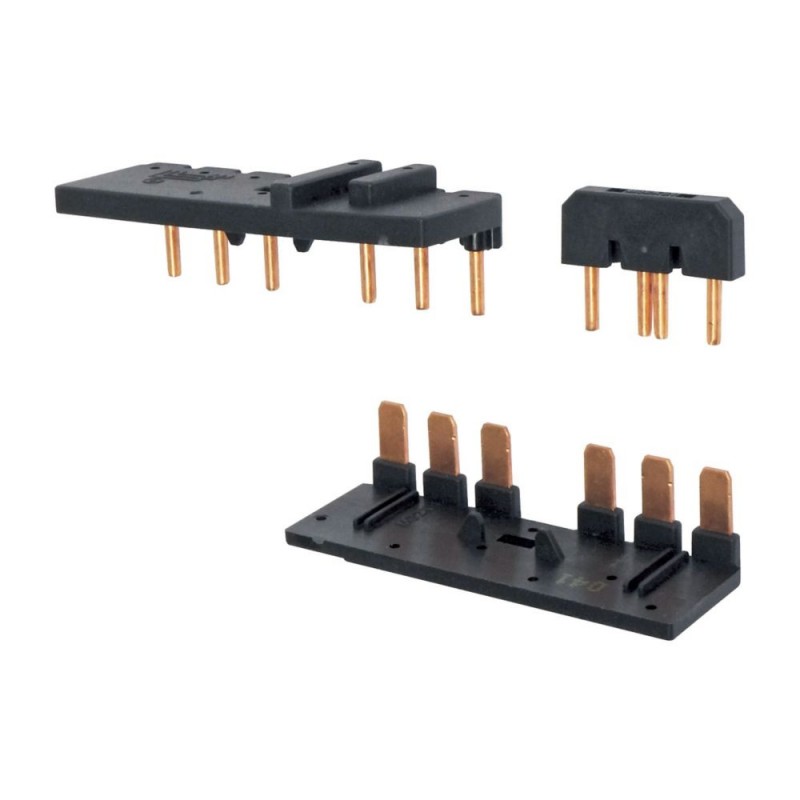

DILM32-XSL 283131 Y7-283131 EATON ELECTRIC Set di cablaggio, stella-triangolo, per DILM17-32 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILM32-XSL 283131 Y7-283131 EATON ELECTRIC Set di cablaggio, stella-triangolo, per DILM17-32

DILM32-XSL

283131

Y7-283131

EATON-MOELLER

Set di cablaggio, stella-triangolo, per DILM17-32

Set di cablaggio stella/triangolo per contattori DILM17... 38

Eaton Moeller® series DILM Wiring kit, Main current wiring for star-delta combination, For use with DILM17, DILM25, DILM32

Cablaggio rapido e affidabile tramite ponticelli per cavi tripolari terminati.

Maggiori dettagli


Apparecchi elettrici a bassa tensione > set di cablaggio per breaker

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $28.45
Prezzo unitario: $28.45
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM wiring kit
Catalog Number
283131
EAN
4015082831318
Product Length/Depth
81 mm
Product Height
29 mm
Product Width
35 mm
Product Weight
0.062 kg
Certifications
IEC/EN 60947-4-1
UL
CSA
UL 508
UL Category Control No.: NLRV
CSA Class No.: 3211-04
UL File No.: E36332
CE
CSA File No.: 012528
CSA-C22.2 No. 14-05
Model Code
DILM32-XSL

Caratteristiche e Funzioni

Fitted with:
Star-point bridge

Informazioni generali

Model
Star-delta switching
Product category
Accessories

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
3.3 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.1 W
Rated operational current for specified heat dissipation (In)
45 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 283131 Apparecchi elettrici a bassa tensione (EC002050)
Caratteristica Valore
adatto per numero di poli (EF001589) 3
versione (EF000010) circuito stella-triangolo

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM32-XSL Y7-283131 283131 ES_283109.pdf 639 Kbytes DILM32-XSL Y7-283131 283131 ES_283109.pdf
