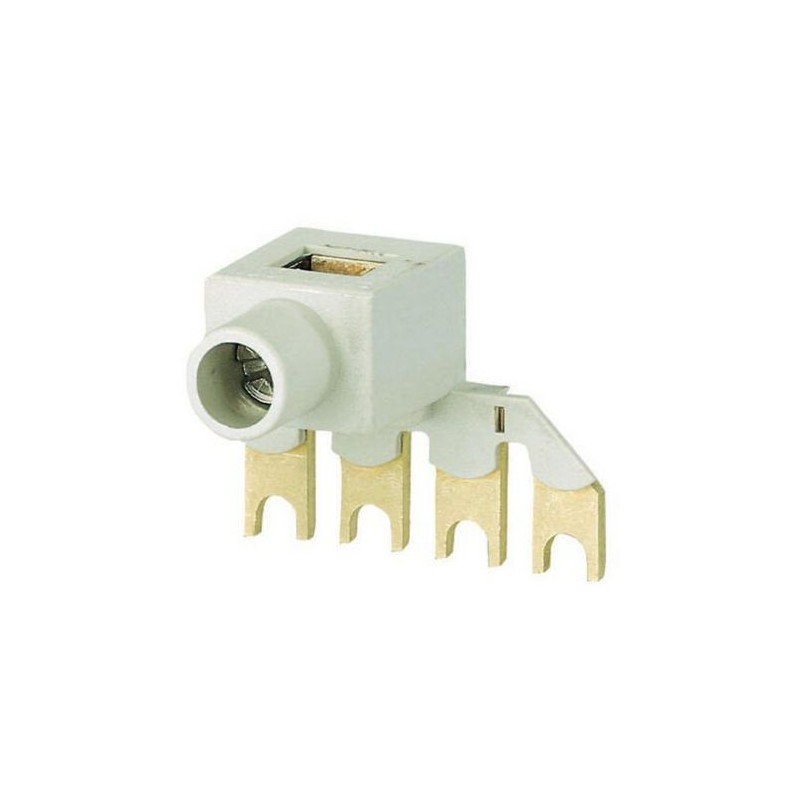

DILM12-XP1 281193 Y7-281193 EATON ELECTRIC Connettore in parallelo, per DILM7-12/MP20 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

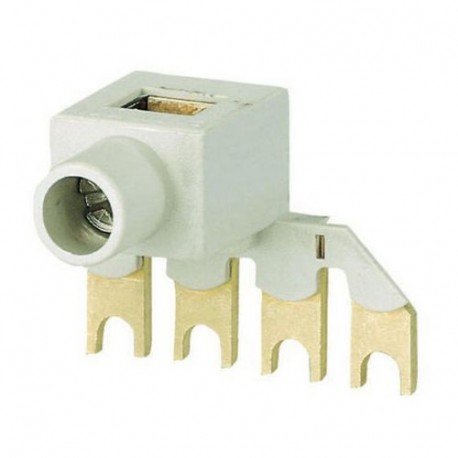

DILM12-XP1 281193 Y7-281193 EATON ELECTRIC Connettore in parallelo, per DILM7-12/MP20

DILM12-XP1

281193

Y7-281193

EATON-MOELLER

5

Connettore in parallelo, per DILM7-12/MP20

Set di giunti paralleli per contattori DILM7... 15, DILMP20

Eaton Moeller® series DILM Paralleling link, for DILM7-12/MP20

Collegamento parallelo, Gamma prodotti: Accessori, Accessori di cablaggio, Utilizzabile con: DILM7 - DILM15, DILMP20

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $61.00
Prezzo unitario: $12.20
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM paralleling link
Catalog Number
281193
EAN
4015082811938
Product Length/Depth
34 mm
Product Height
30 mm
Product Width
32 mm
Product Weight
0.039 kg
Certifications
CSA File No.: 012528
IEC/EN 60947-4-1
UL Category Control No.: NLDX
CSA
CSA-C22.2 No. 14-05
CE
UL 508
UL File No.: E29096
CSA Class No.: 3211-03
UL
Model Code
DILM12-XP1

Informazioni generali

Accessory/spare part type
Connecting bridge
Product category
Accessories
Protection
Protected against accidental contact in accordance to VDE 0106 part 100

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Sezioni di collegamento

Terminal capacity
1 - 16 mm², solid
1 x (0.5 - 25) mm², stranded
2 x (0.5 - 16) mm², flexible with ferrule
6 x 9 x 0.8 mm Number of segments x width x thickness, Flat conductor
2 x (0.5 - 16) mm², stranded
1 x (0.5 - 25) mm², flexible with ferrule
Screwdriver size
2, Terminal screw, Pozidriv screwdriver
Tightening torque
4 Nm, Screw terminal

Corrente convenzionale termica

Conventional thermal current ith of main contacts (1-pole, open)
50 A

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0.2 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.2 W
Rated operational current for specified heat dissipation (In)
50 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 281193 Apparecchi elettrici a bassa tensione (EC002498)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) ponte di connessione
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No
