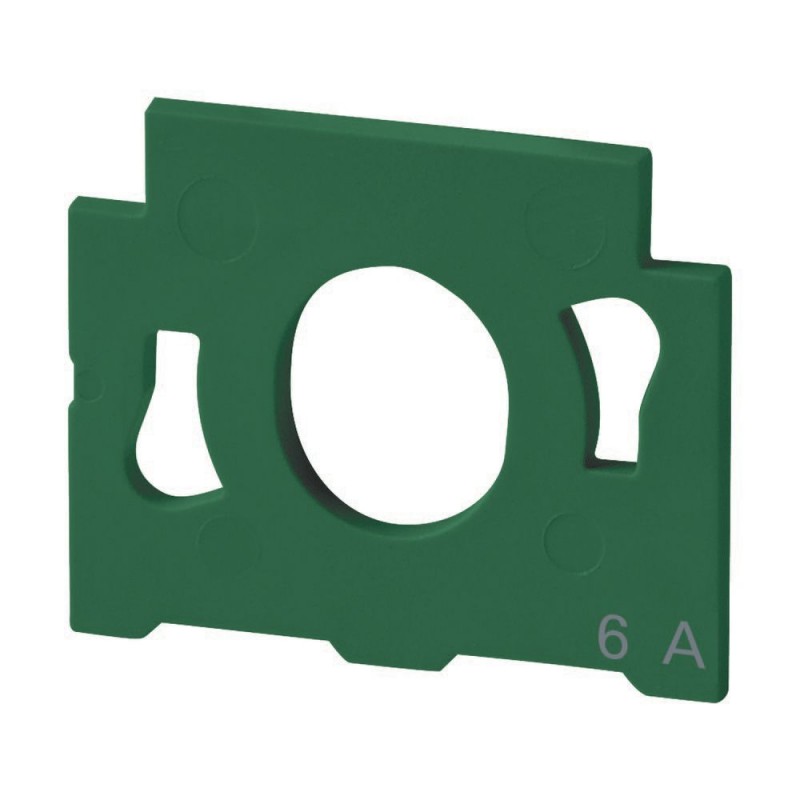

LPC6-ADAPTER 1713622 Y8-1713622 EATON ELECTRIC Perno di fissaggio 6A
LPC6-ADAPTER
1713622
Y8-1713622
EATON-MOELLER
10
Perno di fissaggio 6A
Eaton LPC Fixing rating plug 6A
sezionatore fusibili 6A, D II, piastra adattatore
disgiuntori, fusibili, apparecchi per l’installazione in serie/su parete > Adattatore a vite tipo D
Basi di fusibili industriali
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
| Product Name | Eaton LPC Accessory Adapter plate |
| Catalog Number | 1713622 |
| EAN | 8711426639584 |
| Product Length/Depth | 95 mm |
| Product Height | 2 mm |
| Product Width | 76 mm |
| Product Weight | 1.724 g |
| Compliances | CE |
| Model Code | LPC6-ADAPTER |
Features & Functions
| Color | Green |
General information
| Type | Adapter plate |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 50 °C |
Electrical rating
| Rated operational current (Ie) - max | 6 A |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Not applicable. |
| 10.12 Electromagnetic compatibility | Not applicable. |
| 10.13 Mechanical function | Not applicable. |
| Caratteristica | Valore |
|---|---|
| grandezza di costruzione (EF002566) | DII |
| corrente nominale (EF000227) | 6 A |
| codice colore (EF000931) | verde |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| LPC6-ADAPTER Y8-1713622 1713622 ES_1713607.pdf | 2 Mbytes |
|
