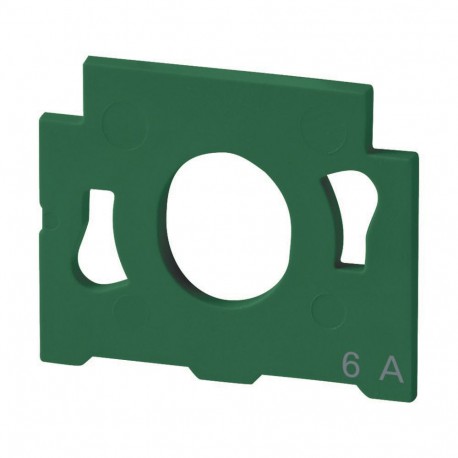

LPC6-ADAPTER 1713622 Y8-1713622 EATON ELECTRIC Fixing pin 6A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LPC6-ADAPTER 1713622 Y8-1713622 EATON ELECTRIC Fixing pin 6A

LPC6-ADAPTER

1713622

Y8-1713622

EATON-MOELLER

10

Fixing pin 6A

Eaton LPC Fixing rating plug 6A

fuse switch-disconnector 6A, D II, adapter plate

More details


Circuit breakers and fuses > D-system screw adapter

Industrial Fuse Bases

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $22.01
Unit price: $2.20
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton LPC Accessory Adapter plate
Catalog Number
1713622
Model Code
LPC6-ADAPTER
EAN
8711426639584
Product Length/Depth
95 mm
Product Height
2 mm
Product Width
76 mm
Product Weight
1.724 g
Compliances
CE

Features & Functions

Color
Green

General

Type
Adapter plate

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Electrical rating

Rated operational current (Ie) - max
6 A

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.

ETIM for 1713622 Circuit breakers and fuses (EC000085)
Feature Name Feature Value
Construction size (EF002566) DII
Rated current (EF000227) 6 A
Colour code (EF000931) Green

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LPC6-ADAPTER Y8-1713622 1713622 ES_1713607.pdf 2 Mbytes LPC6-ADAPTER Y8-1713622 1713622 ES_1713607.pdf
