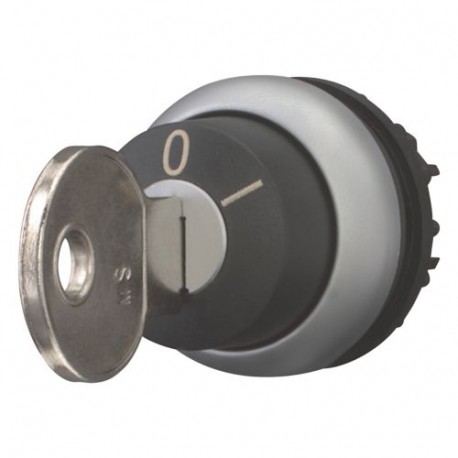

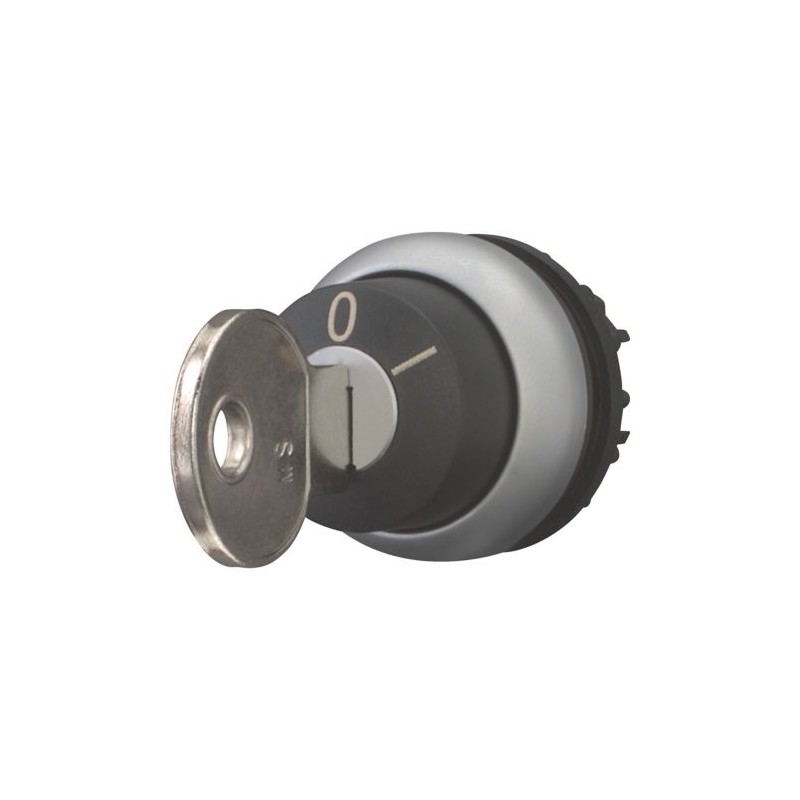

M22-WRS-MS4 111783 Y7-111783 EATON ELECTRIC Pulsante a chiave, 2 posizioni, permanente
M22-WRS-MS4
111783
Y7-111783
EATON-MOELLER
Pulsante a chiave, 2 posizioni, permanente
Selettore Chiave Interblocco 2 Posizioni Chiave MS4 Anello Titanio
Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS4, Key withdrawable: 0, I, Bezel: titanium
Apparecchi elettrici a bassa tensione > Switch da quadro
Ausili di controllo e segnalazione
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111783
EAN
4015081113330
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 94-91
UL 508
VDE
CSA File No.: 012528
UL Category Control No.: NKCR
UL File No.: E29184
VDE 0660
IEC/EN 60947
IEC/EN 60947-5
CE
CSA
CSA Class No.: 3211-03
UL
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 94-91
UL 508
VDE
CSA File No.: 012528
UL Category Control No.: NKCR
UL File No.: E29184
VDE 0660
IEC/EN 60947
IEC/EN 60947-5
CE
CSA
CSA Class No.: 3211-03
UL
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
Model Code
M22-WRS-MS4
Features & Functions
Bezel color
Titanium
Bezel material
Plastic
Color
Black
Design
Key operated
Fitted with:
Front ring
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Key code
MS4
General
Accessories
1 key included with supplied equipment.
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
100 Operations/h
Operating torque
0.5 Nm
Product category
RMQ-Titan
Switching angle
60 °
Type
Key-operated button
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Communication
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Yes
Actuator
Actuator color
Black
Actuator function
Maintained
Switching function latching
Key withdrawable in position 0
Key withdrawable in position 1
Switching function latching
Key withdrawable in position 0
Key withdrawable in position 1
Actuator type
Key
Number of switch positions
2
Contacts
Force for positive opening - min
0 N
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| numero di posizioni di commutazione (EF000231) | 2 |
| tipo di elemento di azionamento (EF006976) | chiave |
| adatto per illuminazione (EF001142) | No |
| colore dell'elemento di azionamento (EF007167) | nero |
| colore della calotta del segnalatore luminoso (EF007165) | altro |
| tipo di lente (EF006253) | tondo |
| diametro del foro (EF000079) | 22.5 mm |
| larghezza dell'apertura (EF004565) | 0 mm |
| altezza dell'apertura (EF004778) | 0 mm |
| funzione di commutazione a bloccaggio (EF007447) | Sì |
| a impulso (EF001407) | No |
| con anello frontale (EF006014) | Sì |
| materiale dell'anello frontale (EF005972) | materiale sintetico |
| colore dell'anello frontale (EF002429) | titanio |
| grado di protezione (IP), lato frontale (EF003118) | IP66 |
| indice di protezione (NEMA) (EF011959) | 4X, 13 |
