> EATON - MOELLER>Ausili di controllo e segnalazione >M22-XPV60-Y-24 121477 Y7-121477 ELECTRIC Anello luminoso, LED, D 60mm, 24VAC/DC, giallo
ANUNCIAR
Prodotto precedente Prodotto successivo

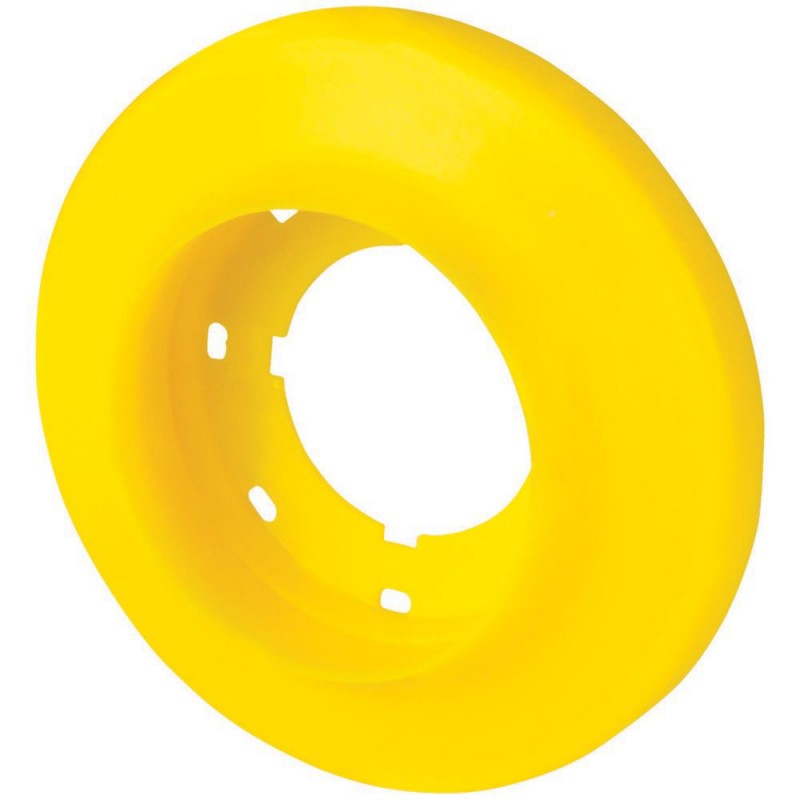

M22-XPV60-Y-24 121477 Y7-121477 EATON ELECTRIC Anello luminoso, LED, D 60mm, 24VAC/DC, giallo Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22-XPV60-Y-24 121477 Y7-121477 EATON ELECTRIC Anello luminoso, LED, D 60mm, 24VAC/DC, giallo

M22-XPV60-Y-24

121477

Y7-121477

EATON-MOELLER

Anello luminoso, LED, D=60mm, 24VAC/DC, giallo

Anello luminoso a LED D=60 mm 24 V AC/DC Giallo

Eaton Moeller® series M22 Illuminated ring, LED, D=60mm, 24VAC/DC, yellow

Maggiore visibilità per il giorno e la notte. Adatto a tutti i pulsanti di arresto di emergenza RMQ-Titan.

Maggiori dettagli


Apparecchi elettrici a bassa tensione > accessori per apparecchi di comando

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $23.78
Prezzo unitario: $23.78
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Accessory LED luminous ring
Catalog Number
121477
EAN
4015081192953
Product Length/Depth
25 mm
Product Height
60 mm
Product Width
60 mm
Product Weight
0.035 kg
Compliances
CE Marked
Certifications
EN 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
IEC 60947
UL 508
UL File No.: E340491
IEC/EN 60947-5
UL Category Control No.: NISD
CSA-C22.2 No. 14-05
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CE
CSA File No.: 012528
CSA
Catalog Notes
Three groups of 4 LEDs each (series-connected), can be actuated separately (e.g. for continuous light)
Model Code
M22-XPV60-Y-24

Features & Functions

Color
Yellow

General

Accessory/spare part type
Accessory
Degree of protection
IP66
IP69
Type
LED

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Electrical rating

Rated operational voltage
24 V AC/DC

Communication

Connection to SmartWire-DT
No

Actuator

Actuator diameter
60 mm

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.9 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 121477 Apparecchi elettrici a bassa tensione (EC002024)
Caratteristica Valore
tipo di accessori/pezzi di ricambio elettrici (EF005722) altro
tipo di accessori/pezzi di ricambio meccanici (EF005994) altro
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-XPV60-Y-24 Y7-121477 121477 ES_121476.pdf 948 Kbytes M22-XPV60-Y-24 Y7-121477 121477 ES_121476.pdf
