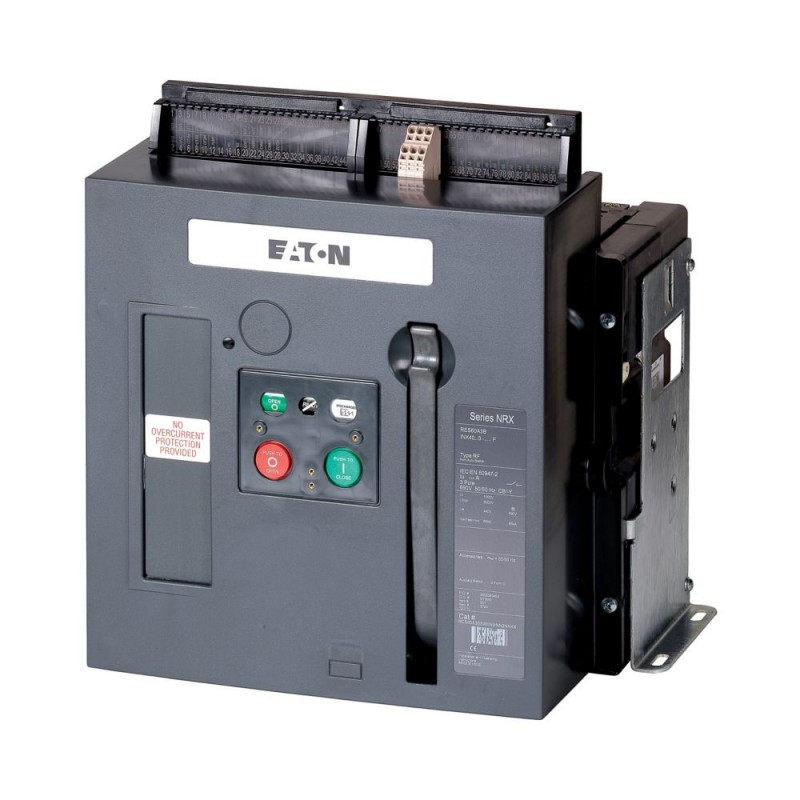

INX40B3-20F-1 184044 Y7-184044 EATON ELECTRIC Switch-disconnector, 3 pole, 2000 A, without protection, IEC, ..
INX40B3-20F-1
184044
Y7-184044
EATON-MOELLER
Switch-disconnector, 3 pole, 2000 A, without protection, IEC, Fixed
Sezionatore,3P,2000A,fisso
Eaton Moeller series IZMX/INX - ACB. Switch, disconnector, 3 pole, 2000A, without protection, IEC, Fixed, 40B3, 20F, 1
Sezionatori aperti, Sezionatori, Numero di poli 3 poli, Corrente nominale = corrente nominale ininterrotta 2000 A, Funzione di protezione non protetta, Norma IEC/approvazione, Tipo di installazione Fisso
Apparecchi elettrici a bassa tensione > Sezionatore
Automatic Circuit Breakers Open Frame
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series IZMX/INX switch-disconnector
Catalog Number
184044
EAN
4015081795833
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
45 kg
Compliances
IEC/EN 60947
IEC
RoHS conform
IEC
RoHS conform
Model Code
INX40B3-20F-1
Delivery program
Type
Frame
INX40
Number of poles
Three-pole
Amperage Rating
2000 A
Release system
Without releases
Technical data - electrical
Voltage rating at AC
690 V AC
Rated operating voltage (Ue) - min
690 V
Rated operating voltage (Ue) - max
690 V
Rated operating voltage (Ue) at AC - max
690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp)
12 kV AC
Rated uninterrupted current (Iu)
2000 A
Rated uninterrupted current (Iu) at 50°C
2000 A
Rated uninterrupted current (Iu) at 60°C
2000 A
Rated uninterrupted current (Iu) at 70°C
2000 A
Rated conditional short-circuit current (Iq)
144 kA
Rated permanent current at AC-23, 400 V
2000 A
Rated short-time withstand current (Icw)
66 kA
Rated short-time withstand current (t = 1 s)
66 kA
Rated short-time withstand current at 50/60 Hz (t = 3 s)
53 kA
Rated short-circuit making capacity up to 440 V, 50/60 Hz
145 kA
Rated short-circuit making capacity up to 690 V, 50/60 Hz
145 kA
Rated operating power at AC-3, 400 V
0 kW
Rated operating power at AC-23, 400 V
0 kW
Switching power at 400 V
0 kW
Closing delay via spring release
35 ms
Electrical connection type of main circuit
Rail connection
Number of standard mechanical operations per hour - max
60
Utilization category
B
Overvoltage category
III
Pollution degree
3
Direction of incoming supply
As required
Lifespan, electrical
8000 operations (switching capacity)
16000 operations (switching cycles ON/OFF, with maintenance)
16000 operations (switching cycles ON/OFF, with maintenance)
Technical data - mechanical
Device construction
Built-in device fixed built-in technique
Mounting Method
Fixed
Width in number of modular spacings
24
Degree of protection
IP55 with protective cover
IP31 with door seals
IP31 with door seals
Degree of protection (front side)
IP31
Protection
None
Number of auxiliary contacts (change-over contacts)
2
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Number of switches
1
Position of connection for main current circuit
Back side
Weight of fixed mounting version (3-pole)
43 kg
Actuator color
Green
Actuator type
Push button
Terminal capacity (copper bar)
80 mm x 10 mm (2x) for fixed mounting (black)
Lifespan, mechanical
20000 operations (switching capacity, with maintenance)
10000 switching cycles (ON/OFF)
10000 switching cycles (ON/OFF)
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
2000 A
Equipment heat dissipation, current-dependent
220 W
Heat dissipation at rated current with fixed mounting
220 W
Ambient operating temperature details
-20 °C - 70 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features
Version as main switch
Motor drive optional
Version as maintenance-/service switch
Motor drive optional
Version as maintenance-/service switch
Functions
Interlockable
Voltage release optional
Voltage release optional
Special features
- Optionally fittable by user with comprehensive accessories
- Terminal capacity hint: These are values used in separate switchgear. The actual values will depend on the temperature around the circuit breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Suitable for
Ground mounting
Intermediate mounting
Distribution board installation
Intermediate mounting
Distribution board installation
Used with
Open switch-disconnector
Air circuit breakers/switch-disconnector
Air circuit breakers/switch-disconnector
| Caratteristica | Valore |
|---|---|
| versione interruttore principale (EF006981) | Sì |
| versione interruttore di manutenzione/riparazione (EF006986) | Sì |
| versione interruttore di sicurezza (EF006985) | No |
| versione dispositivo di arresto d'emergenza (EF006959) | No |
| versione invertitore (EF009408) | No |
| numero di interruttori (EF005586) | 1 |
| max. tensione d'esercizio nominale Ue per AC (EF007355) | 690 V |
| tensione d'esercizio nominale (EF001435) | 690 V |
| corrente permanente nominale Iu (EF001389) | 2000 A |
| corrente nominale permanente per AC-23, 400V (EF011777) | 2000 A |
| corrente nominale permanente per AC-21, 400 V (EF009165) | 0 A |
| potenza d'esercizio nominale per AC-3, 400 V (EF001364) | 0 kW |
| resistenza a corrente di breve durata Icw (EF007050) | 66 kA |
| potenza d'esercizio nominale per AC-23, 400V (EF007027) | 0 kW |
| potenza di interruzione a 400 V (EF009166) | 0 kW |
| corrente di corto circuito nominale condizionale Iq (EF001444) | 144 kA |
| numero di poli (EF001391) | 3 |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 0 |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 0 |
| numero di contatti ausiliari, invertitori (EF003531) | 2 |
| azionamento a motore opzionale (EF007386) | Sì |
| azionamento a motore integrato (EF006697) | No |
| sganciatore di tensione opzionale (EF007491) | Sì |
| tipologia costruttiva dell'apparecchio (EF008240) | apparecchio da incasso, tecnica a installazione fissa |
| adatto per fissaggio frontale a 4 fori (EF007247) | No |
| adatto per fissaggio frontale centrale (EF007248) | No |
| adatto per montaggio distributore (EF007262) | Sì |
| adatto per costruzione intermedia (EF007264) | Sì |
| colore dell'elemento di azionamento (EF007167) | verde |
| tipo di elemento di azionamento (EF006976) | contatto a pressione |
| bloccabile (EF006281) | Sì |
| tipo di collegamento circuito elettrico principale (EF006819) | collegamento su guida |
| con cablaggio premontato (EF016444) | No |
| grado di protezione (IP), lato frontale (EF003118) | IP31 |
| larghezza (EF000008) | 521 mm |
| altezza (EF000040) | 597 mm |
| profondità (EF000049) | 584 mm |
| numero di unità modulari (EF002950) | 24 |
