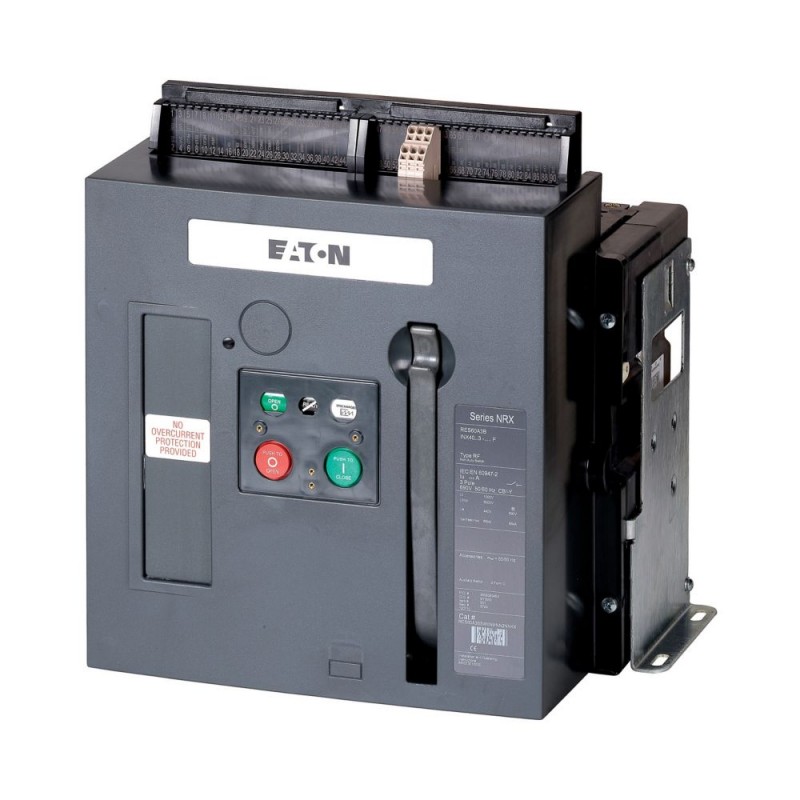

INX40B3-20F-1 184044 Y7-184044 EATON ELECTRIC Lasttrennschalter, 3-polig, 2000 A, ohne Schutz, IEC, Festeinb..
INX40B3-20F-1
184044
Y7-184044
EATON-MOELLER
Lasttrennschalter, 3-polig, 2000 A, ohne Schutz, IEC, Festeinbau
INX40B3-20F-1
Eaton Moeller series IZMX/INX - ACB. Switch, disconnector, 3 pole, 2000A, without protection, IEC, Fixed, 40B3, 20F, 1
Lasttrennschalter offen, Lasttrennschalter, Polzahl 3-polig, Bemessungsstrom = Bemessungsdauerstrom 2000 A, Schutzfunktion ohne Schutz, Norm/Zulassung IEC, Einbauart Fest
Niederspannungsschaltgeräte > Lasttrennschalter
Leistungsschalter IZM
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Related products
▲Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller series IZMX/INX switch-disconnector
Catalog Number
184044
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
45 kg
Compliances
IEC/EN 60947
IEC
RoHS conform
IEC
RoHS conform
EAN
4015081795833
Model Code
INX40B3-20F-1
Produktspezifikationen
Type
Special features
- Optionally fittable by user with comprehensive accessories
- Terminal capacity hint: These are values used in separate switchgear. The actual values will depend on the temperature around the circuit breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Amperage Rating
2000 A
Features
Version as main switch
Motor drive optional
Version as maintenance-/service switch
Motor drive optional
Version as maintenance-/service switch
Actuator color
Green
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
INX40
Pollution degree
3
Rated uninterrupted current (Iu)
2000 A
Used with
Open switch-disconnector
Air circuit breakers/switch-disconnector
Air circuit breakers/switch-disconnector
Mounting Method
Fixed
Equipment heat dissipation, current-dependent
220 W
Rated impulse withstand voltage (Uimp)
12 kV AC
Utilization category
B
Device construction
Built-in device fixed built-in technique
Rated short-time withstand current (Icw)
66 kA
Direction of incoming supply
As required
Electrical connection type of main circuit
Rail connection
Rated conditional short-circuit current (Iq)
144 kA
Actuator type
Push button
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Heat dissipation at rated current with fixed mounting
220 W
Number of auxiliary contacts (change-over contacts)
2
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Number of standard mechanical operations per hour - max
60
Rated insulation voltage (Ui)
1000 V
Lifespan, mechanical
20000 operations (switching capacity, with maintenance)
10000 switching cycles (ON/OFF)
10000 switching cycles (ON/OFF)
Overvoltage category
III
Switching power at 400 V
0 kW
Weight of fixed mounting version (3-pole)
43 kg
Ambient operating temperature details
-20 °C - 70 °C
Protection
None
Voltage rating at AC
690 V AC
Number of poles
Three-pole
Degree of protection
IP55 with protective cover
IP31 with door seals
IP31 with door seals
Closing delay via spring release
35 ms
Lifespan, electrical
8000 operations (switching capacity)
16000 operations (switching cycles ON/OFF, with maintenance)
16000 operations (switching cycles ON/OFF, with maintenance)
Degree of protection (front side)
IP31
Number of switches
1
Functions
Interlockable
Voltage release optional
Voltage release optional
Position of connection for main current circuit
Back side
Release system
Without releases
Suitable for
Ground mounting
Intermediate mounting
Distribution board installation
Intermediate mounting
Distribution board installation
Rated operating power at AC-23, 400 V
0 kW
Rated operating power at AC-3, 400 V
0 kW
Rated operating voltage (Ue) - max
690 V
Rated operating voltage (Ue) - min
690 V
Rated operating voltage (Ue) at AC - max
690 V
Rated operational current for specified heat dissipation (In)
2000 A
Rated permanent current at AC-21, 400 V
0 A
Rated permanent current at AC-23, 400 V
2000 A
Rated short-circuit making capacity up to 440 V, 50/60 Hz
145 kA
Rated short-circuit making capacity up to 690 V, 50/60 Hz
145 kA
Rated short-time withstand current (t = 1 s)
66 kA
Rated short-time withstand current at 50/60 Hz (t = 3 s)
53 kA
Rated uninterrupted current (Iu) at 50°C
2000 A
Rated uninterrupted current (Iu) at 60°C
2000 A
Rated uninterrupted current (Iu) at 70°C
2000 A
Terminal capacity (copper bar)
80 mm x 10 mm (2x) for fixed mounting (black)
Width in number of modular spacings
24
| Merkmal | Wert |
|---|---|
| Ausführung als Hauptschalter (EF006981) | Ja |
| Ausführung als Wartungs-/Reparaturschalter (EF006986) | Ja |
| Ausführung als Sicherheitsschalter (EF006985) | Nein |
| Ausführung als NOT-AUS-Einrichtung (EF006959) | Nein |
| Ausführung als Wendeschalter (EF009408) | Nein |
| Anzahl der Schalter (EF005586) | 1 |
| Max. Bemessungsbetriebsspannung Ue bei AC (EF007355) | 690 V |
| Bemessungsbetriebsspannung (EF001435) | 690 V |
| Bemessungsdauerstrom Iu (EF001389) | 2000 A |
| Bemessungsdauerstrom bei AC-23, 400 V (EF011777) | 2000 A |
| Bemessungsdauerstrom bei AC-21, 400 V (EF009165) | 0 A |
| Bemessungsbetriebsleistung bei AC-3, 400 V (EF001364) | 0 kW |
| Bemessungskurzzeitstromfestigkeit Icw (EF007050) | 66 kA |
| Bemessungsbetriebsleistung bei AC-23, 400 V (EF007027) | 0 kW |
| Schaltleistung bei 400 V (EF009166) | 0 kW |
| Bedingter Bemessungskurzschlussstrom Iq (EF001444) | 144 kA |
| Polzahl (EF001391) | 3 |
| Anzahl der Hilfskontakte als Öffner (EF001377) | 0 |
| Anzahl der Hilfskontakte als Schließer (EF001376) | 0 |
| Anzahl der Hilfskontakte als Wechsler (EF003531) | 2 |
| Motorantrieb optional (EF007386) | Ja |
| Motorantrieb integriert (EF006697) | Nein |
| Spannungsauslöser optional (EF007491) | Ja |
| Gerätebauart (EF008240) | Einbaugerät Festeinbautechnik |
| Geeignet für Frontbefestigung 4-Loch (EF007247) | Nein |
| Geeignet für Frontbefestigung Zentral (EF007248) | Nein |
| Geeignet für Verteilereinbau (EF007262) | Ja |
| Geeignet für Zwischenbau (EF007264) | Ja |
| Farbe des Betätigungselements (EF007167) | grün |
| Ausführung des Betätigungselements (EF006976) | Drucktaster |
| Verriegelbar (EF006281) | Ja |
| Anschlussart Hauptstromkreis (EF006819) | Schienenanschluss |
| Mit vormontierter Verkabelung (EF016444) | Nein |
| Schutzart (IP), frontseitig (EF003118) | IP31 |
| Breite (EF000008) | 521 mm |
| Höhe (EF000040) | 597 mm |
| Tiefe (EF000049) | 584 mm |
| Breite in Teilungseinheiten (EF002950) | 24 |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| INX40B3-20F-1 Y7-184044 184044 DE_184044.pdf | 122 Kbytes |
|
