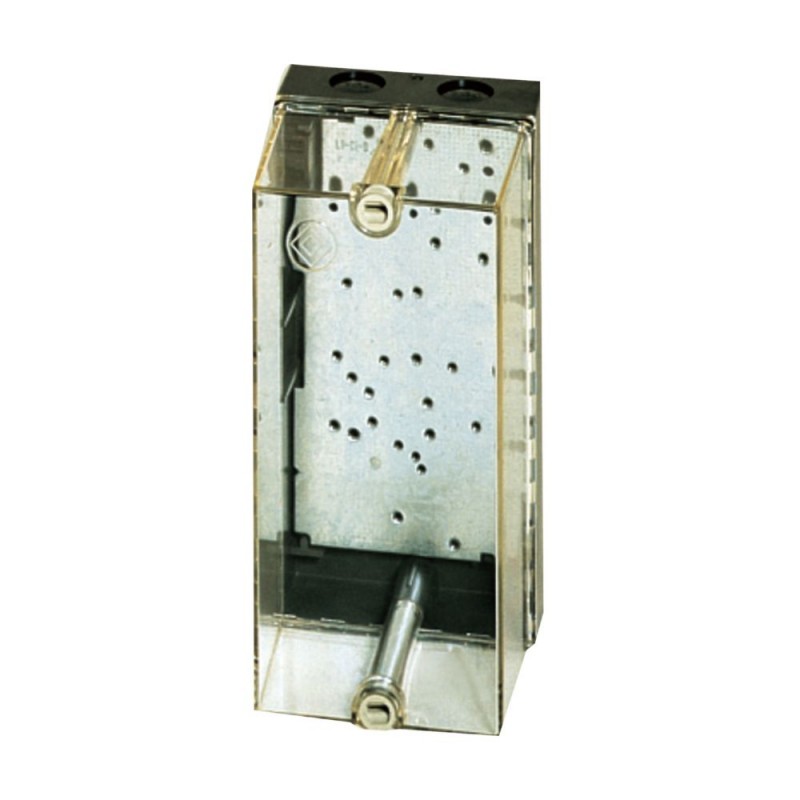

CI-D 038553 Y7-38553 EATON ELECTRIC Custodia in materiale isolante, 222x110x128mm Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

CI-D 038553 Y7-38553 EATON ELECTRIC Custodia in materiale isolante, 222x110x128mm

CI-D

038553

Y7-38553

EATON-MOELLER

Custodia in materiale isolante, 222x110x128mm

Cassetta materiale isolante HxLxP=222x110x128mm

Eaton Moeller® series CI Insulated enclosure, 222x110x128mm

Scatola isolata, Custodia vuota per contattore DIL0AM e base fusibile S27, Gamma prodotti: Scatole di base CI-B, C, D, Scatole di base, Scatole metriche superiore, inferiore, Con terminale PEN, Custodia singola con piastra di montaggio preforata, Coperchio delle caratteristiche: Trasparente, Dimensioni Larghezza: 110 mm, Altezza: 222 mm, Profondità: 128 mm, Profondità di montaggio con piastra di montaggio: 110 mm, Utilizzare con: DIL0AM, S27

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Scatola per stazione di comando a sospensione

Scatole isolanti

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $54.18
Prezzo unitario: $54.18
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

Dettagli



General specifications

Product Name
Eaton Moeller® series CI Insulated enclosure
Catalog Number
038553
EAN
4015080385530
Product Length/Depth
128 mm
Product Height
222 mm
Product Width
110 mm
Product Weight
0.635 kg
Compliances
CE
Catalog Notes
Individual enclosure with pre-drilled mounting plate
Model Code
CI-D

Specifiche del prodotto

Type
Empty enclosure for fuse bases S27
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PEN terminal
Transparent cover
Enclosure material
Plastic
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Mounting depth
110 mm
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Basic enclosures
Cover/door type
Transparent
Degree of protection
IP55
NEMA Other
Model
Surface mounting
Knockouts
Metric cable entry knockouts at the top and bottom

ETIM for 038553 Apparecchi elettrici a bassa tensione (EC000712)
Caratteristica Valore
materiale della scatola (EF001596) materiale sintetico
larghezza (EF000008) 110 mm
altezza (EF000040) 222 mm
profondità (EF000049) 128 mm
con coperchio trasparente (EF001094)
adatto per arresto d'emergenza (EF001433) No
versione (EF000010) sporgente
grado di protezione (IP) (EF005474) IP55
indice di protezione (NEMA) (EF011959) altro

Datasheet - PDF

Titolo: Dimensione: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CI-D Y7-38553 038553 IT_038553.pdf 110 Kbytes   CI-D Y7-38553 038553 IT_038553.pdf
