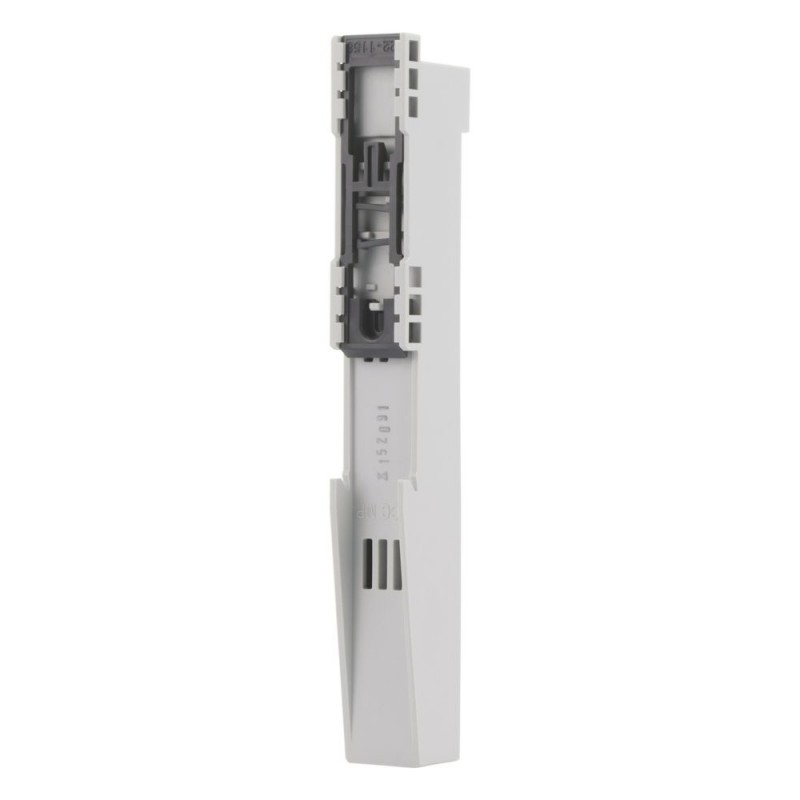

EMS2-XTH 192401 Y7-192401 EATON ELECTRIC Starter elettronico Adattatore Binario Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

EMS2-XTH 192401 Y7-192401 EATON ELECTRIC Starter elettronico Adattatore Binario

EMS2-XTH

192401

Y7-192401

EATON-MOELLER

Starter elettronico; Adattatore Binario

Eaton Moeller® series EMS2 Mounting rail adapter, Pole 3, For use with EMS2-ROSF-...

Adattatore, Gamma prodotti: Avviatore motore elettronico, Accessori, Palo: 3, Utilizzare con: EMS2-ROSF-...

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Soft Starter standard

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $31.37
Prezzo unitario: $31.37
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series EMS2 adapter
Catalog Number
192401
EAN
4015081930982
Product Length/Depth
30 mm
Product Height
160 mm
Product Width
22.5 mm
Product Weight
0.082 kg
Certifications
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CE marking
UL Category Control No.: NLDX, NLDX7
UL File No.: E29096
UL Listed
Certified by UL for use in Canada
UL report applies to both US and Canada
Model Code
EMS2-XTH

Features & Functions

Number Of Poles
Three-pole

General

Accessory/spare part type
Adapter plate
Product category
Type
Mounting rail adapter

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 192401 Apparecchi elettrici a bassa tensione (EC002498)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) piastra adattatrice
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON EMS EN.pdf 1 Mbytes
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
EMS2-XTH Y7-192401 192401 IT_192401.pdf 110 Kbytes EMS2-XTH Y7-192401 192401 IT_192401.pdf
