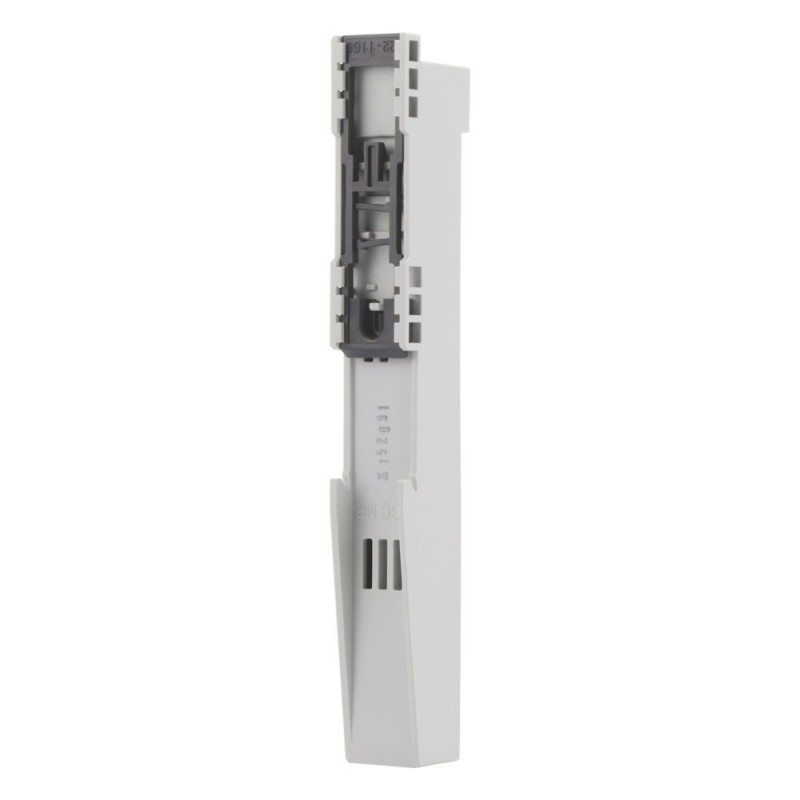

EMS2-XTH 192401 Y7-192401 EATON ELECTRIC Starter electronic Adapter Rail View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EMS2-XTH 192401 Y7-192401 EATON ELECTRIC Starter electronic Adapter Rail

EMS2-XTH

192401

Y7-192401

EATON-MOELLER

Starter electronic; Adapter Rail

EMS2-XTH

Eaton Moeller® series EMS2 Mounting rail adapter, Pole 3, For use with EMS2-ROSF-...

Adapter, Product range: Electronic motor starter, Accessories, Pole: 3, For use with: EMS2-ROSF-...

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

Standard Soft Starters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $31.57
Unit price: $31.57
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series EMS2 adapter
Catalog Number
192401
Model Code
EMS2-XTH
EAN
4015081930982
Product Length/Depth
30 mm
Product Height
160 mm
Product Width
22.5 mm
Product Weight
0.082 kg
Certifications
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CE marking
UL Category Control No.: NLDX, NLDX7
UL File No.: E29096
UL Listed
Certified by UL for use in Canada
UL report applies to both US and Canada

Features & Functions

Number Of Poles
Three-pole

General

Accessory/spare part type
Adapter plate
Product category
Type
Mounting rail adapter

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 192401 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Adapter plate
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON EMS EN.pdf 1 Mbytes
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
EMS2-XTH Y7-192401 192401 EN_192401.pdf 110 Kbytes EMS2-XTH Y7-192401 192401 EN_192401.pdf
