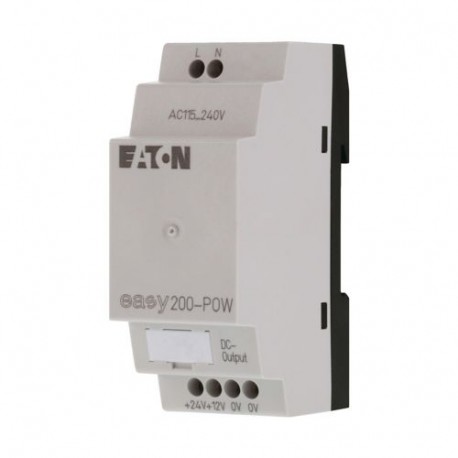

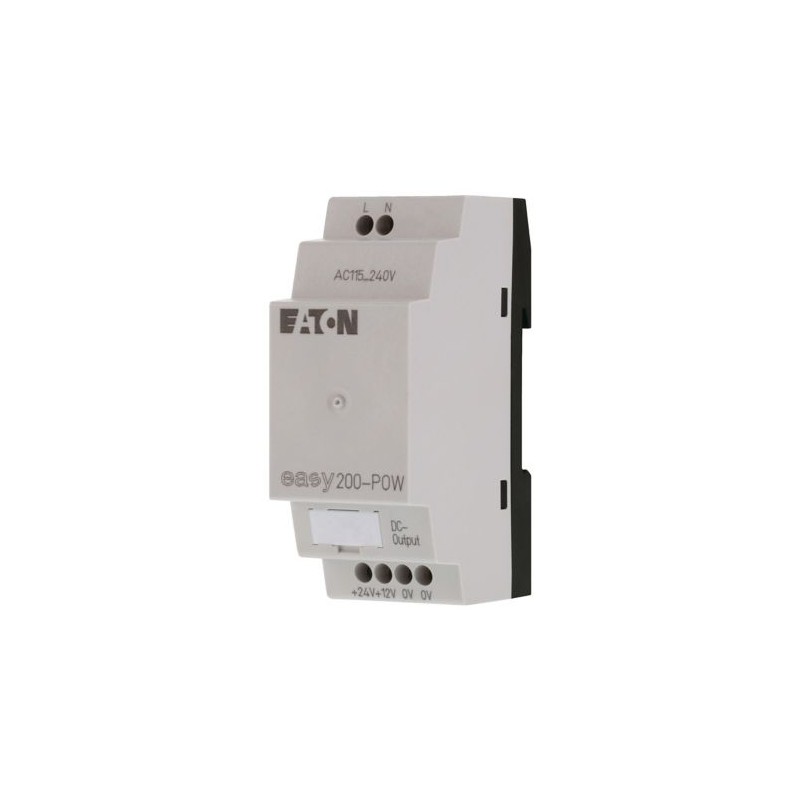

EASY200-POW 229424 0004520990 EATON ELECTRIC Alimentazione 230Vac / 12-24VDC Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

EASY200-POW 229424 0004520990 EATON ELECTRIC Alimentazione 230Vac / 12-24VDC

EASY200-POW

229424

0004520990

EATON-MOELLER

Alimentazione 230Vac / 12-24VDC

Alimentatore a commutazione; 100-240 V CA/24 V CC; 0,35 A; Monofase

Alimentatore switching, 100-240VAC/24VDC/12VDC, 0.35A/0.02A, a 1 fase, regolato

Gli alimentatori switching a ciclo primario controllati forniscono una bassa tensione sicura (SELV secondo EN60950) con livello di interferenza radio B secondo EN55011 e EN55022. Sono stati testati per l'uso in reti industriali e pubbliche. La sicurezza da sovraccarico e la resistenza permanente ai cortocircuiti garantiscono un'elevata sicurezza del dispositivo. Tensione di ingresso nominale a 50/60 Hz: 100-240 V CA, tensione di uscita nominale: 24 V / 12 V CC, corrente di uscita nominale: 0,35 A / 20 mA

Maggiori dettagli


sistemi di controllo industriali (PLC) > Alimentazione del sistema PLC

Relè programmabili e display multifunzione EASY

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

* Questo articolo potrebbe essere obsoleto. Se sei interessato chiedete noi un preventivo e ti diremo se ci sono unità disponibili. Se non ce ne sono più, un nostro tecnico cercherà un'alternativa fornibile con caratteristiche simili.

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton easyPOW power supply unit
Catalog Number
229424
EAN
4015082294243
Product Length/Depth
58 mm
Product Height
90 mm
Product Width
36 mm
Product Weight
0.085 kg
Certifications
CE
UL Category Control No.: NRAQ
CSA-C22.2 No. 213-M1987
IEC 60068-2-27
UL File No.: E135462
EN 55022
CSA Class No.: 2252-01 + 2258-02
CSA File No.: 012528
CSA
UL
IEC 60068-2-6
EN 55011
IEC/EN 61000-4
CSA-C22.2 No. 142-M1987
UL 508
Model Code
EASY200-POW

Modelli & Funzioni

Features
Overload proof (by current limitation)
Proof against sustained short circuit, hickup mode (Output current 24 V DC)
Number of phases
1

Informazioni generali

Degree of Protection
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Mounting Method
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Product category
Control relays easyE4
Used with
easyE4
LED indicator
Status Indication of 24 V DC output voltage: Continuous green light LED
Power consumption
7 W typ.

Condizioni meccaniche ambientali

Mounting position
Vertical
Horizontal
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Condizioni ambientali e climatiche

Altitude
Max. 2000 m
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
70 °C

Compatibilità elettromagnetica

Air discharge
8 kV, according to IEC/EN 61000-4-2, Level 3, ESD
Burst impulse
2 kV, according to IEC/EN 61000-4-4, Level 3
Contact discharge
6 kV, according to IEC/EN 61000-4-2, Level 3, ESD
Electromagnetic fields
10 V/m (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Surge rating
6 kV, Surge voltage (EN 50178), 24 V, EMV
2 kV, Supply cables, symmetrical, power pulses (Surge), EMC
0.5kV, outgoer cables symmetrical, EASY…DC, IEC/EN 61000-4-5, level 2, 24 V EMC

Sezioni di collegamento

Terminal capacity (flexible with ferrule)
0.2/2.5 mm²
Terminal capacity (flexible with ferrule AWG)
22 - 12
Terminal capacity (solid)
0.2/4 mm²
Terminal capacity (solid AWG)
22 - 12
Tightening torque
0.6 Nm, Screw terminals

Sicurezza

Protection class
2 (IEC/EN 60536)
Current limitation
20 mA, effectiveness of current limitation, 12 V DC (reference voltage), output current
0.4 A, effectiveness of current limitation, 24 V DC, output current
Insulation resistance
According to EN 50178
Potential isolation
SELV (VDE 0100 Part 410; IEC 60364-4-41, HD 384.4.41 S2) EN 60950, EN 50178 (primary/secondary)

Caratteristiche ingresso

Input current at AC - max
0.17 A
Input voltage at AC 50 Hz - min
85 V
Input voltage at AC 50 Hz - max
264 V
Input voltage at DC - min
0 V
Input voltage at DC - max
0 V
Inrush current
5 A (at 25 °C, 230 V)
Mains failure bridging
> 10 ms (at 115 V, according to IEC/EN 61000-4-11)
> 20 ms (at 230 V, according to IEC/EN 61000-4-11)

Caratteristiche uscita

Efficiency
80 %
Output current at AC, 50 Hz - max
0.35 A
Output voltage
± 1 % (Effect with 25 - 100 % load change)
± 1 % (Effect of input voltage)
Output voltage at AC 50 Hz - max
12 V
Output voltage at DC - min
12 V
Output voltage at DC - max
24 V
Rated output power
10 W
Short-circuit protection
Yes, Proof against sustained short circuit, 12 V DC (reference voltage), Output current
Voltage tolerance
± 4 %, Rated output voltage 12 V DC
± 3 %, Rated output voltage 24 V DC

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 229424 Controllori logici programmabili (PLC) (EC000599)
Caratteristica Valore
tensione d'entrata AC 50 Hz (EF007118) 85 V
tensione d'entrata AC 60 Hz (EF007119) 85 V
tensione d'entrata DC (EF007120) 0 V
tipo di tensione d'ingresso (EF003033) DC
corrente d'entrata max. AC 50 Hz (EF007360) 0.17 A
corrente d'entrata max. AC 60 Hz (EF007361) 0.17 A
corrente d'entrata max. DC (EF007362) 0 A
tipo di tensione d'uscita (EF008222) DC
tensione d'uscita AC 50 Hz (EF006999) 0 V
tensione d'uscita AC 60 Hz (EF007000) 0 V
tensione d'uscita DC (EF007001) 12 V
corrente d'uscita max. AC 50 Hz (EF007351) 0.35 A
corrente d'uscita max. AC 60 Hz (EF007352) 0 A
corrente d'uscita max. DC (EF007353) 0.35 A
potenza erogata (EF003034) 8.4 W
capacità di ridondanza (EF003156) No
adatto per funzioni di sicurezza (EF001597) No
larghezza (EF000008) 36 mm
altezza (EF000040) 90 mm
profondità (EF000049) 58 mm

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SAFETY LOGIC EN.pdf 2 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
EASY200-POW 0004520990 229424 ES_212319.pdf 1 Mbytes EASY200-POW 0004520990 229424 ES_212319.pdf
