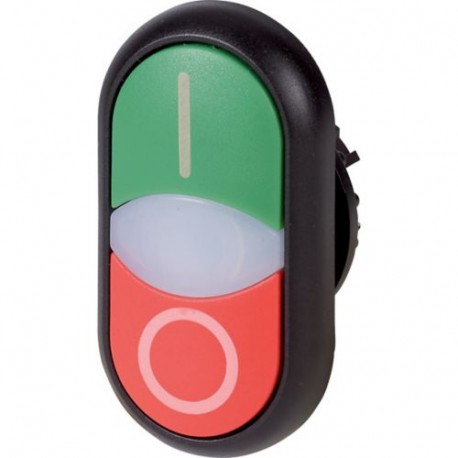

M22S-DDL-GR-X1/X0 216701 M22S-DDL-GR-X1-X0Q EATON ELECTRIC Pulsante doppio, +indicatore luminoso, verde I/bi..
M22S-DDL-GR-X1/X0
216701
M22S-DDL-GR-X1-X0Q
EATON-MOELLER
5
Pulsante doppio, +indicatore luminoso, verde I/bianco/rosso 0
Doppio pulsante + spia luminosa 22 mm Highlights Verde I Bianco
Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, White lens, green, red, inscribed, Bezel: black
apparecchi elettrici a bassa tensione > Pulsante da quadro
Ausili di controllo e segnalazione
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Comprati di solito insieme
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
216701
EAN
4015082167011
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CSA Class No.: 3211-03
IEC/EN 60947
IEC/EN 60947-5
CE
CSA-C22.2 No. 94-91
UL
UL File No.: E29184
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL 508
CSA
CSA File No.: 012528
VDE 0660
DNV
GL
LR
IEC/EN 60947
IEC/EN 60947-5
CE
CSA-C22.2 No. 94-91
UL
UL File No.: E29184
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL 508
CSA
CSA File No.: 012528
VDE 0660
DNV
GL
LR
Model Code
M22S-DDL-GR-X1/X0
Features & Functions
Bezel color
Black
Bezel material
Plastic
Design
Non-Flush
Classical
Classical
Features
Labelled
Fitted with:
Front ring
Inscription
Inscribed
Lens color
White
General
Degree of protection
NEMA 13
NEMA 12
NEMA 3R
IP66
NEMA 4X
NEMA 12
NEMA 3R
IP66
NEMA 4X
Degree of protection (front side)
IP66
NEMA 4X
NEMA 4X
Lifespan, mechanical
200,000 Operations
Opening diameter
22.5 mm
Operating frequency
3600 Operations/h
Product category
RMQ-Titan
Size
Front dimensions: 29,7 x 54,7 mm
Suitable for
Illumination
Type
Double actuator
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Communication
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Yes
Actuator
Actuating force
5 N
Actuator color
Green, red
Actuator function
Spring-return
Momentary
Momentary
Contacts
Force for positive opening - min
0 N
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
