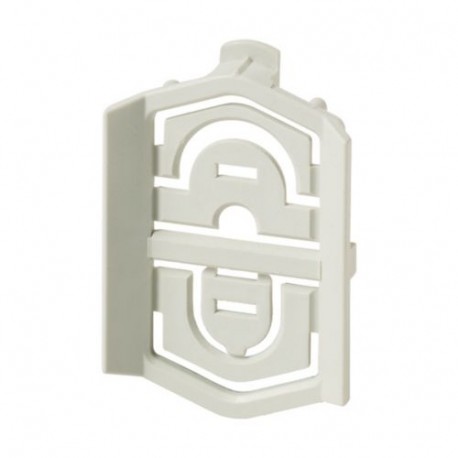

DILM150-XIP2X 106492 Y7-106492 EATON ELECTRIC Coperchio, apertura per il collegamento DILM80-150, (8pez.) Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILM150-XIP2X 106492 Y7-106492 EATON ELECTRIC Coperchio, apertura per il collegamento DILM80-150, (8pez.)

DILM150-XIP2X

106492

Y7-106492

EATON-MOELLER

8

Coperchio, apertura per il collegamento DILM80-150, (8pez.)

Cappuccio di protezione dei contatti IP20 per contattori DILM80... 170

Eaton Moeller® series DILM Cover, connection opening DILM80-150, (8unit)

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $33.07
Prezzo unitario: $4.13
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM terminal cover
Catalog Number
106492
EAN
4015081062614
Product Length/Depth
8.5 mm
Product Height
34.5 mm
Product Width
23.5 mm
Product Weight
0.14 g
Certifications
UL/CSA certification not required
Model Code
DILM150-XIP2X

Informazioni generali

Accessory/spare part type
Cover
Product category
Accessories
Used with
ZB150
DILM80 up to DILM170
DILM80 up to DILM170 and ZB150

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM150-XIP2X Y7-106492 106492 FR_118855.pdf 1 Mbytes DILM150-XIP2X Y7-106492 106492 FR_118855.pdf
