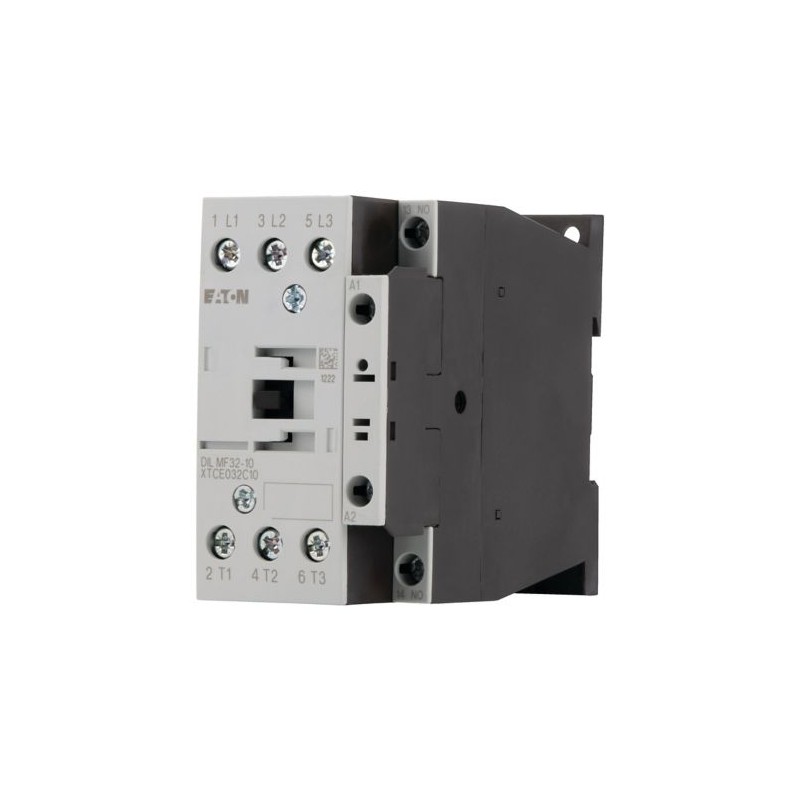

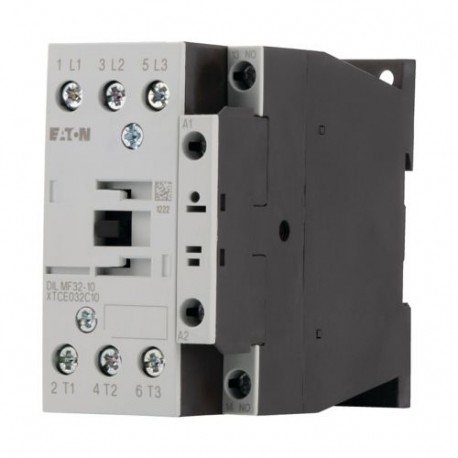

DILMP32-10(RDC24) 109811 Y7-109811 EATON ELECTRIC Contattore di potenza, 4p+1NA, 32A/AC1

Name: DILMP32-10(RDC24) 109811 Y7-109811 EATON ELECTRIC Contattore di potenza, 4p+1NA, 32A/AC1
Brand: EATON-MOELLER
SKU: ETN109811
Price: 93.44 EUR
Availability: InStock

0/5 - 0 Opiniones

Riferimento DILMP32-10(RDC24)

Codice: 109811

Numero di catalogo: Y7-109811

Fabbricante EATON-MOELLER

Descrizione:

Contattore di potenza, 4p+1NA, 32A/AC1

Contattore di potenza Collegamento a vite 4 poli + 1 NO 32 A AC-1

Eaton Moeller® series DILMP Contactor, 4 pole, DC operation, AC-1: 32 A, 1 N/O, RDC 24: 24 - 27 V DC, Screw terminals

Contattore, Applicazione: Contattori per utenze elettriche a 4 poli, Contattori fino a 200 A, 4 poli, Categoria di utilizzo: AC-1: Carichi non induttivi o leggermente induttivi, Forni a resistenza, NAC-3: Motori asincroni AC normali: avviamento, arresto durante il funzionamento, Tecnologia di collegamento: Morsetti a vite, Numero di poli: 4 poli, 380 V 400 V: Ie= 18 A, Corrente termica convenzionale all'aria libera, 3 poli, 50 - 60 Hz aperto a 40 °C: Ith = Ie= 32 A, chiuso: Ith= 27 A, corrente termica convenzionale all'aperto, 1 polo aperto: Ith= 84 A, chiuso: Ith= 76 A, 220 V 230 V: P= 5 kW, 380 V 400 V: P= 7,5 kW, 660 V 690 V: P= 11 kW, Contatti NA = Normalmente aperto: 1 NA, Istruzioni: Contatti secondo EN 50 012., Circuito soppressore integrato nell'elettronica di azionamento, Tensione AC/DC: Funzionamento DC

Maggiori dettagli

Categorie:
Apparecchi elettrici a bassa tensione > Contatto per commutazione in C.A.

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Garanzia, riparazione e restituzione.

Prezzo totale: $113.14

Prezzo unitario: $113.14

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Sconto addizionale per i clienti registrati. Registrati e i prezzi saranno aggiornati automaticamente.

Calcola prezzo per quantità

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Prodotti visti

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲

General specifications

Product Name

Eaton Moeller® series DILMP 4-pole contactor

Catalog Number

109811

EAN

4015081093830

Product Length/Depth

97 mm

Product Height

85 mm

Product Width

58 mm

Product Weight

0.6 kg

Certifications

VDE 0660
UL Category Control No.: NLDX
CE
UL 60947-4-1
UL
CSA Class No.: 2411-03, 3211-04
CSA File No.: 012528
IEC/EN 60947-4-1
CSA-C22.2 No. 60947-4-1-14
UL File No.: E29096
IEC/EN 60947
CSA

Catalog Notes

Also tested according to AC-3e.

Model Code

DILMP32-10(RDC24)

Caratteristiche e Funzioni

Fitted with:

Suppressor circuit in actuating electronics

Number Of Poles

Four-pole

Informazioni generali

Application

Contactors for 4 pole electric consumers

Lifespan, mechanical

10,000,000 Operations (AC operated)
10,000,000 Operations (DC operated)

Operating frequency

5000 mechanical Operations/h (AC operated)
5000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

2.7 mΩ

Utilization category

AC-3: Normal AC induction motors: starting, switch off during running
AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

Condizioni ambientali, dati meccanici

Shock resistance

10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Condizioni ambientali e climatiche

Ambient operating temperature - min

-25 °C

Ambient operating temperature - max

60 °C

Ambient operating temperature - max

60 °C

Ambient operating temperature (enclosed) - min

25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient storage temperature - min

40 °C

Ambient storage temperature - max

80 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-30

Sezioni di collegamento

Terminal capacity (flexible with ferrule)

1 x (0.75 - 1.5) mm²
2 x (0.75 - 1.5) mm²

Terminal capacity (flexible)

1 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²

Terminal capacity (solid)

1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
1 x (0.75 - 4) mm², Control circuit cables
2 x (0.75 - 2.5) mm², Control circuit cables
1 x (0.75 - 2.5) mm²

Terminal capacity (solid/stranded AWG)

18 - 6, Main cables
18 - 14, Control circuit cables

Terminal capacity (stranded)

1 x 16 mm², Main cables

Stripping length (main cable)

10 mm

Stripping length (control circuit cable)

10 mm

Screw size

M5, Terminal screw, Main cables
M3.5, Terminal screw, Control circuit cables

Screwdriver size

0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver

Tightening torque

3 Nm, Screw terminals, Main cables
1.2 Nm, Screw terminals, Control circuit cables

Dati elettrici

Rated breaking capacity at 220/230 V

180 A

Rated breaking capacity at 380/400 V

180 A

Rated breaking capacity at 500 V

180 A

Rated breaking capacity at 660/690 V

120 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

32 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

18 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

18 A

Rated operational current (Ie) at AC-3, 440 V

18 A

Rated operational current (Ie) at AC-3, 500 V

18 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

12 A

Rated operational current (Ie) at AC-4, 400 V

15 A

Rated operational current (Ie) at DC-1, 60 V

32 A

Rated operational current (Ie) at DC-1, 110 V

32 A

Rated operational current (Ie) at DC-1, 220 V

32 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

32 A

Rated operational power at AC-1, 240 V, 50 Hz

13 kW

Rated operational power at AC-1, 380/400 V, 50 Hz

20 kW

Rated operational power at AC-1, 415 V, 50 Hz

22 kW

Rated operational power at AC-1, 440 V, 50 Hz

23 kW

Rated operational power at AC-1, 500 V, 50 Hz

26 kW

Rated operational power at AC-1, 690 V, 50 Hz

35 kW

Rated operational power at AC-3, 240 V, 50 Hz

5.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

7.5 kW

Rated operational power at AC-3, 415 V, 50 Hz

10 kW

Rated operational voltage (Ue) at AC - max

690 V

Resistenza al corto circuito

Short-circuit current rating (basic rating)

125 A, max. CB, SCCR (UL/CSA)
125 A, max. Fuse, SCCR (UL/CSA)
5 kA, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

10/100 kA, Fuse, SCCR (UL/CSA)
10/65 kA, CB, SCCR (UL/CSA)
125/70 A, Class J, max. Fuse, SCCR (UL/CSA)
50/32 A, max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

125/100 A, Class J, max. Fuse, SCCR (UL/CSA)
50/32 A, max. CB, SCCR (UL/CSA)
10/100 kA, Fuse, SCCR (UL/CSA)
10/22 kA, CB, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

63 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

50 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

35 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

35 A gG/gL

Corrente convenzionale termica

Conventional thermal current ith (1-pole, enclosed)

76 A

Conventional thermal current ith (3-pole, enclosed)

27 A

Conventional thermal current ith at 55°C (3-pole, open)

29 A

Conventional thermal current ith of main contacts (1-pole, open)

84 A

Potere d'inserzione

Switching capacity (main contacts, general use)

40 A, Maximum motor rating (UL/CSA)

Switching capacity (auxiliary contacts, general use)

10 A, 600 V AC, (UL/CSA)
1 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

P300, DC operated (UL/CSA)
A600, AC operated (UL/CSA)

Tempo di commutazione

Arcing time

10 ms

Switching time (DC operated, make contacts, closing delay) - max

47 ms

Switching time (DC operated, make contacts, opening delay) - max

30 ms

Sistema elettromagnetico (bobina)

Drop-out voltage

0.2 - 0.6 x UC, DC operated

Duty factor

100 %

Pick-up voltage

0.7 - 1.2 V DC x Uc
0.85 - 1.1 V AC/DC x Us

Power consumption (pick-up) at DC

12 W

Power consumption (sealing) at DC

0.9 W

Rated control supply voltage (Us) at AC, 50 Hz - min

0 V

Rated control supply voltage (Us) at AC, 50 Hz - max

0 V

Rated control supply voltage (Us) at AC, 60 Hz - min

0 V

Rated control supply voltage (Us) at AC, 60 Hz - max

0 V

Rated control supply voltage (Us) at DC - min

24 V

Rated control supply voltage (Us) at DC - max

27 V

Potenza nominale d'impiego (Motore)

Assigned motor power at 115/120 V, 60 Hz, 1-phase

2 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

7.5 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

5 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

10 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

15 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

20 HP

Comunicazione

Connection

Screw terminals

Connection to SmartWire-DT

In conjunction with DIL-SWD SmartWire DT contactor module
Yes

Contatti

Number of contacts (normally open contacts)

Number of auxiliary contacts (normally closed contacts)

Number of auxiliary contacts (normally open contacts)

Sicurezza

Safe isolation

440 V AC, Between the contacts, According to EN 61140
440 V AC, Between coil and contacts, According to EN 61140

Special Purpose Ratings

Special purpose rating of ballast electrical discharge lamps

40 A (480V 60Hz 3phase, 277V 60Hz 1phase)
40 A (600V 60Hz 3phase, 347V 60Hz 1phase)

Special purpose rating of definite purpose rating

25 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)
150 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Special purpose rating of elevator control

5 HP, 240 V 60 Hz 3-ph, (UL/CSA)
10 HP, 480 V 60 Hz 3-ph, (UL/CSA)
3 HP, 200 V 60 Hz 3-ph, (UL/CSA)
17 A, 600 V 60 Hz 3-ph, (UL/CSA)
14 A, 480 V 60 Hz 3-ph, (UL/CSA)
15.2 A, 240 V 60 Hz 3-ph, (UL/CSA)
11 A, 200 V 60 Hz 3-ph, (UL/CSA)
15 HP, 600 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of refrigeration control (CSA only)

40 A, FLA 480 V 60 Hz 3phase; (CSA)
30 A, FLA 600 V 60 Hz 3phase; (CSA)
240 A, LRA 480 V 60 Hz 3phase; (CSA)
180 A, LRA 600 V 60 Hz 3phase; (CSA)

Special purpose rating of resistance air heating

40 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
40 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of tungsten incandescent lamps

40 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
40 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid

6.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

2.2 W

Rated operational current for specified heat dissipation (In)

32 A

Static heat dissipation, non-current-dependent Pvs

0.9 W

10.2.2 Corrosion resistance
