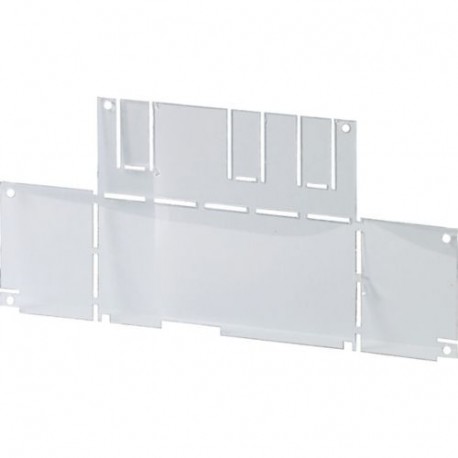

QSATCOVERBOX0 1320239 EATON ELECTRIC Copertura vano collegamenti Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

QSATCOVERBOX0 1320239 EATON ELECTRIC Copertura vano collegamenti

QSATCOVERBOX0

1320239

EATON-MOELLER

Copertura vano collegamenti

Area di collegamento cubieta

Eaton QSA Terminal shroud, For use with 3-pole fuse switch-disconnectors, QSA40N0, QSA63N0

Maggiori dettagli


apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Disconnettori per interruttori DUMECO

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $27.19
Prezzo unitario: $27.19

*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Dettagli

▲


General specifications

Product Name
Eaton QSA Accessory Terminal shroud
Catalog Number
1320239
EAN
8711426603394
Product Length/Depth
135 mm
Product Height
50 mm
Product Width
130 mm
Product Weight
0.03 kg
Compliances
CE
Model Code
QSATCOVERBOX0

Specifiche del prodotto

Type
Terminal cover
Accessories
Shroud for connection terminals for (busbar tag shroud)
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Cover
Color
Transparent
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf 8 Mbytes
QSATCOVERBOX0 1320239 IT_1320239.pdf 109 Kbytes QSATCOVERBOX0 1320239 IT_1320239.pdf
