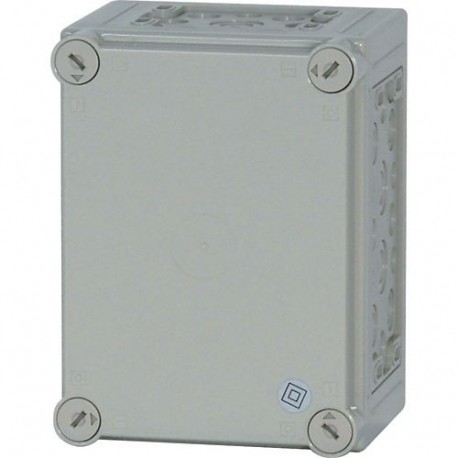

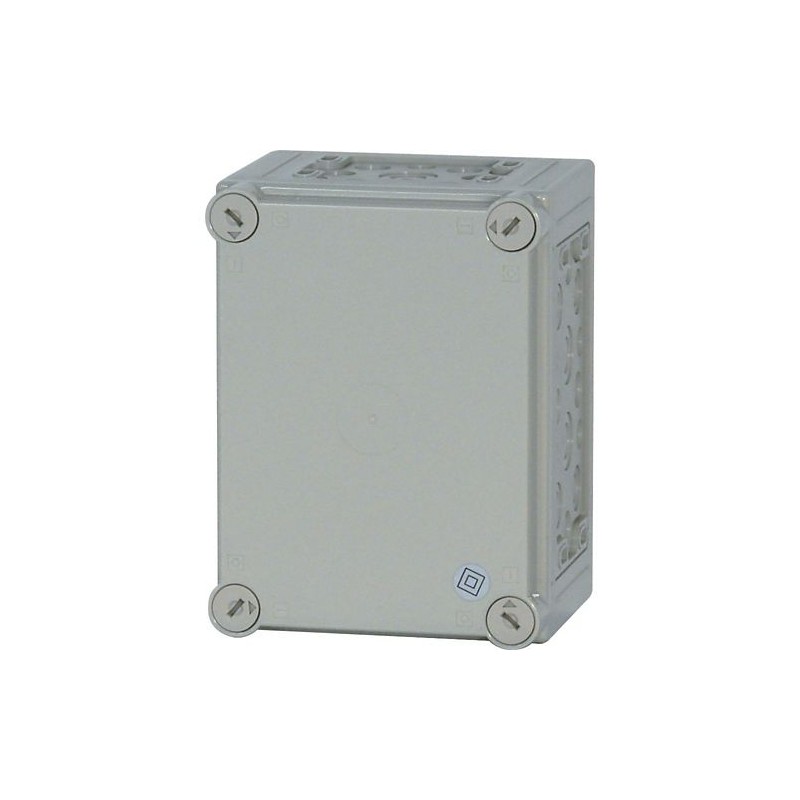

CI23E-125-RAL7035 194609 Y7-194609 EATON ELECTRIC Custodia isolante con prefori metrici
CI23E-125-RAL7035
194609
Y7-194609
EATON-MOELLER
Custodia isolante con prefori metrici
Eaton xEnergy Safety Ci LV systems LV switchgear. Insulated enclosure, +knockouts, RAL7035, HxWxD=250x187.5x125mm
Scatole isolanti
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton xEnergy Safety Ci empty enclosure insulated
Catalog Number
194609
EAN
9010238058279
Product Length/Depth
150 mm
Product Height
250 mm
Product Width
187.5 mm
Product Weight
1.304 kg
Compliances
RoHS conform
Certifications
EN 62208
EN 61439-2
EN 61439-2
Model Code
CI23E-125-RAL7035
Delivery program
Type
Basic enclosureIndividual enclosuresxEnergy Safety Ci
Color
Light gray (RAL 7035, base)
Gray
Light gray (RAL 7035, cover)
Gray
Light gray (RAL 7035, cover)
Nominal current
1600 A
Technical data - electrical
Circuit integrity
None
Technical data - mechanical
Unit type
Single unit
Surface finishing
Resistant to corrosion
Surface protection
Untreated
Surface treatment
Resistant to corrosion
Enclosure material
Plastic
Width in number of modular spacings
9
Mounting depth with mounting plate
125 mm
Mounting method
Surface mounted (plaster)
Material
Glass-fibre reinforced polycarbonate (base)
Halogen free
Non-reinforced polycarbonate (cover)
Halogen free
Non-reinforced polycarbonate (cover)
Degree of protection
IP65
Other
IK10
Other
IK10
Number of conduit inlets
30
Number of modules
1
Number of openings (flange plates)
4
Number of rows
0
Built-in depth
125 mm
Cover/door model
Closed
Cover/door type
Cover
None
None
Chemical resistance
Partly resistant to: Acids > 10 %
Not resistant to: alkalis, benzene
Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions
Not resistant to: alkalis, benzene
Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions
Saline spray resistance
IEC 60068-2-11
Plate thickness (cabinet)
6 mm
Plate thickness (cover/door)
6 mm
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
10 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
12 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
11 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
20 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
24 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
22 W
Design verification as per IEC/EN 61439 - technical data
Temperature resistance
Temperature resistant: 80 °C (gasket)
Temperature resistant: 85 °C (enclosure bolt)
Temperature resistant: -40 °C - 120 °C (enclosure)
Temperature resistant: 85 °C (enclosure bolt)
Temperature resistant: -40 °C - 120 °C (enclosure)
Ambient operating temperature details
-40 °C - 80 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Lower part: 960 °C / cover: 850 °C
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
5 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP65
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Additional information
Features
UV resistance beneath protective shield
Cover with overpressure release
Cover with overpressure release
Flammability characteristics (UL)
V1 (base) (UL94)
V2 (cover) (UL94)
V2 (cover) (UL94)
Functions
Extension possible
Protection class
II
RAL-number
7035
Special features
With metric knockouts in all sides of the enclosureInclude fixing straps for wall mountingSealable cover fastenersFull-area knockouts in the sidescan be converted to a distribution board enclosureIntegrated pressure-relief mechanism for short-circuits
Suitable for
Outdoor use
Lightning protection
Lightning protection
Used with
Eaton Switching and protection devices
Datasheet - PDF
