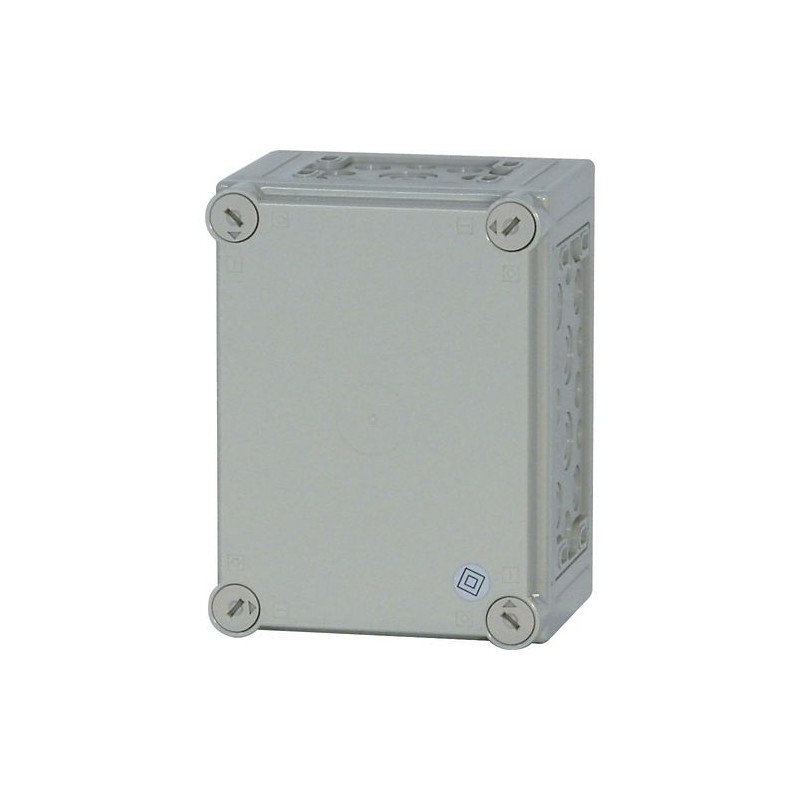

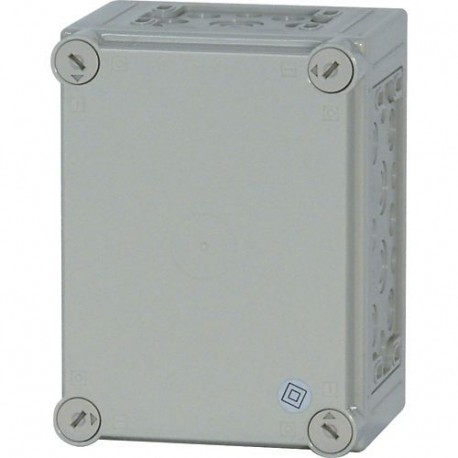

Special features
With metric knockouts in all sides of the enclosureInclude fixing straps for wall mountingSealable cover fastenersFull-area knockouts in the sidescan be converted to a distribution board enclosureIntegrated pressure-relief mechanism for short-circuits
Type
Basic enclosureIndividual enclosuresxEnergy Safety Ci
Features
UV resistance beneath protective shield
Cover with overpressure release
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Lower part: 960 °C / cover: 850 °C
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
5 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
10.9.3 Impulse withstand voltage
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Used with
Eaton Switching and protection devices
Chemical resistance
Partly resistant to: Acids > 10 %
Not resistant to: alkalis, benzene
Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
Color
Light gray (RAL 7035, base)
Gray
Light gray (RAL 7035, cover)
Number of openings (flange plates)
Plate thickness (cabinet)
Plate thickness (cover/door)
Width in number of modular spacings
Ambient operating temperature details
Material
Glass-fibre reinforced polycarbonate (base)
Halogen free
Non-reinforced polycarbonate (cover)
Mounting method
Surface mounted (plaster)
Temperature resistance
Temperature resistant: 80 °C (gasket)
Temperature resistant: 85 °C (enclosure bolt)
Temperature resistant: -40 °C - 120 °C (enclosure)
Flammability characteristics (UL)
V1 (base) (UL94)
V2 (cover) (UL94)
Mounting depth with mounting plate
Suitable for
Outdoor use
Lightning protection
