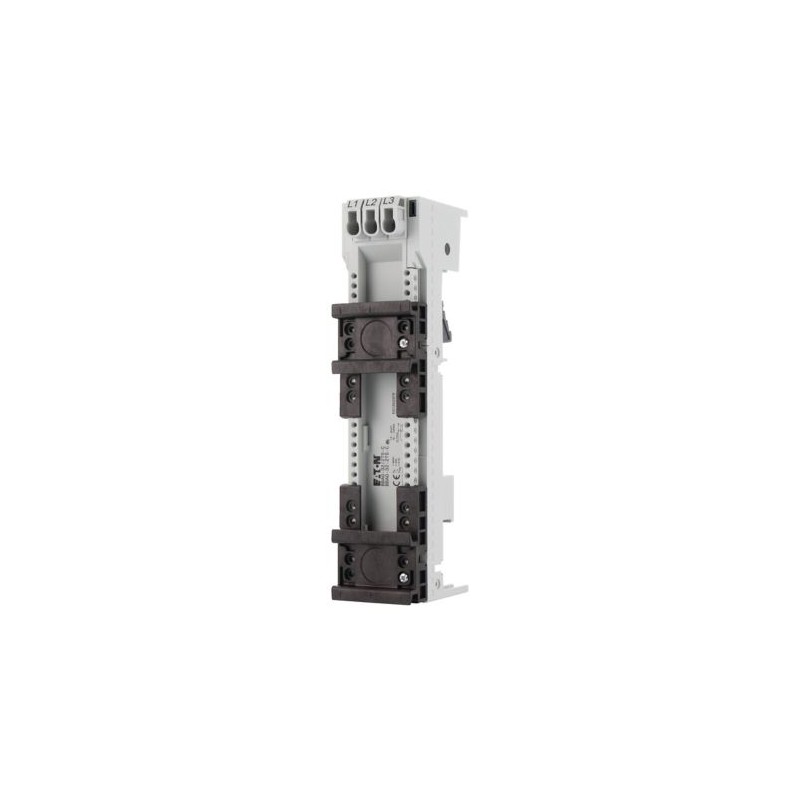

BBA0-32/2TS-C 116708 Y7-116708 EATON ELECTRIC Adattatore per sbarre, 45mm, 32A, 2TS-C Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

BBA0-32/2TS-C 116708 Y7-116708 EATON ELECTRIC Adattatore per sbarre, 45mm, 32A, 2TS-C

BBA0-32/2TS-C

116708

Y7-116708

EATON-MOELLER

4

Adattatore per sbarre, 45mm, 32A, 2TS-C

Eaton Moeller® series BBA - Busbar adapter, 45 mm, 32 A, DIN rail: 2 BBA0-32/2TS-C

Adattatore per sbarre da 45 mm per sistema di sbarre da 60 mm, due guide di montaggio, utilizzabile universalmente per applicazioni a 1, 2, 3 fasi, guide di montaggio spostabili all'interno di una griglia da 1,25 mm, per sezioni di cavo, cavo rotondo fino a 6 mm², corrente nominale di esercizio: 32A

Maggiori dettagli


Apparecchi elettrici a bassa tensione > adattatore per bus system

Motor Protective Switches

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $163.12
Prezzo unitario: $40.78
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series BBA Accessory Busbar adapter
Catalog Number
116708
EAN
4015081164530
Product Length/Depth
200 mm
Product Height
73 mm
Product Width
45 mm
Product Weight
0.269 kg
Certifications
UL 508
CSA-C22.2 No. 14
CE
UL 508A
UL Category Control No.: NMTR; NMTR7
IEC60439-1
UL File No.: E300273
UL
Certified by UL for use in Canada
Model Code
BBA0-32/2TS-C

Delivery program

Type
Nominal current
32 A

Technical data - electrical

Voltage rating (UL CSA 13)
600 V AC, UL/CSA
Voltage rating at AC
690 V
Rated operation current (Ie)
32 A
Electric connection type
Spring clamp connection

Technical data - mechanical

Mounting rail armament
2 mounting rails
Rail width
35 mm
Number of DIN rails
2
Busbar distance
60 mm
Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Adapter width
45 mm
Terminal capacity
1,5 - 6 mm², solid
1,5 - 6 mm², stranded
1,5 - 6 mm², flexible
1,5 - 6 mm², flexible with ferrule
AWG 16 - 10
Stripping length 13 - 14 mm

Design verification as per IEC/EN 61439 - technical data

Equipment heat dissipation, current-dependent Pvid
2.4 W
Static heat dissipation, non-current-dependent Pvs
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Additional information

Special features
Terminal capacity: 6 mm² (AWG 10)

ETIM for 116708 Apparecchi elettrici a bassa tensione (EC001531)
Caratteristica Valore
componenti guida di supporto (EF003700) 2 mounting rails
tipo di collegamento elettrico (EF003961) Spring clamp connection
corrente nominale In (EF008250) 32 A
spessore min. del binario elettrificato (EF006536) 5 mm
spessore max. del binario elettrificato (EF003702) 10 mm
larghezza dell'adattatore (EF003703) 45 mm
larghezza di guida (EF003704) 35 mm
distanza delle guide (EF002638) 60 mm

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BBA0-32/2TS-C Y7-116708 116708 DE_103005.pdf 2 Mbytes BBA0-32/2TS-C Y7-116708 116708 DE_103005.pdf
