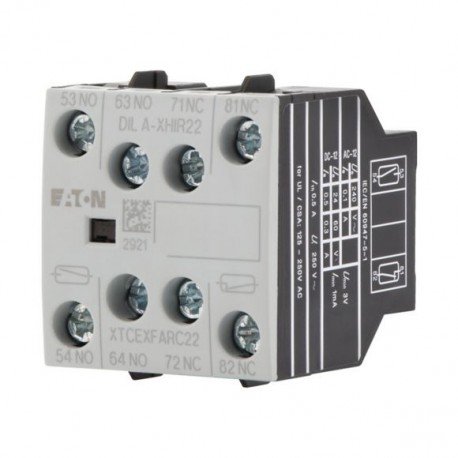

DILA-XHIR22 139580 Y7-139580 EATON ELECTRIC Module de contacts auxiliaires, 2F+2O, électronique Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

DILA-XHIR22 139580 Y7-139580 EATON ELECTRIC Module de contacts auxiliaires, 2F+2O, électronique

DILA-XHIR22

139580

Y7-139580

EATON-MOELLER

5

Module de contacts auxiliaires, 2F+2O, électronique

DILA-XHIR22

Eaton Moeller® series DILA Auxiliary contact module, 4 pole, Ith= 16 A, 2 N/O, 2 NC, Microswitch, Front fixing, Screw terminals, DILA, DILM7 - DILM38

Module de contact auxiliaire, avec contacts opposés verrouillés, (sauf micro-interrupteurs), Éléments de commutation selon EN 50005, Les combinaisons de la version E correspondent à la norme EN 50011 et doivent être préférées., Le contacteur à courant continu DILA(C)-22 ne doit être combiné qu’avec des contacts auxiliaires à 2 pôles., Fonction : pour les applications standard, pour les applications électroniques, 4 pôles, Technique de connexion : Cosses à vis, Courant nominal de fonctionnement AC-15 220 V 230 V 240 V : Ie= 4 A, Courant nominal de fonctionnement AC-15 380 V 400 V 415 V : Ie= 4 A, Contacts N/O = Normalement ouvert : 2 N/O (1 N/O au-dessus du micro-interrupteur pour les applications électroniques) , Contacts N/C = Normalement fermé : 2 NF (1 NF au-dessus du micro-interrupteur pour les applications électroniques), Type de montage : Fixation frontale, Pour utilisation avec : DILA(C)..., DILM(C)7..., DILM(C)9..., DILM(C)12..., DILM(C)15..., DILM(C)17..., DILM(C)25..., DILM(C)32..., DILM38..., DILMP20..., DILMP32..., DILMP45..., DILL..., DILMF8..., DILMF11..., DILMF14..., DILMF17..., DILMF25..., DILMF32..., Type : Contact auxiliaire de montage avant, Instructions : Contacts auxiliaires conventionnels 63/64 N/O et 71/72 N/F avec contacts opposés verrouillés, conformément à l’annexe L de la norme IEC/EN 60947-5-1 , à l’intérieur des modules de contacts auxiliaires et pour les contacts auxiliaires intégrés dans les unités DILM 7 - DILM32 (pas les micro-interrupteurs), Tous les contacts auxiliaires N/C (y compris les microrupteurs 81/82 N/F) peuvent être utilisés comme contact miroir tel que défini dans l’annexe F de la norme IEC/EN 60947-4-1 (pas de rupture tardive NC), Numéro de code et version de la combinaison Numéro distinctif : 51E, 42, 33

Plus de détails


Appareillage industriel basse tension > Bloc de contact auxiliaire

Contacteurs jusqu'à 170A

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $190.92
Prix unitaire: $38.18
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series DILA Accessory Auxiliary contact module
Catalog Number
139580
Model Code
DILA-XHIR22
EAN
4015081363582
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
36 mm
Product Weight
0.05 kg
Certifications
CE
UL File No.: E29184
VDE 0660
CSA Class No.: 3211-03
UL 508
IEC/EN 60947
CSA
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
UL

Features & Functions

Features
Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)
Functions
For electronic applications
For standard applications
Fitted with:
Switching elements according to EN 50005
Interlocked opposing contacts
Number of poles
Four-pole
Electric connection type
Screw connection

General

Degree of protection
IP20
Shock resistance
5 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
7 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Lifespan, electrical
1,300,000 Operations (at 230 V, AC-15, 3 A)
1,300,000 Operations (at DC-12, 24 V / 50 mA)
Lifespan, mechanical
10,000,000 Operations (DC operated)
10,000,000 Operations (AC operated)
Model
Top mounting
Mounting method
Front fastening
Operating frequency
9000 Operations/h
Overvoltage category
III
Pollution degree
3
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Type
Front mounting auxiliary contact

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (flexible with ferrule)
2 x (0.75 - 1.5) mm², Screw terminals
1 x (0.75 - 1.5) mm², Screw terminals
Terminal capacity (solid)
2 x (0.75 - 2.5) mm², Screw terminals
1 x (0.75 - 2.5) mm², Screw terminals
Terminal capacity (solid/stranded AWG)
18 - 14, Screw terminals
Screw size
M3.5, Terminal screw
Screwdriver size
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
1.2 Nm, Screw terminals

Electrical rating

Conventional thermal current ith at 60°C (3-pole, open)
16 A
Conventional thermal current ith of auxiliary contacts (1-pole, open)
0.5 A
Rated operational current (Ie)
0.25 A at 220 V, DC L/R ≤ 50 ms (with 3 contacts in series)
2.5 A at 24 V, DC L/R ≤ 50 ms (with 3 contacts in series)
0.1 A at AC-12, 240 V
0.3 A at DC-12, 60 V
10 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
1 A at 60 V, DC L/R ≤ 50 ms (with 3 contacts in series)
0.5 A at 110 V, DC L/R ≤ 50 ms (with 3 contacts in series)
3 A at 110 V, DC L/R ≤ 15 ms (with 1 contact in series)
1 A at 220 V, DC L/R ≤ 15 ms (with 1 contact in series)
6 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
0.5 A at DC-12, 24 V
10 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series)
Rated operational current (Ie) - min
1 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
4 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
4 A
Rated operational current (Ie) at AC-15, 500 V
1.5 A
Rated operational current (Ie) at DC-13, 60 V
1 A
Rated operational current (Ie) at DC-13, 110 V
0.5 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.25 A
Rated operational voltage (Ue) - min
3 V
Rated operational voltage (Ue) at DC - max
60 V
Rated insulation voltage (Ui)
690 V
Rated operational voltage (Ue) at AC - max
500 V
Short-circuit protection rating
Max. 10 A gG/gL, Fuse, Without welding, Auxiliary contacts
Short-circuit protection rating without welding
1.6 A gG/gL, Max. Fuse, Electrical specifications for microswitch auxiliary contacts 53-54 and 81-82
10 A gG/gL, 500 V, Max. Fuse, Contacts
Safe isolation
400 V AC, Between auxiliary contacts, According to EN 61140
400 V AC, Between coil and auxiliary contacts, According to EN 61140
Switching capacity (auxiliary contacts, general use)
0.1 A, 250 V DC, (UL/CSA)

Communication

Connection type
Screw connection

Contacts

Code number
33 in combination with DILA(C)-22
42 in combination with DILA(C)-31
51E in combination with DILA(C)-40
Control circuit reliability
λ < 1/10⁸ (1 failure at 100,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
λ < 5.3 x 1/10⁸ (1 failure at 19,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 1 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
2

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.16 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 139580 Appareillage industriel basse tension (EC000041)
Caractéristique Valeur
Nombre de contacts en tant qu'inverseurs (EF008257) 0
Nombre de contacts en tant que contacts à fermeture (EF008256) 2
Nombre de contacts en tant que contacts à ouverture (EF008255) 2
Nombre d'interrupteurs de signal d'erreur (EF007613) 0
Courant de fonctionnement nominal CA-15, 230 V (EF001385) 4 A
Finition du raccordement électrique (EF003961) Borne à vis
Modèle (EF000010) Relevable
Type de montage (EF000003) Fixation frontale
Douille (EF000048) Sans
