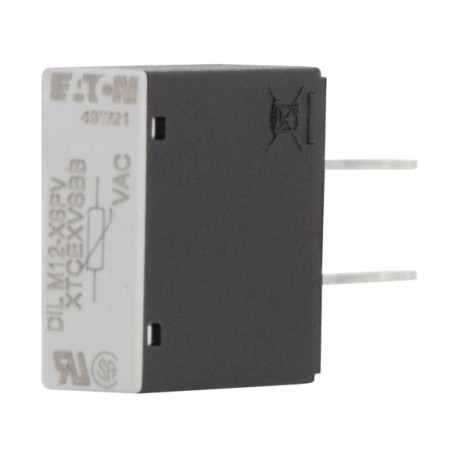

DILM12-XSPV48 281208 Y7-281208 EATON ELECTRIC Module à varistance, 24-48VAC, pour DILA, M7-12 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

DILM12-XSPV48 281208 Y7-281208 EATON ELECTRIC Module à varistance, 24-48VAC, pour DILA, M7-12

DILM12-XSPV48

281208

Y7-281208

EATON-MOELLER

10

Module à varistance, 24-48VAC, pour DILA, M7-12

DILM12-XSPV48

Eaton Moeller® series DILM Varistor suppressor circuit, 24 - 48 AC V, For use with: DILM7 - DILM15, DILMP20, DILA

Circuit suppresseur de varistance, Accessoires : Circuit suppresseur, Tension : Us 24 - 48 AC V, À utiliser avec : DILM7 - DILM15, DILMP20, DILA

Plus de détails


Appareillage industriel basse tension > Limiteur de surtension

Contacteurs jusqu'à 170A

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $148.19
Prix unitaire: $14.82
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series DILM varistor suppressor circuit
Catalog Number
281208
Model Code
DILM12-XSPV48
EAN
4015082812089
Product Length/Depth
48 mm
Product Height
25 mm
Product Width
9 mm
Product Weight
0.005 kg
Certifications
CSA Class No.: 3211-07
UL 508
CSA
IEC/EN 60947-4-1
UL Category Control No.: NKCR2, NKCR8
UL File No.: E29184
UL Recognized
CE
CSA-C22.2 No. 14-05
CSA File No.: 256465
Catalog Notes
With DC operated contactors and with DILM115 and DILM150 the suppressor is integrated.

Features & Functions

Functions
Varistor (voltage-sensitive resistor)

General

Product category
Accessories
Used with
DILM12-XSPV48
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Magnet system

Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 50 Hz - max
48 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
48 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 281208 Appareillage industriel basse tension (EC000683)
Caractéristique Valeur
Fonction (EF000030) Varistance
Type de tension de fonctionnement (EF005294) CA
Tension de fonctionnement CA 50 Hz (EF008206) 24 V
Tension de fonctionnement CA 60 Hz (EF008207) 24 V
Tension de fonctionnement CC (EF008208) 0 V
Avec affichage LED (EF005950) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM12-XSPV48 Y7-281208 281208 DE_276371.pdf 1 Mbytes DILM12-XSPV48 Y7-281208 281208 DE_276371.pdf
