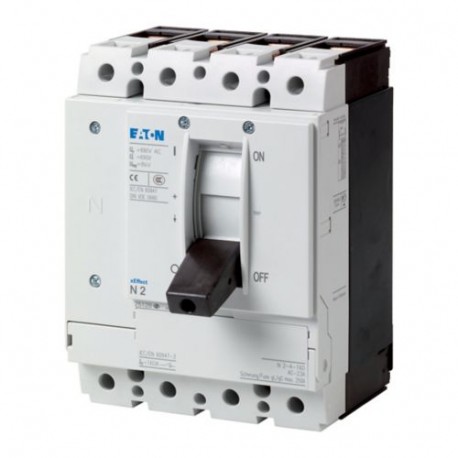

N2-4-200-S1-DC 127733 Y7-127733 EATON ELECTRIC Interrupteur-sectionneur 4p 200A 1000VDC
N2-4-200-S1-DC
127733
Y7-127733
EATON-MOELLER
Interrupteur-sectionneur 4p 200A 1000VDC
N2-4-200-S1-DC
Eaton Moeller series NZM - Molded Case Circuit Breaker. Switch-disconnector 4p 200A 1000VDC
Interrupteurs-sectionneurs N.. Le courant continu dans la version spéciale jusqu’à 1500 V CC peut être utilisé sur 1 ou 2 pôles. Ils respectent les propriétés d’isolation même pour les réseaux informatiques mis à la terre. Les accessoires, tels que les kits de ponts, les bornes de raccordement et les poignées rotatives d’accouplement de porte, permettent une installation individuelle dans les systèmes de distribution les plus variés. Les interrupteurs auxiliaires, les déclencheurs de tension et les opérateurs à distance facilitent la signalisation et l’automatisation. Remarques : caractéristiques principales de l’interrupteur, y compris l’entraînement positif selon IEC/EN 60204 et VDE 0113. Caractéristiques d’isolement selon IEC/EN 60947-3 et VDE 0660 . Type de borne : un raccordement en série est nécessaire pour la commutation à 2 pôles selon les possibilités de raccordement spécifiées. Voir les accessoires kits de pont. L’interrupteur ne peut pas être combiné avec des unités enfichables / débrochables et/ou une connexion à l’arrière.
Appareillage industriel basse tension > Interrupteur-sectionneur
Commutateurs automatiques à boîtier moulé NZM
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller series NZM switch-disconnector
Catalog Number
127733
Model Code
N2-4-200-S1-DC
EAN
4015081251438
Product Length/Depth
149 mm
Product Height
184 mm
Product Width
140 mm
Product Weight
2.878 kg
Compliances
RoHS conform
Certifications
IEC
Spécifications du produit
Type
DC switch-disconnectorSwitch-disconnector
Special features
IEC/EN 60947-3CCC China Compulsory CertificateMain switch characteristics including positive drive to IEC/EN 60204 and VDE 0113.Isolating characteristics to IEC/EN 60947-3 and VDE 0660.N switch-disconnectors can be combined with NZM...-XU, NZM...-XA shunt releases and auxiliary contacts as well as with NZM...-XR... remote operator.For DC switching, all 4 contacts must be connected in series. Refer to the information on jumper kit accessories.Supplied as standard: Screw connectionbox terminal optional.When working with ungrounded systems (e.g., IT), the installation must ensure that a double ground fault will be impossible.Switch can not be combined with plug-in/withdrawable units and/or connection on rear.N4-4-...-S15-DC feeder unit and outgoer from the bottom only.Lifespan, mechanical: of which max. 50 % trip by shunt/undervoltage releaseRated current = rated uninterrupted current: 200 AValues for rated uninterrupted current at 65 °C include jumpers.
Application
Open areasUtility buildings
Amperage Rating
200 A
Voltage rating
1000 V - 1000 V
Circuit breaker frame type
N2
Features
Remote operation with shunt releases / remote operator
Version as emergency stop installation
Version as main switch
Version as maintenance-/service switch
Motor drive optional
Version as emergency stop installation
Version as main switch
Version as maintenance-/service switch
Motor drive optional
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
3
Mounting Method
Ground mounting
Built-in device fixed built-in technique
Distribution board installation
Fixed
Intermediate mounting
Built-in device fixed built-in technique
Distribution board installation
Fixed
Intermediate mounting
Equipment heat dissipation, current-dependent
42 W
Utilization category
DC-22 A
Rated short-time withstand current (Icw)
3.6 kA
Degree of protection
IP20
Electrical connection type of main circuit
Screw connection
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
40 °C
Current rating (Iu) at 40°C with terminal jumpers
200 A
Current rating (Iu) at 65°C with terminal jumpers
200 A
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Rated insulation voltage (Ui)
1250 V
Rated operating power at AC-23, 400 V
0 kW
Rated operating power at AC-3, 400 V
0 kW
Switch positions
I, +, 0
Lifespan, mechanical
20000 operations
Overvoltage category
III
Rated operational current
200 A (DC 22-A)
Degree of protection (IP), front side
IP20
Number of poles
Four-pole
Terminal capacity (copper strip)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
Max. 8 segments of 15.5 mm x 0.8 mm (2x) at box terminal
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 24 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Max. 8 segments of 15.5 mm x 0.8 mm (2x) at box terminal
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 24 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Handle color
Black
Functions
Voltage release optional
Photovoltaic applications
Interlockable
Disconnectors/main switches
Photovoltaic applications
Interlockable
Disconnectors/main switches
Number of switches
1
Rated conditional short-circuit current (Iq)
0 kA
Rated conditional short-circuit current with back-up fuse
200 AgR
15 kA at 1000 V
15 kA at 1000 V
Rated operating voltage (Ue) at AC - max
0 V
Rated operational current for specified heat dissipation (In)
200 A
Rated permanent current at AC-21, 400 V
0 A
Rated permanent current at AC-23, 400 V
0 A
Rated short-time withstand current (t = 1 s)
3.6 kA
Switching power at 400 V
0 kW
Handle type
Rocker lever
Number of operations per hour - max
120
Standard terminals
Screw terminal
Short-circuit protective device fuses - max
200 A gR
Terminal capacity (copper busbar)
Min. 16 mm x 5 mm direct at switch rear-side connection
Max. 24 mm x 8 mm direct at switch rear-side connection
M8 at rear-side screw connection
Max. 24 mm x 8 mm direct at switch rear-side connection
M8 at rear-side screw connection
Terminal capacity (copper solid conductor/cable)
4 mm² - 16 mm² (2x) at box terminal
4 mm² - 16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
4 mm² - 16 mm² (1x) at box terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
4 mm² - 16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
4 mm² - 16 mm² (1x) at box terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
Terminal capacity (aluminum solid conductor/cable)
16 mm² (1x) at tunnel terminal
Terminal capacity (copper stranded conductor/cable)
25 mm² - 185 mm² (1x) direct at switch rear-side connection
25 mm² - 70 mm² (2x) at box terminal
25 mm² - 185 mm² (1x) at tunnel terminal
25 mm² - 70 mm² (2x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) at box terminal
25 mm² - 70 mm² (2x) at box terminal
25 mm² - 185 mm² (1x) at tunnel terminal
25 mm² - 70 mm² (2x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) at box terminal
Terminal capacity (aluminum stranded conductor/cable)
25 mm² - 185 mm² (1x) at tunnel terminal
| Caractéristique | Valeur |
|---|---|
| Finition interrupteur général (EF006981) | Oui |
| Finition interrupteur de maintenance/réparation (EF006986) | Oui |
| Finition interrupteur de sécurité (EF006985) | Non |
| Finition interrupteur de dispositif d'arrêt d'urgence (EF006959) | Oui |
| Finition de l'inverseur (EF009408) | Non |
| Nombre de commutateurs (EF005586) | 1 |
| Tension de fonctionnement nominale max. Ue en CA (EF007355) | 0 V |
| Tension de fonctionnement normale (EF001435) | 1000 V |
| Courant permanent nominal, CA-21, 400 V (EF011777) | 0 A |
| Courant permanent nominal , CA-21, 400 V (EF009165) | 0 A |
| Puissance de fonctionnement nominale, CA-3, 400 V (EF001364) | 0 kW |
| Courant nominal de courte durée admissible Icw (EF007050) | 3.6 kA |
| Puissance de fonctionnement nominale, CA-23, 400 V (EF007027) | 0 kW |
| Puissance de commutation à 400 V (EF009166) | 0 kW |
| Intensité de court-circuit nominale conditionnelle Iq (EF001444) | 0 kA |
| Nombre de pôles (EF001391) | 4 |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 0 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 0 |
| Nombre de contacts auxiliaires à deux directions (EF003531) | 0 |
| Commande motorisée en option (EF007386) | Oui |
| Commande motorisée intégrée (EF006697) | Non |
| Déclencheur voltmétrique en option (EF007491) | Oui |
| Type de construction de l'appareil (EF008240) | Technique d'encastrement fixe pour appareil encastré |
| Adapté à une fixation frontale à 4 trous (EF007247) | Non |
| Adapté à une fixation frontale centrale (EF007248) | Non |
| Adapté à un montage en distributeur (EF007262) | Oui |
| Adapté à un montage intermédiaire (EF007264) | Oui |
| Couleur de l'élément d'actionnement (EF007167) | Noir |
| Finition de l'élément d'actionnement (EF006976) | Levier |
| Verrouillable (EF006281) | Oui |
| Type de raccordement du circuit principal (EF006819) | Borne à vis |
| Avec un câblage préparé (EF016444) | Non |
| Classe de protection (IP), face avant (EF003118) | IP20 |
| Classe de protection (NEMA) (EF011959) | Autre |
| Largeur (EF000008) | 140 mm |
| Hauteur (EF000040) | 184 mm |
| Profondeur (EF000049) | 149 mm |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| N2-4-200-S1-DC Y7-127733 127733 ES_154940.pdf | 8 Mbytes |
|
