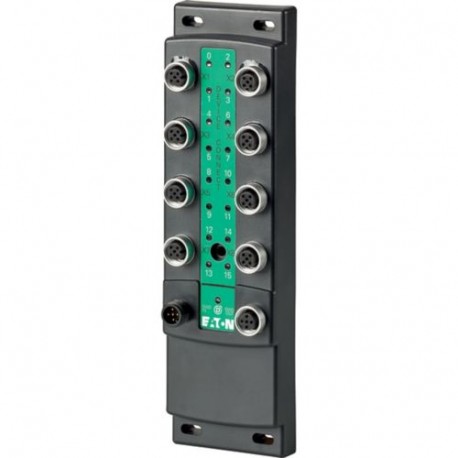

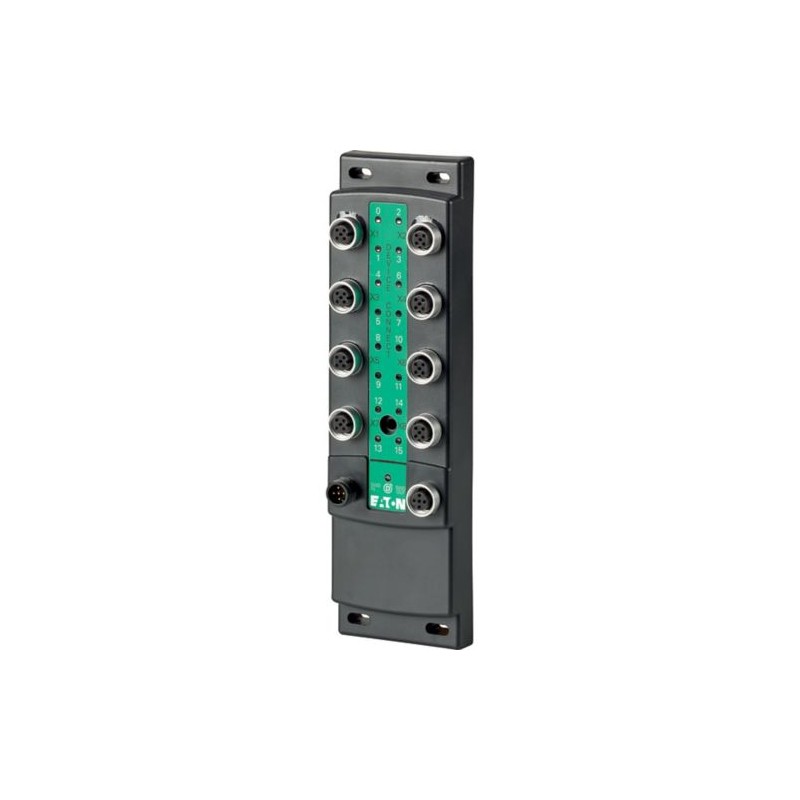

EU8E-SWD-16DD 174750 Y7-174750 EATON ELECTRIC Module-bloc SWD, module d'entrée/sortie IP69K, 24 V DC, 16 ent..
EU8E-SWD-16DD
174750
Y7-174750
EATON-MOELLER
Module-bloc SWD, module d'entrée/sortie IP69K, 24 V DC, 16 entrées/sorties paramétrables avec alimentation, 8 connecteurs femelles E/S M12
EU8E-SWD-16DD
Eaton EU8E SWD Block module I/O module IP69K, 24 V DC, 16 parameterizable inputs/outputs with power supply, 8 M12 I/O sockets
Commande industrielle API > Bus de terrain, périphérie déc. - module d'entrées/sorties numérique
Smartwire Darwin
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton EU8E Digital module
Catalog Number
174750
Model Code
EU8E-SWD-16DD
EAN
4015081712366
Product Length/Depth
34 mm
Product Height
212.6 mm
Product Width
61.6 mm
Product Weight
0.32 kg
Certifications
CSA
UL
IEC/EN 61131-2
UL
IEC/EN 61131-2
Features & Functions
Electric connection type
Screw connection
Features
Fieldbus connection over separate bus coupler possible
Short-circuit protection (sensor supply)
Digital inputs configurable
Digital outputs configurable
Overload protection (sensor supply)
Overload proof (with diagnostics)
Short-circuit protection (sensor supply)
Digital inputs configurable
Digital outputs configurable
Overload protection (sensor supply)
Overload proof (with diagnostics)
Functions
Short-circuit protection, outputs available
For connection of digital I/O signals
For connection of digital I/O signals
General
Current consumption
70 mA, Max. current consumption per M12 I/O plug, Sensor supply, SmartWire-DT network
231 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
231 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
Degree of protection
IP69K
Mounting method
Screw fixing (M4)
Wall mounting/direct mounting
Wall mounting/direct mounting
Overvoltage category
II
Pollution degree
3
Product category
SmartWire-DT slave
Type
Digital modules
Voltage type
DC
Ambient conditions, mechanical
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
30 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: permissible
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Electro magnetic compatibility
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Surge rating
0.5 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Electrical rating
Input current
4 mA (at 24 V DC, Digital inputs)
Input current at signal 1
4 mA
Output current
0.5 A
Power loss
5.2 W
Short-circuit protection
Outputs are short-circuit proof
Short-circuit tripping current
Max. 1.2 A over 3 ms, Digital semi-conductor outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Communication
Connection to SmartWire-DT
Yes
Connection type
5-pin M12 socket (A-keyed), Supply and I/O sensor
SWD-IN : M12 plug (A-keyed), 5 pole
SWD-OUT: M12 socket (A-keyed), 5 pole
SWD-IN : M12 plug (A-keyed), 5 pole
SWD-OUT: M12 socket (A-keyed), 5 pole
Data transfer rate
Setting automatically
2 MBit/s, SmartWire-DT
2 MBit/s, SmartWire-DT
LED indicator
Status indication of SmartWire-DT network: Green LED
Status indication of input: Yellow LED
Status indication of display outputs: Yellow LED
Status indication of input: Yellow LED
Status indication of display outputs: Yellow LED
Protocol
Other bus systems
Station
SmartWire-DT slave, SmartWire-DT network
Input/Output
Input
Max. 16 Freely configurable inputs/outputs
Input delay
< 0.2 ms
Lamp load
≤ 3 W (at RLL)
Limit value type 1
Low: < 5 V DC
High: > 15 V DC
High: > 15 V DC
Number of inputs (digital)
16
Number of outputs (digital)
16
Output
Max. 16 Freely configurable inputs/outputs
Max. 16 Transistor Outputs
Max. 16 Transistor Outputs
Switching capacity
IEC/EN 60947-5-1, utilization category DC-13, Digital outputs
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Output to input: no
Input to input: no
Between Outputs to SmartWire-DT: no
Inputs for SmartWire-DT: no
Input to input: no
Between Outputs to SmartWire-DT: no
Inputs for SmartWire-DT: no
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
5.2 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
