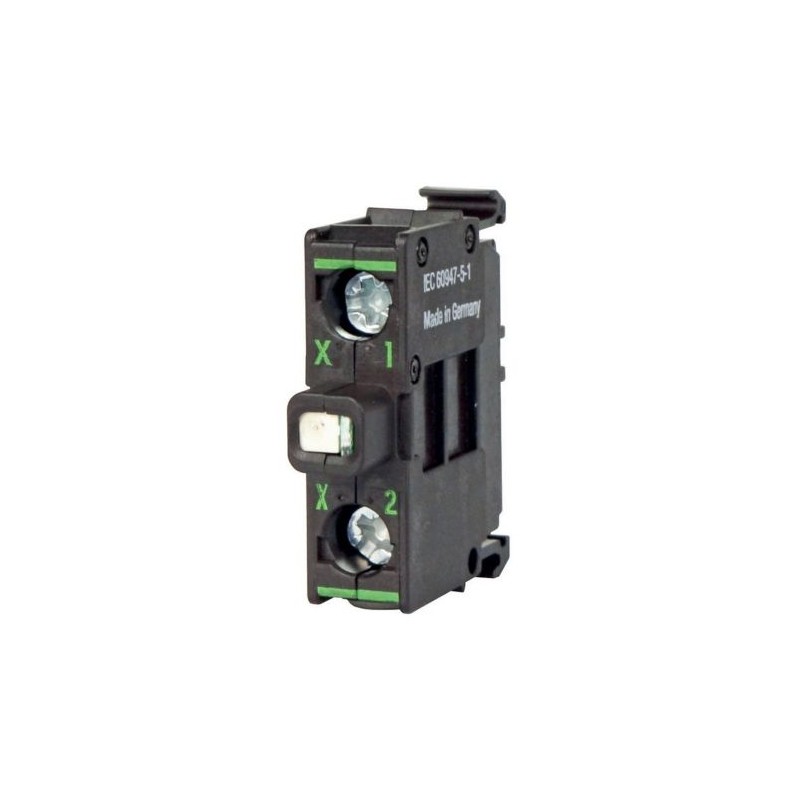

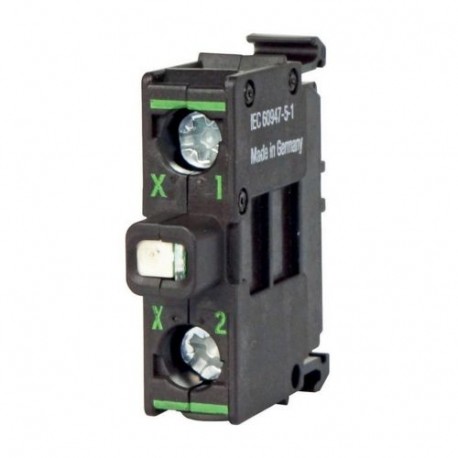

M22-LEDC230-W 216566 Y7-216566 EATON ELECTRIC Elément LED, blanc, fixation par l'arrière, 85-264VAC
M22-LEDC230-W
216566
Y7-216566
EATON-MOELLER
Elément LED, blanc, fixation par l'arrière, 85-264VAC
M22-LEDC230-W
Eaton Moeller® series M22 LED element, white, base fixing, 85-264VAC
Elément LED, Fixation : Fixation sur socle, Technique de raccordement : Bornes à vis, Tension nominale de fonctionnement : Ue= 85 - 264 V AC, 50/60 Hz V, Courant nominal de fonctionnement : Ie= 5 - 15 mA, Consommation électrique : Pmax.= 0,33 W, À 230 V, Couleur : Blanc, Degré de protection : IP20, Connexion à SmartWire-DT : non, Normes : IEC 60947-5-1
Appareillage industriel basse tension > Douille de lampe pour appareils de commande et de signalisation
Moyens de contrôle et de signalisation
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
| Product Name | Eaton Moeller® series M22 Accessory LED |
| Catalog Number | 216566 |
| Model Code | M22-LEDC230-W |
| EAN | 4015082165666 |
| Product Length/Depth | 38 mm |
| Product Height | 10 mm |
| Product Width | 37 mm |
| Product Weight | 0.011 kg |
| Compliances | CE Marked |
| Certifications | EN 60947-5 CSA Std. C22.2 No. 94-91 CSA Std. C22.2 No. 14-05 IEC 60947-5 UL 508 VDE CSA IEC 60947-5-1 CSA-C22.2 No. 14-05 UL Category Control No.: NKCR CE CSA File No.: 012528 CSA-C22.2 No. 94-91 CSA Class No.: 3211-03 UL File No.: E29184 IEC/EN 60947-5 UL |
Features & Functions
| Color | White |
| Fitted with: | Light source Diode |
| Light color | White |
General information
| Degree of protection | IP20 |
| Lifespan, electrical | 100,000 h (at 25°C, according to EN60064) |
| Operating torque | 0.8 Nm |
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Voltage type | AC |
Ambient conditions, mechanical
| Mounting position | As required |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 70 °C |
| Ambient storage temperature - min | 40 °C |
| Ambient storage temperature - max | 80 °C |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
Terminal capacities
| Terminal capacity (solid) | 0.75 - 2.5 mm² |
| Terminal capacity (stranded) | 0.5 - 2.5 mm² |
Electrical rating
| Power consumption | Max. 0.33 W |
| Rated insulation voltage (Ui) | 500 V |
| Rated operational current (Ie) - min | 5 mA |
| Rated operational current (Ie) - max | 15 mA |
| Rated operational voltage (Ue) at AC - max | 264 V |
| Rated operational voltage (Ue) at AC - min | 85 V |
| Rated operational voltage (Ue) at DC - max | 0 V |
| Rated operational voltage (Ue) at DC - min | 0 V |
Communication
| Connection to SmartWire-DT | No |
| Connection type | Base fixing |
Contacts
| Force for positive opening - min | 0 N |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 1 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Caractéristique | Valeur |
|---|---|
| Transfo intégré (EF001358) | Non |
| Avec résistance série intégrée (EF001399) | Non |
| Avec source lumineuse (EF005905) | Oui |
| Avec diode intégrée (EF001400) | Oui |
| Douille (EF000048) | Sans |
| Tension de fonctionnement nominale Ue à CA 50 Hz (EF007029) | 85 V |
| Tension de fonctionnement nominale Ue à CA 60 Hz (EF007030) | 85 V |
| Tension de fonctionnement nominale Ue en CC (EF007031) | 0 V |
| Type de tension d'actionnement (EF008242) | CA |
| Source lumineuse (EF002423) | LED |
| Type de raccordement du circuit auxiliaire (EF006820) | Borne à vis |
| Couleur de la source lumineuse (EF001402) | Blanc |
| Type de fixation (EF002442) | Fixation sur sol |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-LEDC230-W Y7-216566 216566 FR_216566.pdf | 83 Kbytes |
|
