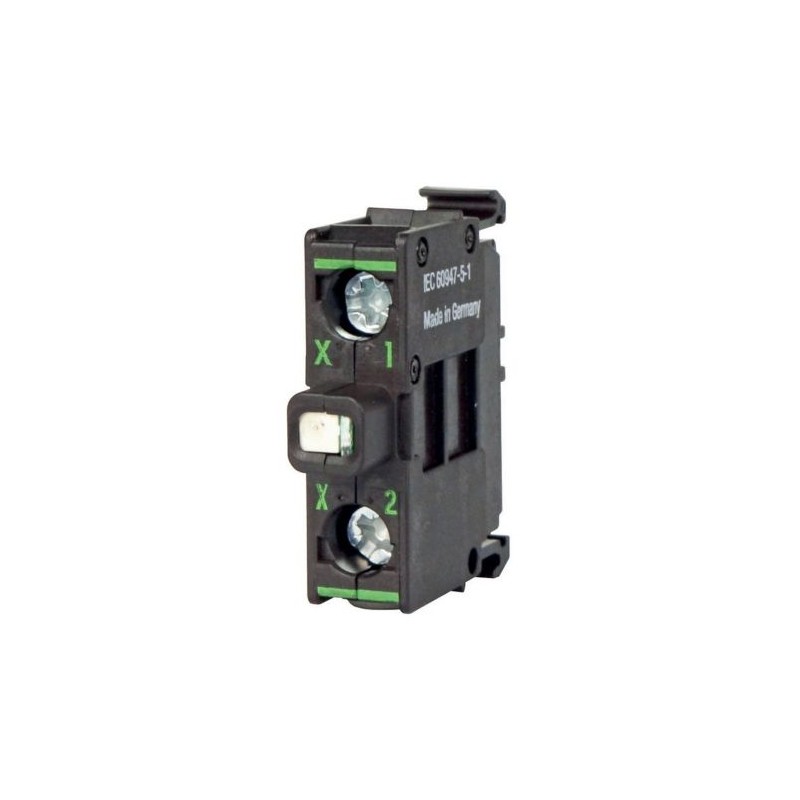

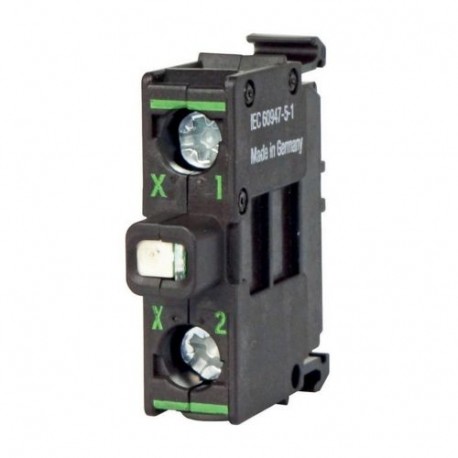

M22-LEDC230-W 216566 Y7-216566 EATON ELECTRIC M22-LEDC230-WQ Led 230v fixação posterior branca
M22-LEDC230-W
216566
Y7-216566
EATON-MOELLER
M22-LEDC230-WQ Led 230v fixação posterior branca
Elemento LED Branco Montagem Traseira 85-264 V Conexão de Parafuso AC
Eaton Moeller® series M22 LED element, white, base fixing, 85-264VAC
Elemento LED, Fixação: Fixação da base, Técnica de conexão: Terminais de parafuso, Tensão nominal de operação: Ue= 85 - 264 V AC, 50/60 Hz V, Corrente nominal de operação: Ie= 5 - 15 mA, Consumo de energia: Pmax.= 0,33 W, A 230 V, Cor: Branco, Tipo de proteção: IP20, Conexão ao SmartWire-DT: não, Normas: IEC 60947-5-1
Aparelhos elétricos de baixa tensão > Bloco de suporte da lâmpada para dispositivos de comando e sinalização
Auxiliares de controle e sinalização
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Moeller® series M22 Accessory LED |
| Catalog Number | 216566 |
| EAN | 4015082165666 |
| Product Length/Depth | 38 mm |
| Product Height | 10 mm |
| Product Width | 37 mm |
| Product Weight | 0.011 kg |
| Compliances | CE Marked |
| Certifications | EN 60947-5 CSA Std. C22.2 No. 94-91 CSA Std. C22.2 No. 14-05 IEC 60947-5 UL 508 VDE CSA IEC 60947-5-1 CSA-C22.2 No. 14-05 UL Category Control No.: NKCR CE CSA File No.: 012528 CSA-C22.2 No. 94-91 CSA Class No.: 3211-03 UL File No.: E29184 IEC/EN 60947-5 UL |
| Model Code | M22-LEDC230-W |
Especificações do produto
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Light source Diode |
| Pollution degree | 3 |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Connection to SmartWire-DT | No |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Ambient storage temperature - max | 80 °C |
| Ambient storage temperature - min | 40 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Operating torque | 0.8 Nm |
| Rated insulation voltage (Ui) | 500 V |
| Rated operational current (Ie) - max | 15 mA |
| Rated operational current (Ie) - min | 5 mA |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Rated operational voltage (Ue) at AC - max | 264 V |
| Rated operational voltage (Ue) at AC - min | 85 V |
| Rated operational voltage (Ue) at DC - max | 0 V |
| Rated operational voltage (Ue) at DC - min | 0 V |
| Static heat dissipation, non-current-dependent Pvs | 1 W |
| Color | White |
| Voltage type | AC |
| Fastening type | Floor fastening |
| Mounting position | As required |
| Light color | White |
| Connection type | Base fixing |
| Lamp type | LED |
| Overvoltage category | III |
| Connection type (auxiliary circuit) | Screw connection |
| Degree of protection | IP20 |
| Lamp holder | None |
| Power consumption | Max. 0.33 W |
| Lifespan, electrical | 100,000 h (at 25°C, according to EN60064) |
| Terminal capacity (stranded) | 0.5 - 2.5 mm² |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms |
| Terminal capacity (solid) | 0.75 - 2.5 mm² |
| Característica | Valor |
|---|---|
| Transformador integrado (EF001358) | Não |
| Com resistência de redução de tensão integrado (EF001399) | Não |
| Com fonte de luz (EF005905) | Sim |
| Com díodo integrado (EF001400) | Sim |
| Suporte da lâmpada (EF000048) | Nenhum |
| Tensão nominal Ue em CA 50 Hz (EF007029) | 85 V |
| Tensão nominal Ue em CA 60 Hz (EF007030) | 85 V |
| Tensão nominal Ue na CC (EF007031) | 0 V |
| Tipo de tensão para atuação (EF008242) | AC |
| Tipo de lâmpada (EF002423) | LED |
| Tipo de conexão do circuito auxiliar (EF006820) | Ligação com parafuso |
| Cor da fonte de luz (EF001402) | Branco |
| Tipo de aperto da fixação (EF002442) | Fixação de piso |
