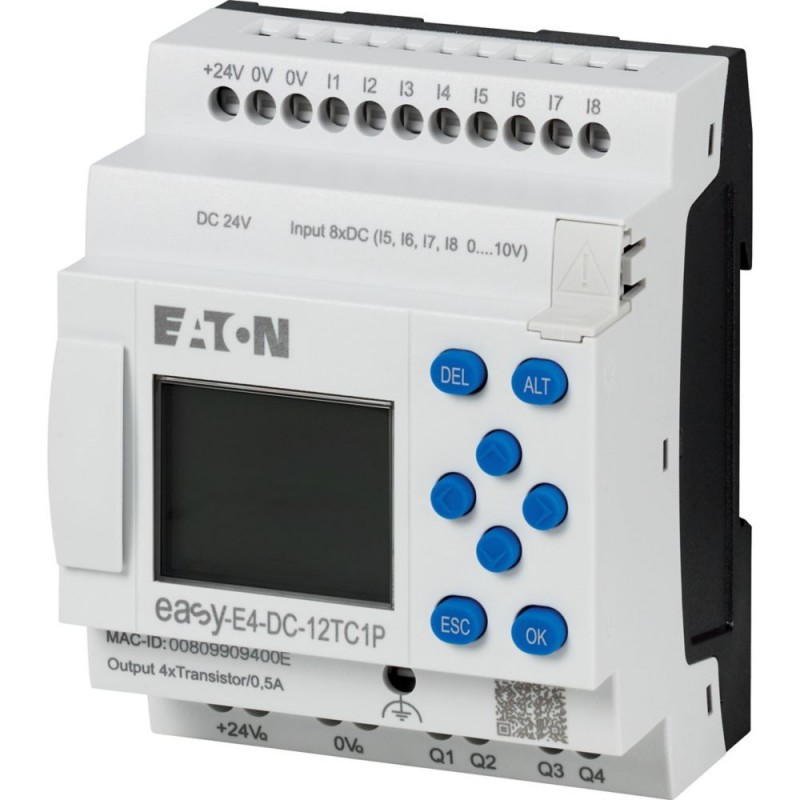

EASY-E4-DC-12TC1P 197506 Y7-197506 EATON ELECTRIC EASY-E4-DC-12TC1P
EASY-E4-DC-12TC1P
197506
Y7-197506
EATON-MOELLER
EASY-E4-DC-12TC1P
Eaton Moeller® series EASY Control relays easyE4 with display (expandable, Ethernet), 24 V DC, Inputs Digital: 8, of which can be used as analog: 4, push-in terminal
Relais de commande électronique avec une tension nominale de fonctionnement de 24 VDC. 8 entrées numériques avec 24 VDC sont disponibles, dont 4 entrées peuvent également être utilisées comme entrées analogiques et 4 entrées peuvent être utilisées comme compteurs haute vitesse. Le relais de commande dispose de 4 sorties transistors pour 24 VDC. Le relais de commande easy-E4 est équipé d’un écran, d’une horloge, d’une interface Ethernet intégrée et de bornes enfichables. Le relais de commande peut être étendu à l’aide d’extensions d’E/S numériques dans la série easyE4.
Commande industrielle API > Module logique
Easy E4 Nanocontrôleurs
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series EASY Control relay
Catalog Number
197506
Model Code
EASY-E4-DC-12TC1P
EAN
4015081940844
Product Length/Depth
58 mm
Product Height
90 mm
Product Width
72 mm
Product Weight
0.2 kg
Compliances
Eaton supports the product until its end of life
Certifications
IEC 60068-2-6
EN 55022
IEC/EN 61000-4-2
IEC 60068-2-27
EN 55011
IEC/EN 61000-4
UL Listed
UL Category Control No.: NRAQ, NRAQ7
IEC/EN 61131-2
IEC 60068-2-30
EN 61010
IEC/EN 61000-6-3
IEC/EN 61000-6-2
EN 50178
UL File No.: E205091
DNV GL
CE
UL hazardous location class I
UL hazardous location division 2
UL hazardous location group A (acetylene)
UL hazardous location group B (hydrogen)
UL hazardous location group C (ethylene)
UL hazardous location group D (propane)
EN 55022
IEC/EN 61000-4-2
IEC 60068-2-27
EN 55011
IEC/EN 61000-4
UL Listed
UL Category Control No.: NRAQ, NRAQ7
IEC/EN 61131-2
IEC 60068-2-30
EN 61010
IEC/EN 61000-6-3
IEC/EN 61000-6-2
EN 50178
UL File No.: E205091
DNV GL
CE
UL hazardous location class I
UL hazardous location division 2
UL hazardous location group A (acetylene)
UL hazardous location group B (hydrogen)
UL hazardous location group C (ethylene)
UL hazardous location group D (propane)
Catalog Notes
Accuracy of the real-time clock depending on ambient air temperature - fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible
Caractéristiques et fonctions
Features
Expandable
Networkable (Ethernet)
Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1 Q1 to Q4
Networkable (Ethernet)
Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1 Q1 to Q4
Fitted with:
Display
Timer
Keypad
Real time clock
Timer
Keypad
Real time clock
Functions
Thermal cutout
Indication
LCD-display used as Output status indication of Transistor outputs
LCD-display used as status indication of Digital inputs 24 V DC
LCD-display used as status indication of Digital inputs 24 V DC
Généralités
Degree of protection
IP20
Display type
Monochrome
Duty factor
100 % (Inductive load to EN 60947-5-1, With external suppressor circuit)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
Frequency counter
Pulse shape: Square (digital inputs 24 V DC)
Cable length: ≤ 20 m (screened, Digital inputs 24 V DC)
Counter frequency: 5 kHz (Digital inputs 24 V DC)
Number: 4 (I1, I2, I3, I4 - Digital inputs 24 V DC)
Pulse pause ratio: 1:1 (Digital inputs 24 V DC)
Cable length: ≤ 20 m (screened, Digital inputs 24 V DC)
Counter frequency: 5 kHz (Digital inputs 24 V DC)
Number: 4 (I1, I2, I3, I4 - Digital inputs 24 V DC)
Pulse pause ratio: 1:1 (Digital inputs 24 V DC)
Insulation resistance
According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Front build in possible
Rail mounting possible
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Front build in possible
Rail mounting possible
Operating frequency
Depending on the suppressor circuit (Inductive load to EN 60947-5-1, With external suppressor circuit, Max. switching frequency, max. duty factor)
Dependent on the cycle time of the basic device
Dependent on the cycle time of the basic device
Overvoltage category
III
Pollution degree
2
Product category
Control relays easyE4
Protocol
MODBUS
TCP/IP
TCP/IP
Residual current
0.1 mA (on signal "1" per channel)
Residual ripple
5 % (transistor outputs)
≤ 5 %
≤ 5 %
Resolution
Software
EASYSOFT-SWLIC/easySoft7
Type
easyE4 base device
Used with
easyE4
Voltage type
DC
Condtions ambiantes et mécaniques
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
Vertical
Horizontal
Horizontal
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
According to IEC/EN 60068-2-6
10 - 57 Hz, 0.15 mm constant amplitude
57 - 150 Hz, 2 g constant acceleration
10 - 57 Hz, 0.15 mm constant amplitude
57 - 150 Hz, 2 g constant acceleration
Conditions environnementales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201
Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)
Compatibilité électromagnétiques
Air discharge
8 kV
Burst impulse
2 kV, Signal cable
2 kV, Supply cable
According to IEC/EN 61000-4-4
2 kV, Supply cable
According to IEC/EN 61000-4-4
Contact discharge
6 kV
Electromagnetic fields
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class B (EN 61000-6-3)
Surge rating
0.5 kV, Supply cables, symmetrical, EASY…DC, power pulses (Surge), EMC
1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5 Level 4
1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5 Level 4
Voltage dips
≤ 10 ms, Bridging voltage dips
Sections raccordables
Terminal capacity
0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule
0.2 - 4 mm² (AWG 22 - 12), solid
0.2 - 4 mm² (AWG 22 - 12), solid
Caractéristiques électriques
Conventional thermal current ith of auxiliary contacts (1-pole, open)
0.5 A
Power consumption
2 W
Power loss
2 W
Rated operational voltage
20.4 - 28.8 V DC
20.4 - 28.8 V DC (Transistor outputs)
24 V DC (-15 %/+ 20 % - power supply)
24 V DC (transistor outputs)
24 V DC (digital inputs)
20.4 - 28.8 V DC (Transistor outputs)
24 V DC (-15 %/+ 20 % - power supply)
24 V DC (transistor outputs)
24 V DC (digital inputs)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Résistance aux courts-circuits
Short-circuit current
6.8 A, Transistor outputs
Short-circuit protection
≥ 1A (T), Fuse, Power supply
Yes, electronic (Q1 - Q4), Transistor outputs
Yes, electronic (Q1 - Q4), Transistor outputs
Short-circuit tripping current
0.7 ≤ Ie ≤ 1.7 per output, For Ra ≤ 10 mΩ, Depending on number of active channels and their load, Transistor outputs
Communication
Connection type
Ethernet: RJ45 plug, 8-pole
Push in terminals
Push in terminals
Data transfer rate
10/100 MBit/s
Câble
Cable length
30 m, screened, Analog inputs
100 m, unscreened, Digital inputs 12 V DC
100 m, unscreened, Digital inputs 24 V AC
100 m, unscreened, Digital inputs 12 V DC
100 m, unscreened, Digital inputs 24 V AC
Cable type
CAT5
Entrée/Sortie
Accuracy
± 2 s/day, Real-time clock to inputs (± 0.2 h⁄Year)
± 1 %, Repetition accuracy of timing relays (of values)
± 2 %, (I7, I8) ± 0.12 V, of actual value, within a single device (Analog Inputs)
± 3 %, of actual value, two easy devices (Analog Inputs)
± 1 %, Repetition accuracy of timing relays (of values)
± 2 %, (I7, I8) ± 0.12 V, of actual value, within a single device (Analog Inputs)
± 3 %, of actual value, two easy devices (Analog Inputs)
Conversions
Each CPU cycle, Analog inputs
Delay time
39 ms typ., Digital Inputs 100 - 240 V AC 50 Hz (I1 - I8), Delay time from 1 to 0, Debounce OFF
32 ms typ., Digital Inputs 100 - 240 V AC 60 Hz (I1 - I8), Delay time from 1 to 0, Debounce OFF
80 ms, Digital inputs 115/230 V AC 50 Hz (I7, I8), Delay time from 0 to 1, Debounce ON
0.5 ms typ., Digital Inputs 100 - 240 V DC (I1 - I8), Delay time from 1 to 0, Debounce OFF
39 ms typ., Digital Inputs 100 - 240 V AC 50 Hz (I1 - I8), Delay time from 0 to 1, Debounce OFF
32 ms typ., Digital Inputs 100 - 240 V AC 60 Hz (I1 - I8), Delay time from 0 to 1, Debounce OFF
0.5 ms typ., Digital Inputs 100 - 240 V DC (I1 - I8), Delay time from 0 to 1, Debounce OFF
32 ms typ., Digital Inputs 100 - 240 V AC 60 Hz (I1 - I8), Delay time from 1 to 0, Debounce OFF
80 ms, Digital inputs 115/230 V AC 50 Hz (I7, I8), Delay time from 0 to 1, Debounce ON
0.5 ms typ., Digital Inputs 100 - 240 V DC (I1 - I8), Delay time from 1 to 0, Debounce OFF
39 ms typ., Digital Inputs 100 - 240 V AC 50 Hz (I1 - I8), Delay time from 0 to 1, Debounce OFF
32 ms typ., Digital Inputs 100 - 240 V AC 60 Hz (I1 - I8), Delay time from 0 to 1, Debounce OFF
0.5 ms typ., Digital Inputs 100 - 240 V DC (I1 - I8), Delay time from 0 to 1, Debounce OFF
Incremental counter
Pulse shape: Square
Signal offset: 90°
Counter frequency: ≤ 5 kHz
Number of counter inputs: 2 (I1 + I2, I3 + I4)
Pulse pause ratio: 1:1
Value range: -2147483648 to +2147483647
Signal offset: 90°
Counter frequency: ≤ 5 kHz
Number of counter inputs: 2 (I1 + I2, I3 + I4)
Pulse pause ratio: 1:1
Value range: -2147483648 to +2147483647
Incremental encoder
Cable length: ≤ 20 m (screened)
Input
Voltage (DC)
Input current
80 mA
Input impedance
13.3 kΩ
Input voltage
Signal 0: ≤ 5 V DC (I1 - I8, Digital inputs, 24 V DC)
Number of inputs (analog)
4
Number of inputs (digital)
4
8
8
Number of outputs (analog)
0
Number of outputs (digital)
4
Output
Voltage
Current
4 Transistor Outputs
Parallel connection of max. 2 Transistor outputs
Current
4 Transistor Outputs
Parallel connection of max. 2 Transistor outputs
Output voltage
Max. 2.5 V (at status 0 per channel, transistor outputs)
U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs)
U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs)
Rapid counter inputs
1:1 (Pulse pause ratio)
10 kHz, Counter frequency
≤ 20 m (cable length, screened)
-2147483648 - 2147483647 (value range)
Square (pulse shape)
Number: 4 (I1, I2, I3, I4 - Digital inputs 24 V DC)
10 kHz, Counter frequency
≤ 20 m (cable length, screened)
-2147483648 - 2147483647 (value range)
Square (pulse shape)
Number: 4 (I1, I2, I3, I4 - Digital inputs 24 V DC)
Signal range
0 - 10 V DC, Analog inputs
Utilization factor
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
1 (Inductive load to EN 60947-5-1, With external suppressor circuit)
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
1 (Inductive load to EN 60947-5-1, With external suppressor circuit)
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
Sécurité
Explosion safety category for gas
None
Potential isolation
Between Analog inputs and Digital inputs: no
Between Transistor outputs: no
Between Transistor outputs: no
Protection against polarity reversal
Yes (Caution: A short circuit will result if 0 V or earth is applied to the outputs in the event that the supply voltage is connected to the wrong poles.)
Explosion safety category for dust
None
Vérification de la conception
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Static heat dissipation, non-current-dependent Pvs
2 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Tension d'alimentation CA 50 Hz (EF007532) | 0 V |
| Tension d'alimentation CA 60 Hz (EF007533) | 0 V |
| Tension d'alimentation CC (EF007534) | 20.4 V |
| Type de tension d'alimentation (EF002991) | CC |
| Courant de commutation (EF000188) | 0.5 A |
| Puissance absorbée (EF000346) | 2 W |
| Nombre d'entrées analogiques (EF001994) | 4 |
| Nombre d'entrées numériques (EF001995) | 0 |
| Nombre d'entrées numériques (EF001992) | 4 |
| Nombre de sorties numériques (EF001993) | 4 |
| Avec sortie de relais (EF003198) | Non |
| Nombre d'interfaces matérielles Industrial Ethernet (EF003020) | 1 |
| Nombre d'interfaces matérielles PROFINET (EF006932) | 0 |
| Nombre d'interfaces matérielles en série RS-232 (EF003021) | 0 |
| Nombre d'interfaces matérielles en série RS-422 (EF003022) | 0 |
| Nombre d'interfaces matérielles en série RS-485 (EF003023) | 0 |
| Nombre d'interfaces matérielles en série TTY (EF003024) | 0 |
| Nombre d'interfaces matérielles USB (EF003025) | 0 |
| Nombre d'interfaces matérielles parallèles (EF003026) | 0 |
| Nombre d'interfaces matérielles Wireless (EF006933) | 0 |
| Nombre d'autres interfaces matérielles (EF003027) | 0 |
| Avec interface optique (EF003028) | Non |
| supporte le protocole pour EtherCAT (EF017564) | Non |
| Protocole pris en charge pour TCP/IP (EF003050) | Oui |
| Protocole pris en charge pour PROFIBUS (EF003052) | Non |
| Protocole pris en charge pour CAN (EF003053) | Non |
| Protocole pris en charge pour INTERBUS (EF003054) | Non |
| Protocole pris en charge pour ASI (EF003051) | Non |
| Protocole pris en charge pour KNX (EF003055) | Non |
| Protocole pris en charge pour Modbus (EF003057) | Oui |
| Protocole pris en charge pour Data-Highway (EF003058) | Non |
| Protocole pris en charge pour DeviceNet (EF003059) | Non |
| Protocole pris en charge pour SUCONET (EF003060) | Non |
| Protocole pris en charge pour LON (EF003017) | Non |
| Protocole pris en charge pour PROFINET IO (EF007525) | Non |
| Protocole pris en charge pour PROFINET CBA (EF007524) | Non |
| Protocole pris en charge pour SERCOS (EF006657) | Non |
| Protocole pris en charge pour Foundation Fieldbus (EF007522) | Non |
| Protocole pris en charge pour EtherNet/IP (EF007521) | Non |
| Protocole pris en charge pour AS-Interface Safety at Work (EF007519) | Non |
| Protocole pris en charge pour DeviceNet Safety (EF007520) | Non |
| Protocole pris en charge pour INTERBUS-Safety (EF006662) | Non |
| Protocole pris en charge pour PROFIsafe (EF007526) | Non |
| Protocole pris en charge pour SafetyBUS p (EF007527) | Non |
| Protocole pris en charge pour autres systèmes de bus (EF003062) | Non |
| Standard radio Bluetooth (EF007178) | Non |
| Standard radio WLAN 802.11 (EF007179) | Non |
| Standard radio GPRS (EF008523) | Non |
| Standard radio GSM (EF008524) | Non |
| Standard radio UMTS (EF008525) | Non |
| Maître IO-Link (EF007298) | Non |
| Capacité de redondance (EF003156) | Non |
| Avec affichage (EF000458) | Oui |
| Classe de protection (IP) (EF005474) | IP20 |
| Appareil de base (EF007279) | Non |
| Évolutif (EF000119) | Oui |
| Appareil d'extension (EF007163) | Non |
| Avec minuterie (EF000256) | Oui |
| Montage possible sur barres profilées (EF003972) | Oui |
| Montage mural/direct possible (EF007020) | Non |
| Encastrement frontal possible (EF007016) | Oui |
| Montage sur rack possible (EF007018) | Non |
| Adapté aux fonctions de sécurité (EF001597) | Non |
| SIL conformément à IEC 61508 (EF009889) | Sans |
| Niveau de performance selon EN ISO 13849-1 (EF007399) | Sans |
| Matériel associé (Ex ia) (EF004141) | Non |
| Matériel associé (Ex ib) (EF004142) | Non |
| Catégorie de protection contre les explosions pour le gaz (EF003997) | Sans |
| Catégorie de protection contre les explosions pour la poussière (EF003998) | Sans |
| certifié pour zone à risque UL classe I (EF017622) | Oui |
| certifié pour zone à risque UL classe II (EF017625) | Non |
| certifié pour zone à risque UL classe III (EF017627) | Non |
| certifié pour zone à risque UL division 1 (EF017628) | Non |
| certifié pour zone à risque UL division 2 (EF017629) | Oui |
| certifié pour zone à risque UL groupe A (acétylène) (EF017632) | Oui |
| certifié pour zone à risque UL groupe B (hydrogène) (EF017633) | Non |
| certifié pour zone à risque UL groupe C (éthylène) (EF017635) | Oui |
| certifié pour zone à risque UL groupe D (propane) (EF017636) | Oui |
| certifié pour zone à risque UL groupe E (poussière de métal) (EF017637) | Non |
| certifié pour zone à risque UL groupe F (poussière carbonée) (EF017638) | Non |
| certifié pour zone à risque UL groupe G (poussière non conductrice) (EF017639) | Non |
| Largeur (EF000008) | 72 mm |
| Hauteur (EF000040) | 90 mm |
| Profondeur (EF000049) | 58 mm |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON EASY E4 EN.pdf | 2 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EASY-E4-DC-12TC1P Y7-197506 197506 PT_199509.pdf | 390 Kbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
