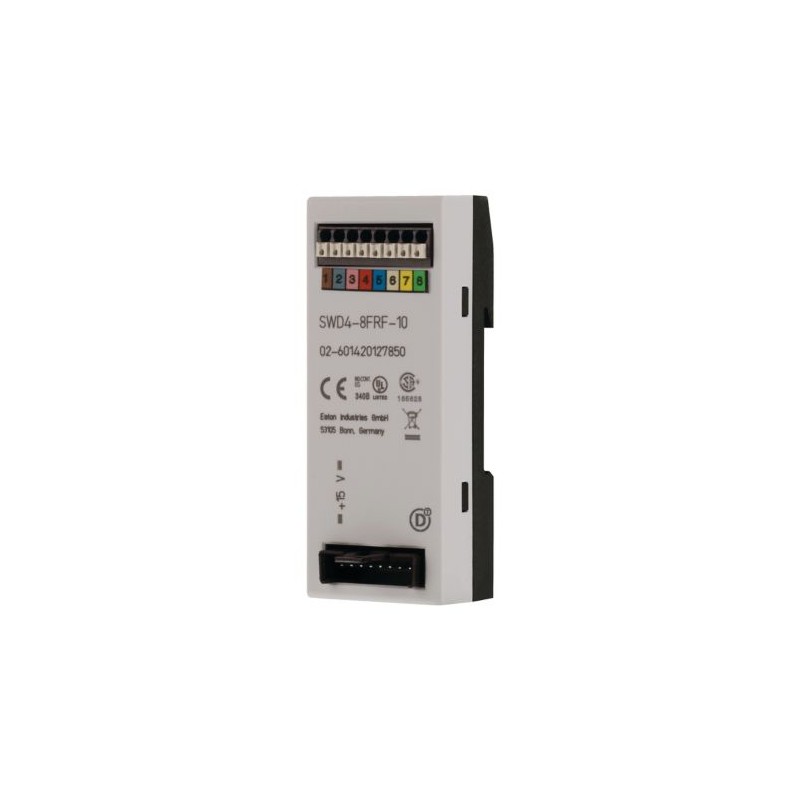

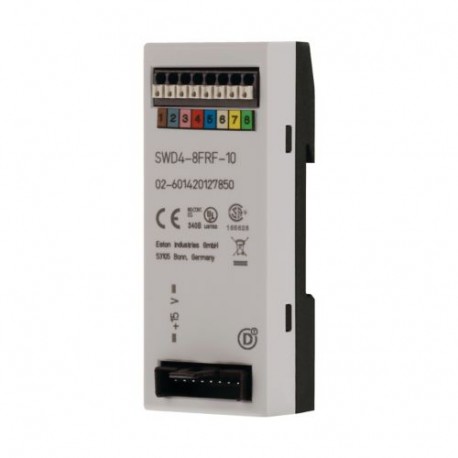

SWD4-8FRF-10 121377 Y7-121377 EATON ELECTRIC Adaptateur pour câbles, SmartWire-DT, câble plat câble rond Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

SWD4-8FRF-10 121377 Y7-121377 EATON ELECTRIC Adaptateur pour câbles, SmartWire-DT, câble plat câble rond

SWD4-8FRF-10

121377

Y7-121377

EATON-MOELLER

Adaptateur pour câbles, SmartWire-DT, câble plat => câble rond

SWD4-8FRF-10

Eaton SWD4 Cable adapter, SmartWire-DT, flat to round cable

L’adaptateur de câble SmartWire-DT permet la transition entre le câble plat SWD4-LF SWD et le SWD4-... Câble rond LR8-24, connexion câble plat SWD via câble plat SWD4-8MF2 8 pôles

Plus de détails


Commande industrielle API > Accessoires pour commandes

Smartwire Darwin

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $84.48
Prix unitaire: $84.48
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton SWD4 Accessory Cable adapter
Catalog Number
121377
Model Code
SWD4-8FRF-10
EAN
4015081192069
Product Length/Depth
36 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.041 kg
Certifications
CSA Class No.: 3211-07
UL File No.: E29184
CSA File No.: 2324643
EN 50178
UL
UL Category Control No.: NKCR
IEC/EN 61131-2
CSA
Catalog Notes
not relevant

General

Degree of protection
IP20
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Product category
SmartWire-DT accessories
Type

Ambient conditions, mechanical

Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Climatic environmental conditions

Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: prevent with appropriate measures
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
0 - 95 % (non-condensing, IEC/EN 60068-2-30)

Electro magnetic compatibility

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD

Communication

Connection to SmartWire-DT
Yes
Connection type
Push in terminals
Connection 1: Plug, 8-pole

Input/Output

Number of insertion cycles
200

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 121377 Commande industrielle API (EC002584)
Caractéristique Valeur
Type d'accessoire électrique (EF005722) Prise
Type d'accessoire mécanique (EF005994) Autre
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf 26 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SWD4-8FRF-10 Y7-121377 121377 ES_174753.pdf 3 Mbytes SWD4-8FRF-10 Y7-121377 121377 ES_174753.pdf
