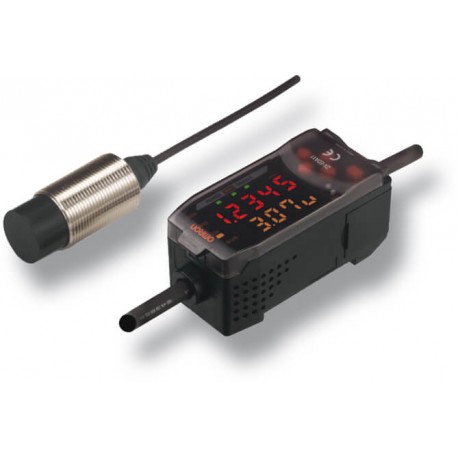

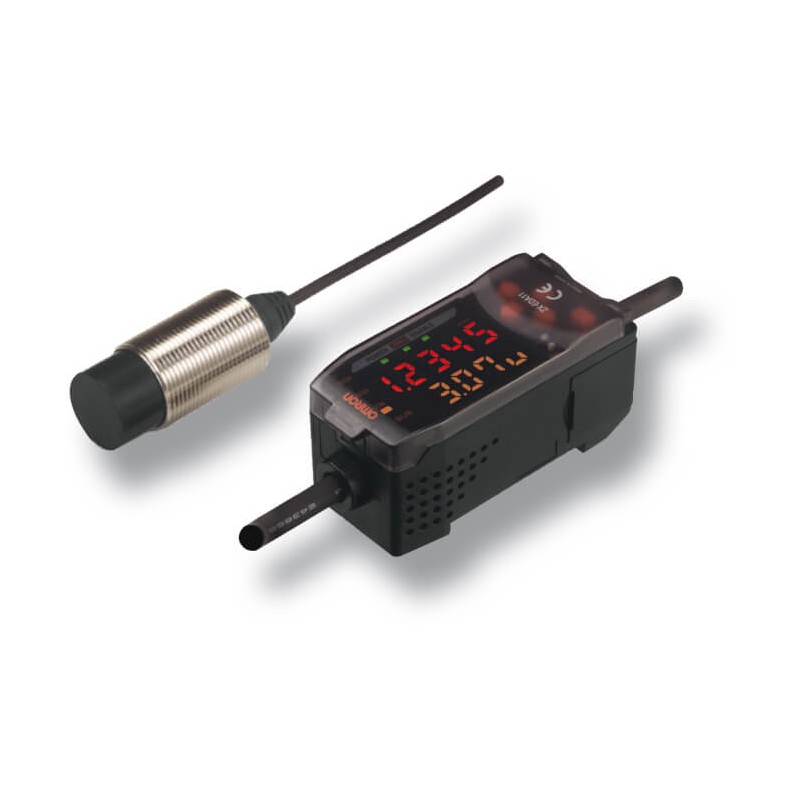

ZX-CAL2 ZX 1008D ZXCAL2 OMRON Unidad de cálculo para conexión multiple

Cylindrical

3 dia. × 18 mm

0.5 mm

1 μm

ZX-EDR5T

5.4 dia. × 18 mm

1 mm

ZX-ED01T2

8 dia. × 22 mm

2 mm

ZX-ED02T2

Screw-shaped

M10×22 mm

2 mm

ZX-EM02T2

M18×46.3 mm

7 mm

ZX-EM07MT2

Flat

30×14×4.8 mm

4 mm

ZX-EV04T2,3

Heat-resistant, cylindrical

M12×22 mm

2 mm

ZX-EM02HT4

DC

NPN

ZX-EDA11

PNP

ZX-EDA41

Calculating unit

ZX-CAL2

Attached to each sensor head

ZX-XBE1

For DIN track mounting

ZX-XBE2

ZX-series communications interface unit

ZX-SF11

ZX-series communications interface unit

+ setup software (CD-ROM)

ZX-SFW11EV35

ZX-series sensor setup and logging software (CD-ROM)

ZX-SW11EV3

1 m

ZX-XC1A

4 m

ZX-XC4A

8 m

ZX-XC8A

Measurement range

0 to 0.5 mm

0 to 1 mm

0 to 2 mm

0 to 7 mm

0 to 4 mm

0 to 2 mm

Sensing object

Magnetic metals
(Measurement ranges and linearities are different for non-magnetic metals. Refer to engineering data on B-67.)

Standard reference object

18 × 18 × 3 mm

30 × 30 × 3 mm

60 × 60 × 3 mm

45 × 45 × 3 mm

Material: Ferrous (S50C)

Resolution6

1 µm

Linearity7

±0.5% F.S.

±1% F.S.8

Linear output range

Same as measurement range.

Temperature characteristic9
(including amplifier unit)

0.15% F.S./°C

0.07% F.S./°C

0.1% F.S./°C

Ambient temperature

Operating10

0 to 50°C (with no icing or condensation)

-10 to 60°C (with no icing or condensation)

-10 to 200°C

Storage5

-20 to 70°C (with no icing or condensation)

-20 to 200°C

Ambient humidity

Operating and storage: 35% to 85% (with no condensation)

Insulation resistance

50 MΩ min. (at 500 DC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min between charged parts and case

Vibration resistance (destruction)

10 to 55 Hz with 1.5-mm double amplitude for 2 h each in X, Y, and Z directions

Shock resistance (destruction)

500 m/s2, 3 times each in X, Y, and Z directions

Degree of protection (sensor head)

IEC60529, IP65

IEC60529, IP67

IEC60529, IP6011

Connection method

Connector relay (standard cable length: 2 m)

Weight (packed state)

Approx. 120 g

Approx. 140 g

Approx. 160 g

Approx. 130 g

Approx. 160 g

Materials

Sensor head

Case

Brass

Stainless steel

Brass

Zinc (nickel-plated)

Brass

Sensing surface

Heat-resistant ABS

PEEK

Preamplifier

PES

Accessories

Amplifier mounting brackets (ZX-XBE1), instruction manual

Measurement period

150 µs

Possible average count settings12

1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096

Linear output13

Current output: 4 to 20 mA/F.S., max. load resistance: 300 Ω

Voltage output:±4 V (±5 V, 1 to 5 V14), output impedance: 100 Ω

Judgement outputs
(3 outputs: HIGH/PASS/LOW)

NPN open-collector outputs, 30 VDC, 50 mA max.
Residual voltage: 1.2 V max.

PNP open-collector outputs, 30 VDC, 50 mA max.
Residual voltage: 2 V max.

Zero reset input, timing input, reset input, judgement output hold input

ON: Short-circuited with 0-V terminal or 1.5 V or less

OFF: Open (leakage current: 0.1 mA max.)

ON: Supply voltage short-circuited or supply voltage within 1.5 V

OFF: Open (leakage current: 0.1 mA max.)

Function

• Measurement value display
• set value/output value/
  resolution display
• Linearity adjustment (materials selection)
• Scaling
• Display reverse
• display OFF mode
• ECO mode
• Number of display digit changes
• sample hold
• peak hold
• Bottom hold, peak-to-peak hold
• self-peak hold
• self-bottom hold
• Average hold
• delay hold
• zero reset
• Initial reset
• linearity initialization
• ON-delay timer
• OFF-delay timer
• one-shot timer
• previous value comparison
• Non-measurement setting
• direct threshold value setting
• position teaching
• Automatic teaching
• hysteresis width setting
• timing inputs
• Reset input
• judgement output hold input
• monitor focus
• Linear output correction
• (A-B) calculations4
• (A+B) calculations15
• K-(A+B) calculation4
• mutual interference prevention4
• Sensor disconnection detection
• zero reset memory
• zero reset indicator
• Key lock

Indications

Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red),
7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green)

Voltage influence
(including sensor)

0.5% F.S. of linear output value at ±20% of power supply voltage

Power supply voltage

12 to 24 VDC±10%, ripple (p-p): 10% max.

Current consumption

140 mA max. with power supply voltage of 24 VDC (with sensor connected)

Ambient temperature

Operating and storage: 0 to 50°C (with no icing or condensation)

Ambient humidity

Operating and storage: 35% to 85% (with no condensation)

Insulation resistance

20 MΩ min. (at 500 DC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min

Vibration resistance (destruction)

10 to 150 Hz with 0.7-mm double amplitude for 80 min each in X, Y, and Z directions

Shock resistance (destruction)

300 m/s2, 3 times each in 6 directions (up, down, left, right, forward, backward)

Connection method

Prewired (standard cable length: 2 m)

Weight (packed state)

Approx. 350 g

Materials

Case: PBT (polybutylene terephthalate), cover: Polycarbonate

Accessories

Instruction manual
