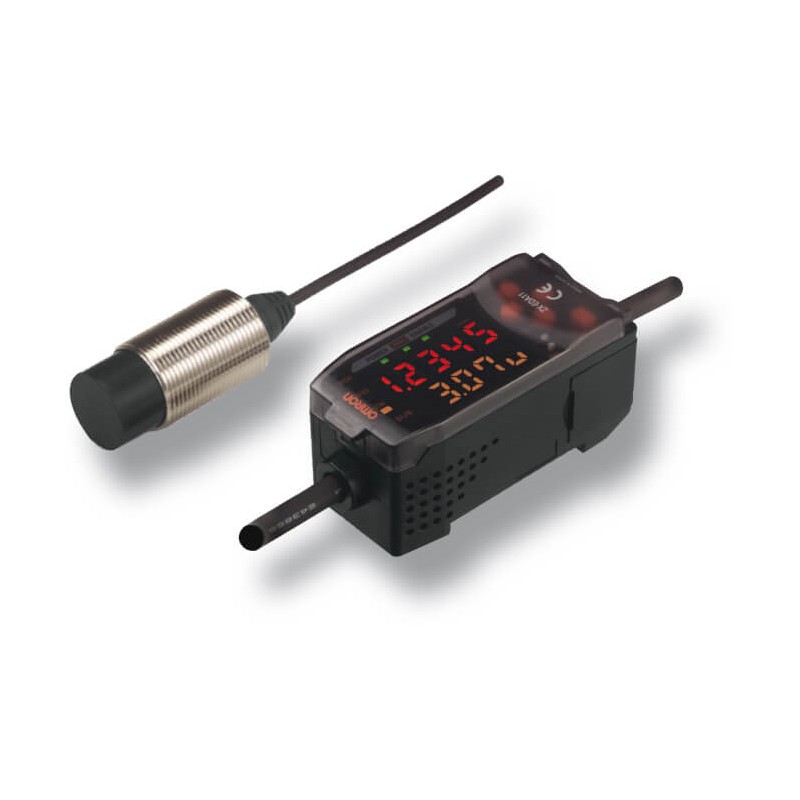

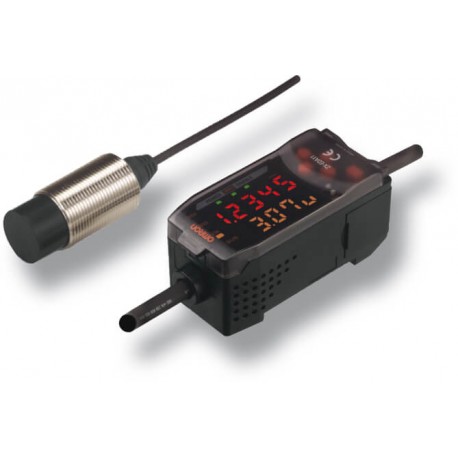

ZX-CAL2 ZX 1008D ZXCAL2 OMRON Calculating unit for connection to multiple

Reference: ZX-CAL2

Code: ZX 1008D

Catalog Number: ZXCAL2

Manufacturer: OMRON

Description:

Calculating unit for connection to multiple
Calculation unit for multiple connection
Calculation unit for ZX proximity Smart Sensor

Categories:

  • Sensors > Accessories/spare parts for sensor technology
  • OMRON > Advanced sensors > Accessories Advanced Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • High resolution of 1 µm
  • High-speed response time of 150µs
  • Easy sensor head replacement
  • Modular platform concept for different sensing technologies
  • Easy linearity adjustment for any metal

Specifications & ordering info

Ordering information

Sensors

Sensor heads

Shape

Dimensions

Sensing distance

Resolution1

Order code

Cylindrical

3 dia. × 18 mm

0.5 mm

1 μm

ZX-EDR5T

5.4 dia. × 18 mm

1 mm

ZX-ED01T2

8 dia. × 22 mm

2 mm

ZX-ED02T2

Screw-shaped

M10×22 mm

2 mm

ZX-EM02T2

M18×46.3 mm

7 mm

ZX-EM07MT2

Flat

30×14×4.8 mm

4 mm

ZX-EV04T2,3

Heat-resistant, cylindrical

M12×22 mm

2 mm

ZX-EM02HT4

Amplifier units

Power supply

Output type

Order code

DC

NPN

ZX-EDA11

PNP

ZX-EDA41

Note: Compatible connection with the sensor head.

Accessories (order separately)

Calculating unit

Model

Calculating unit

ZX-CAL2

Amplifier mounting brackets

Remarks

Model

Attached to each sensor head

ZX-XBE1

For DIN track mounting

ZX-XBE2

SmartMonitor sensor setup tool for Personal Computer connection

Name

Model

ZX-series communications interface unit

ZX-SF11

ZX-series communications interface unit

+ setup software (CD-ROM)

ZX-SFW11EV35

ZX-series sensor setup and logging software (CD-ROM)

ZX-SW11EV3

Cables with connectors on both ends (for extension)*

Cable length

Model

1 m

ZX-XC1A

4 m

ZX-XC4A

8 m

ZX-XC8A

*Robot cable models are also available. The model numbers are ZX-XC_R.

Specifications

Sensor heads

Item

ZX-EDR5T

ZX-ED01T

ZX-ED02T/EM02T

ZX-EM07MT

ZX-EV04T

ZX-EM02HT

Measurement range

0 to 0.5 mm

0 to 1 mm

0 to 2 mm

0 to 7 mm

0 to 4 mm

0 to 2 mm

Sensing object

Magnetic metals
(Measurement ranges and linearities are different for non-magnetic metals. Refer to engineering data on B-67.)

Standard reference object

18 × 18 × 3 mm

30 × 30 × 3 mm

60 × 60 × 3 mm

45 × 45 × 3 mm

Material: Ferrous (S50C)

Resolution6

1 µm

Linearity7

±0.5% F.S.

±1% F.S.8

Linear output range

Same as measurement range.

Temperature characteristic9
(including amplifier unit)

0.15% F.S./°C

0.07% F.S./°C

0.1% F.S./°C

Ambient temperature

Operating10

0 to 50°C (with no icing or condensation)

-10 to 60°C (with no icing or condensation)

-10 to 200°C

Storage5

-20 to 70°C (with no icing or condensation)

-20 to 200°C

Ambient humidity

Operating and storage: 35% to 85% (with no condensation)

Insulation resistance

50 MΩ min. (at 500 DC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min between charged parts and case

Vibration resistance (destruction)

10 to 55 Hz with 1.5-mm double amplitude for 2 h each in X, Y, and Z directions

Shock resistance (destruction)

500 m/s2, 3 times each in X, Y, and Z directions

Degree of protection (sensor head)

IEC60529, IP65

IEC60529, IP67

IEC60529, IP6011

Connection method

Connector relay (standard cable length: 2 m)

Weight (packed state)

Approx. 120 g

Approx. 140 g

Approx. 160 g

Approx. 130 g

Approx. 160 g

Materials

Sensor head

Case

Brass

Stainless steel

Brass

Zinc (nickel-plated)

Brass

Sensing surface

Heat-resistant ABS

PEEK

Preamplifier

PES

Accessories

Amplifier mounting brackets (ZX-XBE1), instruction manual

Amplifier units

Item

ZX-EDA11

ZX-EDA41

Measurement period

150 µs

Possible average count settings12

1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096

Linear output13

Current output: 4 to 20 mA/F.S., max. load resistance: 300 Ω

Voltage output:±4 V (±5 V, 1 to 5 V14), output impedance: 100 Ω

Judgement outputs
(3 outputs: HIGH/PASS/LOW)

NPN open-collector outputs, 30 VDC, 50 mA max.
Residual voltage: 1.2 V max.

PNP open-collector outputs, 30 VDC, 50 mA max.
Residual voltage: 2 V max.

Zero reset input, timing input, reset input, judgement output hold input

ON: Short-circuited with 0-V terminal or 1.5 V or less

OFF: Open (leakage current: 0.1 mA max.)

ON: Supply voltage short-circuited or supply voltage within 1.5 V

OFF: Open (leakage current: 0.1 mA max.)

Function

  • Measurement value display
  • set value/output value/
    resolution display
  • Linearity adjustment (materials selection)
  • Scaling
  • Display reverse
  • display OFF mode
  • ECO mode
  • Number of display digit changes
  • sample hold
  • peak hold
  • Bottom hold, peak-to-peak hold
  • self-peak hold
  • self-bottom hold
  • Average hold
  • delay hold
  • zero reset
  • Initial reset
  • linearity initialization
  • ON-delay timer
  • OFF-delay timer
  • one-shot timer
  • previous value comparison
  • Non-measurement setting
  • direct threshold value setting
  • position teaching
  • Automatic teaching
  • hysteresis width setting
  • timing inputs
  • Reset input
  • judgement output hold input
  • monitor focus
  • Linear output correction
  • (A-B) calculations4
  • (A+B) calculations15
  • K-(A+B) calculation4
  • mutual interference prevention4
  • Sensor disconnection detection
  • zero reset memory
  • zero reset indicator
  • Key lock

Indications

Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red),
7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green)

Voltage influence
(including sensor)

0.5% F.S. of linear output value at ±20% of power supply voltage

Power supply voltage

12 to 24 VDC±10%, ripple (p-p): 10% max.

Current consumption

140 mA max. with power supply voltage of 24 VDC (with sensor connected)

Ambient temperature

Operating and storage: 0 to 50°C (with no icing or condensation)

Ambient humidity

Operating and storage: 35% to 85% (with no condensation)

Insulation resistance

20 MΩ min. (at 500 DC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min

Vibration resistance (destruction)

10 to 150 Hz with 0.7-mm double amplitude for 80 min each in X, Y, and Z directions

Shock resistance (destruction)

300 m/s2, 3 times each in 6 directions (up, down, left, right, forward, backward)

Connection method

Prewired (standard cable length: 2 m)

Weight (packed state)

Approx. 350 g

Materials

Case: PBT (polybutylene terephthalate), cover: Polycarbonate

Accessories

Instruction manual

1.For an average count of 4,096.

2.Models with protective spiral tubes are also available. Add a suffix of “-S” to the above model numbers when ordering. (Example: ZX-ED01T-S)

3.Be sure to use ZX-EDA amplifier unit version 1,200 or later with the ZX-EV04.

4.Be sure to use ZX-EDA amplifier unit version 1,300 or later with the ZX-EM02H.

5.The ZX-SFW11EV3 SmartMonitor can be used only to set functions and monitor waveforms.

6.Accuracy: The resolution is the deviation (±3σ) in the linear output when connected to the ZX-EDA amplifier unit. The above values indicate the deviations observed 30 minutes after the power is turned ON.
(The resolution is measured with Omron's standard reference object at ½ of the measurement range with the ZX-EDA set for the maximum average count of 4,096 per period.)
The resolution is given at the repeat accuracy for a stationary workpiece, and is not an indication of the distance accuracy. The resolution may be adversely affected under strong electromagnetic fields.

7.Linearity: The linearity is given as the error in an ideal straight line displacement output when measuring the standard reference object. The linearity and measurement values vary with the object being measured.

8.The value given is for an ambient temperature of 25°C.

9.Temperature characteristic: The temperature characteristic is measured with Omron's standard reference object at ½ of the measurement range.

10.The ambient temperature given is only for the sensor head. It is -10 to 60°C for the preamp.

11.Do not use in moist environments because the case is not waterproof.

12.The response speed of the linear output is calculated as the measurement period x (average count setting + 1) (with fixed sensitivity).
The response speed of the judgement outputs is calculated as the measurement period x (average count setting + 1) (with fixed sensitivity).

13.The output can be switched between a current output and voltage output using a switch on the bottom of the amplifier unit.

14.Setting is possible via the monitor focus function.

15.A calculating unit (ZX-CAL or ZX-CAL2) is required.
