HR201DS024
LOVATO ELECTRIC
1

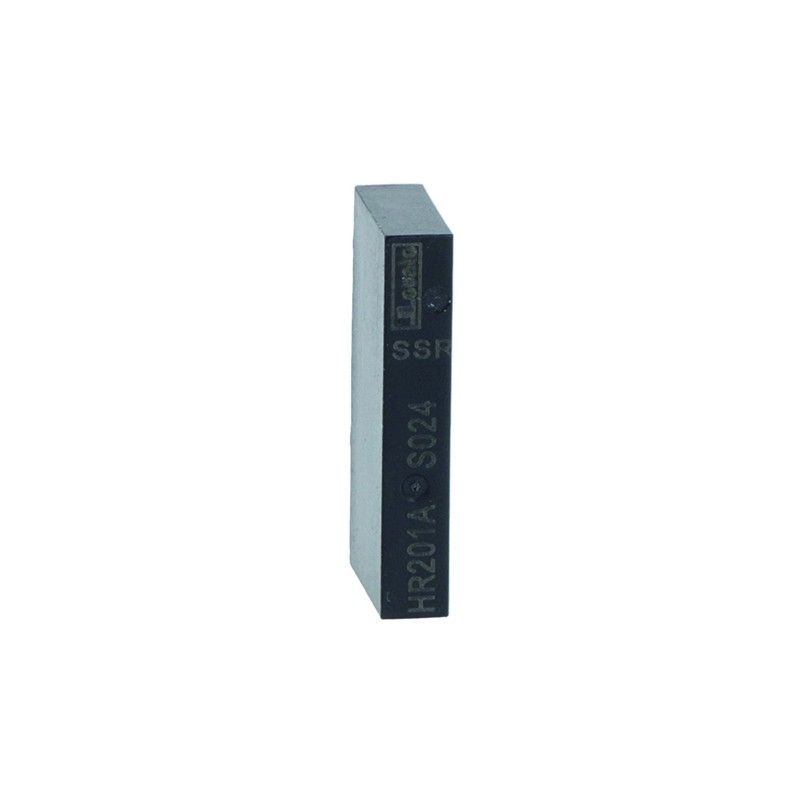

Relé Estrecho estado solido 4A DC Entrada 24VDC
Relé SSR delgado, 24VDC, 4A, 1 contacto SSR, salida 3...28VDC
Relés industriales
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | HR201DS024 |
Peso [g] | 3.61 |
Unidades de embalaje | 20 |
Cantidad de pedido multi-embalaje | 20 |
Dimensiones de embalaje [mm] | 150X030X025 |
Volumen [cm³] | 112.5 |
Código de barras [EAN13] | 8013975233870 |
Código HS | 85365080 |
Product designation | SLIM RELAY | |||
Product type designation | HR20 | |||
Contact characteristics | ||||
Contact configuration | 1 Static | |||
Rated insulation voltage Ui IEC/EN | V | 2500 (input/output) | ||
IEC Conventional free air thermal current Ith | A | 4 | ||
Maximum instantaneous current | A | 48 (10ms) | ||
Rated current (In) | A | 4 | ||
Relay control voltage | V | 24VDC | ||
Max contrallable power in | ||||
AC-1 | W | 1500 | ||
AC-15 | VA | 360 | ||
Rated operating power AC-1 | ||||
VA | 4A output 3…28VDC | |||
Rated operating power AC-15 | ||||
230 VAC | VA | 4A output 3…28VDC | ||
Single-phase motor control | ||||
230VAC | kW | 4A output 3…28VDC | ||
Rated operating current DC-1 | ||||
30V | A | 4A output 3…28VDC | ||
110V | A | 4A output 3…28VDC | ||
220V | A | 4A output 3…28VDC | ||
Minimum switching load | V / mA | 3 / 0.02 | ||
Operating times | ||||
Closing | ms | 0.3 | ||
Opening | ms | 0.3 | ||
Operations | ||||
Mechanical life | cycles | Theoretically infinite | ||
Electrical life AC1 | cycles | Theoretically infinite | ||
Coil characteristics | ||||
Operating range | ||||
Closing | % Un | 80…120 | ||
Maximum cycle frequency | cycles/h | >100000 | ||
Mechanical features | ||||
Max socket terminal tightening torque | Nm | 0.5 | ||
Socket screw tightening tool (cross / flat blade) | PH0 / 3.5mm | |||
Conductor section | ||||
AWG/Kcmil | ||||
min | 20 | |||
max | 16 | |||
IEC | ||||
min | mm² | 0.5 | ||
max | mm² | 1.5 | ||
Operating position | ||||
normal | Any | |||
Fixing | On 35mm DIN rail | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -30 | ||
max | °C | +80 | ||
Storage temperature | ||||
min | °C | -30 | ||
max | °C | +100 | ||
Other features | ||||
Indication | Yes (on the socket) | |||
Mechanical contact position indicator | No | |||
Mechanical test actuator | No | |||
ETIM classification | ||||
ETIM 8.0 | EC002055 - Solid state relay |
