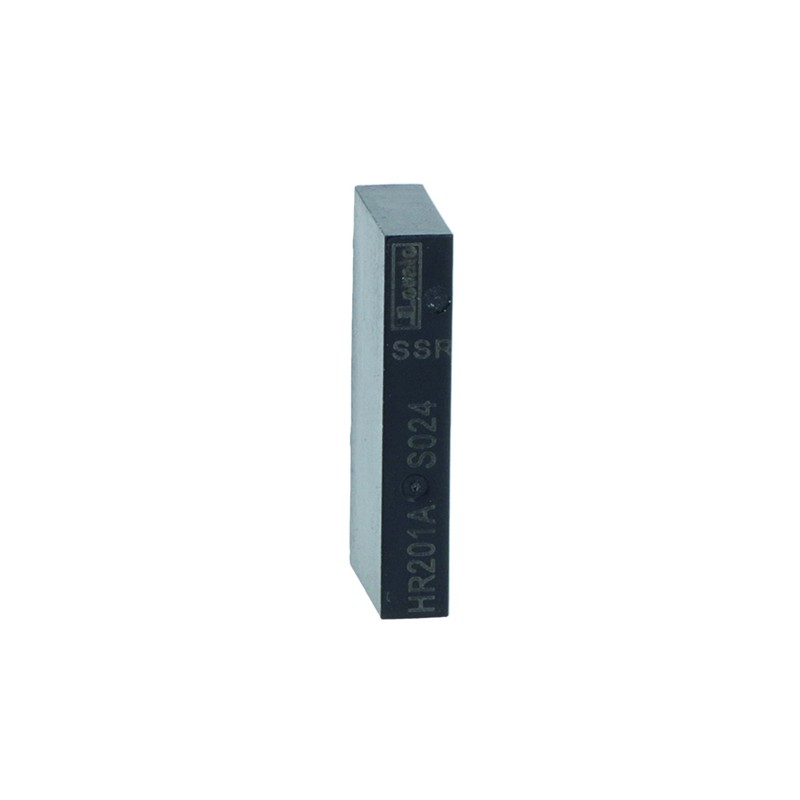

HR201DS024 LOVATO Relay Narrow solid-state 4A DC Input 24VDC
HR201DS024
LOVATO ELECTRIC
Relay Narrow solid-state 4A DC Input 24VDC
SLIM RELAY SOLID STATE 4A DC INPUT 24VDC
Slim SSR relay, 24VDC, 4A, 1 SSR contact, output 3...28VDC
Relays > Switching relay
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲HR201DS024
Slim SSR relay, 24VDC, 4A, 1 SSR contact, output 3...28VDC
Technical specifications
- Type of product:
- Slim relays
- Type of contacts:
- 1 Static
- Relay control voltage:
- 24VDC
- IEC Conventional free air thermal current Ith [A]:
- 4
- LED state indicator:
- No
- Mechanical actuator:
- No
| Order code | HR201DS024 |
|---|---|
| Weight [g] | 3.61 |
| Qty. per package | 20 |
| Multiple qty. of packs per order | 20 |
| Package dimensions [mm] | 150X030X025 |
| Volume [cm³] | 5.625 |
| Bar code [EAN13] | 8013975233870 |
| HS Code | 85364900 |
28.64 £
| Feature Name | Feature Value |
|---|---|
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | DC |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Plug-in connection |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarized |
| Rated control supply voltage DC (EF003980) | 24 V |
| With LED indication (EF005950) | No |
| Complete with socket (EF003359) | No |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Depth (EF000049) | 5 mm |
| Height (EF000040) | 15 mm |
| Width (EF000008) | 28 mm |
| Nominal current (EF000001) | 4 A |
Datasheet - PDF
