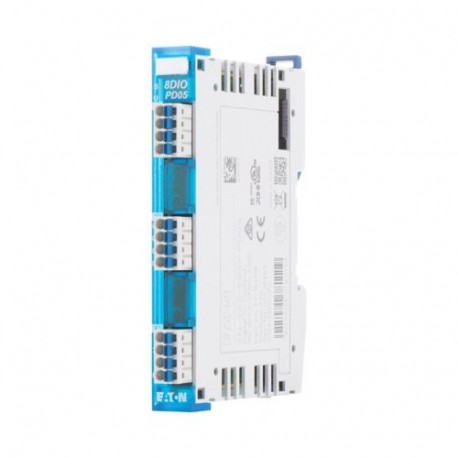

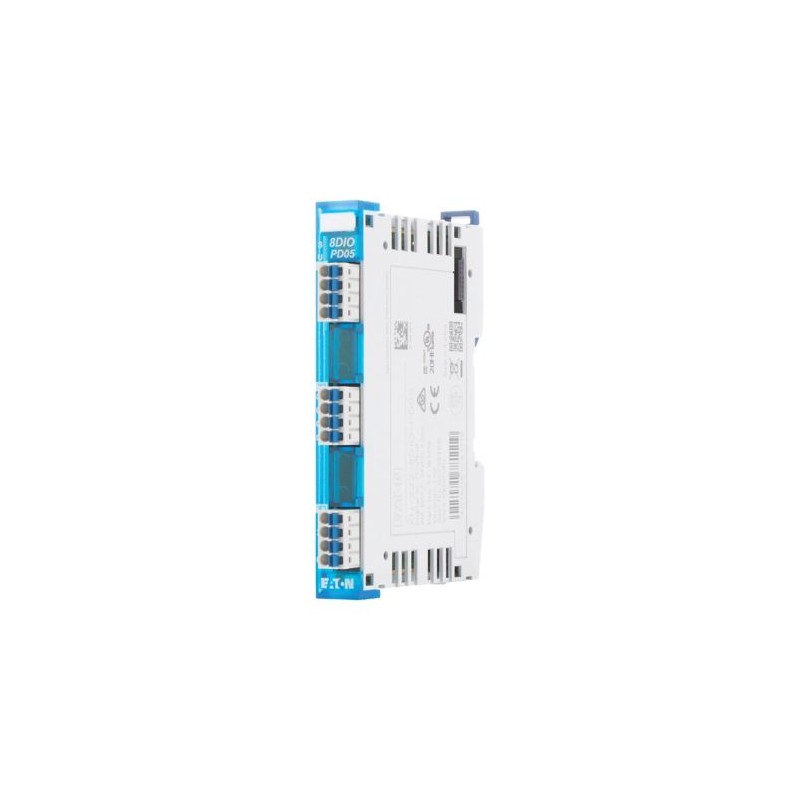

XN-322-8DIO-PD05 183178 Y7-183178 EATON ELECTRIC Módulo XN300 4 Entradas digitales + 4 salidas digitales 0.5A
XN-322-8DIO-PD05
183178
Y7-183178
EATON-MOELLER
Módulo XN300, 4 Entradas digitales + 4 salidas digitales 0.5A
Eaton XN-322 Digital I/O module, 4 digital inputs and 4 digital outputs 24 V DC each, pulse-switching
Módulo de E/S digital con cuatro entradas de 24 V CC / 3,7 mA (EN61131-2 tipo 1) con un filtro de entrada de 0,5 ms. Módulo de E/S digital con cuatro salidas a prueba de cortocircuitos de 24 V CC / 0,5 A, con diagnóstico de subtensión para los rieles de alimentación
Controladores industriales (PLC) > Módulo de entrada/salida digital de periférico descentralizado de bus de campo
Módulos E/S Remotas XN300
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton XN-322 I/O module
Catalog Number
183178
EAN
4015081781119
Product Length/Depth
104.2 mm
Product Height
16.8 mm
Product Width
80.3 mm
Product Weight
0.055 kg
Certifications
IEC/EN 61000-6-2
IEC/EN 61131-2
CULus
IEC/EN 61000-6-4
UL File No.: E135462
CE
IEC/EN 61131-2
CULus
IEC/EN 61000-6-4
UL File No.: E135462
CE
Catalog Notes
The max. heat dissipation is specified as the maximum power produced inside the device's housing.
Model Code
XN-322-8DIO-PD05
Features & Functions
Electric connection type
Plug-in connection
Features
Fieldbus connection over separate bus coupler possible
Functions
Short-circuit protection, outputs available
General
Current consumption
45 mA (typ.), for +5 V power supply (internal), Power supply - Input
None mA (typ.), for +24 V, Power supply - Input
None mA (typ.), for +24 V, Power supply - Input
Degree of protection
IP20
Mounting method
Rail mounting possible
Number of channels
4, Digital Outputs
Overvoltage category
III
Pollution degree
3
Product category
XN-322 digital input and output module
Type
Used with
XN300
XN-312-…
XN-312-…
Voltage type
DC
Ambient conditions, mechanical
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
Horizontal
Shock resistance
15 g, Mechanical, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
85 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
0 - 95 % (non-condensing)
Electro magnetic compatibility
Air discharge
8 kV
Burst impulse
1 kV, Signal cable
2 kV, Supply cable
2 kV, Supply cable
Contact discharge
4 kV
Electromagnetic fields
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Emitted interference
47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
Radiated RFI
10 V
Surge rating
1 kV, Signal cable, unbalanced, EMC
0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC
0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC
Voltage dips
Voltage dips: 10 ms/Voltage fluctuations: Yes
Terminal capacities
Terminal capacity
24 - 16 AWG
0.2 - 1.5 mm², solid, H07V-U
0.2 - 1.5 mm², flexible without ferrule, H07V-K
0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.2 - 1.5 mm², solid, H07V-U
0.2 - 1.5 mm², flexible without ferrule, H07V-K
0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
Gauge pin
A1 (according to IEC/EN 60947-1)
Stripping length (main cable)
10 mm
Insulating material group
I
Electrical rating
Rated operational voltage
24 V (terminal +1)
160 V (terminations)
160 V (terminations)
Short-circuit protection
Yes, Short-circuit rating, Digital outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
18 VDC
Supply voltage at DC - max
30 VDC
Communication
Connection type
Push-in spring-cage terminal (plug-in connection), Connection design in TOP direction
Protocol
Other bus systems
Input/Output
Delay time
< 150 µs, Digital outputs, Delay on signal change and resistive load, from High to Low signal
< 150 µs, Digital outputs, Delay on signal change and resistive load, from Low to High signal
< 150 µs, Digital outputs, Delay on signal change and resistive load, from Low to High signal
Input
Digital inputs (according to EN61131-2 Type 1)
Input current
3.7 mA (Digital inputs)
≤ 1.1 mA (Digital inputs, low level)
≥ 2.3 mA (Digital inputs, high level)
≤ 1.1 mA (Digital inputs, low level)
≥ 2.3 mA (Digital inputs, high level)
Input current at signal 1
3.7 mA
Input delay
5000 µs (rising edge)
5000 µs (falling edge)
5000 µs (falling edge)
Input voltage
14 - 30 V (Digital inputs, high level)
0 - 8 V (Digital inputs, low level)
24 V DC (Digital inputs)
0 - 8 V (Digital inputs, low level)
24 V DC (Digital inputs)
Load current
Not specified by plug manufacturer
Load resistance
> 48 Ω
Number of inputs (digital)
4
Number of outputs (digital)
4
Output
Protective devices must be installed directly at the inductive load in order to prevent interference.
Output current
0.5 A
< 0.5 mA (low level)
≤ 500 mA (high level, Digital outputs)
< 0.5 mA (low level)
≤ 500 mA (high level, Digital outputs)
Output voltage
< 24 V DC (High level, digital outputs)
< 1 V DC (Low level, digital outputs)
24 V DC (digital outputs)
< 1 V DC (Low level, digital outputs)
24 V DC (digital outputs)
Utilization factor
100 % (Ʃ IAmax = 2A)
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Between Digital outputs: no
Between Digital inputs: no
Power supply, Input: no
Between Digital inputs: no
Power supply, Input: no
Design verification
Equipment heat dissipation, current-dependent Pvid
0.25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1.502 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 18 V |
| Tipo de tensión de alimentación (EF002991) | CC |
| Número de entradas digitales (EF001992) | 4 |
| Número de salidas digitales (EF001993) | 4 |
| Entradas digitales configurables (EF008516) | No |
| Salidas digitales configurables (EF008520) | No |
| Corriente de entrada en la señal 1 (EF001428) | 3.7 mA |
| Tensión de entrada permitida (EF007554) | 0 V |
| Tipo de corriente (entrada) (EF003033) | CC |
| Tipo de salida digital (EF003601) | Transistor |
| Corriente de salida (EF003202) | 0.5 A |
| Tensión de salida permitida (EF007553) | 0 V |
| Tipo de corriente de salida (EF008222) | CC |
| Protección contra cortocircuitos, salidas disponibles (EF003203) | Sí |
| Número de interfaces HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS232 (EF003021) | 0 |
| Número de interfaces HW RS422 (EF003022) | 0 |
| Número de interfaces HW RS485 (EF003023) | 0 |
| Número de interfaces HW en serie TTY (EF003024) | 0 |
| Número de interfaces HW en paralelo (EF003026) | 0 |
| Número de interfaces HW sin cables (EF006933) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW Otras (EF003027) | 1 |
| Con interfaz óptica (EF003028) | No |
| Soporta el protocolo EtherCAT (EF017564) | No |
| Soporta el protocolo TCP/IP (EF003050) | No |
| Soporta el protocolo PROFIBUS (EF003052) | No |
| Soporta el protocolo CAN (EF003053) | No |
| Soporta el protocolo INTERBUS (EF003054) | No |
| Soporta el protocolo ASI (EF003051) | No |
| Soporta protocolo KNX (EF003055) | No |
| Soporta el protocolo Modbus (EF003057) | No |
| Soporta el protocolo de autopista de datos (EF003058) | No |
| Soporta el protocolo DeviceNet (EF003059) | No |
| Soporta el protocolo SUCONET (EF003060) | No |
| Soporta el protocolo LON (EF003017) | No |
| Soporta el protocolo PROFINET IO (EF007525) | No |
| Soporta el protocolo PROFINET CBA (EF007524) | No |
| Soporta el protocolo SERCOS (EF006657) | No |
| Soporta el protocolo Foundation Fieldbus (EF007522) | No |
| Soporta el protocolo Ethernet/IP (EF007521) | No |
| Soporta el protocolo AS-Interface Safety at Work (EF007519) | No |
| Soporta el protocolo DeviceNet Safety (EF007520) | No |
| Soporta el protocolo de seguridad INTERBUS (EF006662) | No |
| Soporta el protocolo PROFIsafe (EF007526) | No |
| Soporta el protocolo SafetyBUS p (EF007527) | No |
| Soporta el protocolo para otros sistemas bus (EF003062) | Sí |
| Estándar inalámbrico Bluetooth (EF007178) | No |
| Estándar de radio WLAN 802.11 (EF007179) | No |
| Estándar de radio GPRS (EF008523) | No |
| Estándar de radio GSM (EF008524) | No |
| Estándar de radio UMTS (EF008525) | No |
| Maestro de enlace E/S (EF007298) | No |
| Componente del sistema (EF004118) | Sí |
| Grado de protección (IP) (EF005474) | IP20 |
| Ejecución de la conexión eléctrica (EF003961) | Conexión enchufable |
| Tiempo de retardo con cambio de señal (EF002382) | 0 ms |
| Conexión de bus de campo posible a través de un acoplador de bus separado (EF004002) | Sí |
| Montaje en carril posible (EF003972) | Sí |
| Montaje en pared/directo posible (EF007020) | No |
| Instalación frontal posible (EF007016) | No |
| Montaje en rack posible (EF007018) | No |
| Apto para funciones de seguridad (EF001597) | No |
| SIL según IEC 61508 (EF009889) | Ninguno |
| Nivel de rendimiento según EN ISO 13849-1 (EF007399) | Ninguno |
| Equipos asociados (Ex ia) (EF004141) | No |
| Equipos asociados (Ex ib) (EF004142) | No |
| Categoría de protección contra explosiones para gas (EF003997) | Ninguno |
| Categoría de protección contra explosiones para polvo (EF003998) | Ninguno |
| Certificado para áreas peligrosas UL clase I (EF017622) | No |
| Certificado para UL clase II (EF017625) | No |
| Certificado para áreas peligrosas UL Clase III (EF017627) | No |
| Certificado para áreas peligrosas UL División 1 (EF017628) | No |
| Certificado para áreas peligrosas UL División 2 (EF017629) | No |
| Certificado para áreas peligrosas grupo A (acetileno) (EF017632) | No |
| Certificado para áreas peligrosas grupo B (hidrógeno) (EF017633) | No |
| Certificado para áreas peligrosas grupo C (etileno) (EF017635) | No |
| Certificado para áreas peligrosas grupo D (propano) (EF017636) | No |
| Certificado para áreas peligrosas grupo E (polvos metálicos) (EF017637) | No |
| Certificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638) | No |
| Certificado para áreas peligrosas grupo G (polvos no conductores) (EF017639) | No |
| Anchura (EF000008) | 80.3 mm |
| Altura (EF000040) | 16.8 mm |
| Profundidad (EF000049) | 104.2 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XN-322-8DIO-PD05 Y7-183178 183178 ES_178771.pdf | 3 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
