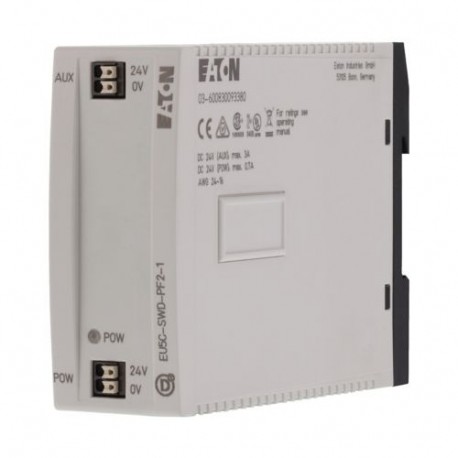

EU5C-SWD-PF2-1 116380 Y7-116380 EATON ELECTRIC Módulo de alimentación SWDT Alimentación AUX y POW
EU5C-SWD-PF2-1
116380
Y7-116380
EATON-MOELLER
Módulo de alimentación SWDT, Alimentación AUX y POW
Eaton EU5C SWD power supply for SWD modules and contactors
Fuente de alimentación SmartWire-DT para módulos SWD y para la alimentación adicional de la tensión de control para arrancadores de motor y contactores, así como para el establecimiento de grupos de parada de emergencia
Controladores industriales (PLC) > Módulo alimentación y segmentación de periférico descentralizado bus de campo
Smartwire Darwin
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton EU5C Accessory Power supply
Catalog Number
116380
EAN
4015081161102
Product Length/Depth
125 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.16 kg
Certifications
UL Category Control No.: NKCR
CSA
CSA Class No.: 3211-07
IEC/EN 61131-2
UL File No.: E29184
EN 50178
UL
CSA File No.: 2324643
CSA
CSA Class No.: 3211-07
IEC/EN 61131-2
UL File No.: E29184
EN 50178
UL
CSA File No.: 2324643
Catalog Notes
SmartWire-DT power supply for SmartWire-DT modules and for additionally feeding the control voltage for motor starters and contactors, as well as for establishing emergency stop groups
Model Code
EU5C-SWD-PF2-1
Características y funciones
Electric connection type
Flat plug-in connection
Features
Fieldbus connection over separate bus coupler possible
Overload proof
Overload proof
Fitted with:
Power supply module
Potential separation
Potential separation
Functions
For additional control voltage feeder for the motor starter and contactors
For the formation of emergency switching off groups for motor starters and contactors
For feeding supply voltage in order to connect additional SmartWire-DT modules to the SmartWire-DT ribbon cable
For the formation of emergency switching off groups for motor starters and contactors
For feeding supply voltage in order to connect additional SmartWire-DT modules to the SmartWire-DT ribbon cable
General
Degree of protection
IP20
Mounting method
Rail mounting possible
Wall mounting/direct mounting
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Wall mounting/direct mounting
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT accessories
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
Suitable as
Segment module
Terminal capacity
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
0.2 - 1.5 mm², solid
24 - 16 AWG, solid or stranded
0.2 - 1.5 mm², solid
Voltage type
DC
Condiciones ambientales y mecánicas
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: prevent with appropriate measures
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Compatibilidad electromagnética
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Surge rating
0.5 kV, Supply cables/CAN/DP bus cable, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Voltage dips
≤ 10 ms, Bridging voltage dips
Especificaciones eléctricas
Inrush current
12.5 A (for 6 ms)
Power loss
Normally 2.7 W
Rated control supply voltage
24 V DC (UPOW, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
Rated operational current (Ie) - max
0.7 A
Rated operational voltage
Typically UAUX -0.2 V (for 24 V DC slaves)
14.5 V (± 3 % - SmartWire-DT)
14.5 V (± 3 % - SmartWire-DT)
Short-circuit protection
Yes, Short-circuit rating, SmartWire-DT supply voltage
No, external fuse FAZ Z3, Supply voltage UAux
No, external fuse FAZ Z3, Supply voltage UAux
Supply current
0.7 A, Imax, SmartWire-DT supply
3 A, Imax, Supply voltage UAux
3 A, Imax, Supply voltage UAux
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Comunicación
Connection
2 x SmartWire-DT blade terminal SWD4-8MF2
Connection to SmartWire-DT
Yes
Connection type
SWD: 2 x plug, 8-pole
Push in terminals, Supply voltage
Push in terminals, Supply voltage
LED indicator
Status indication of Supply voltage: LED
Protocol
Other bus systems
Seguridad
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Between UPow and 15 V SmartWire-DT supply voltage: yes
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
2.7 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 20.4 V |
| Tipo de tensión de alimentación (EF002991) | DC |
| Número de interfaces HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS232 (EF003021) | 0 |
| Número de interfaces HW RS422 (EF003022) | 0 |
| Número de interfaces HW RS485 (EF003023) | 0 |
| Número de interfaces HW en serie TTY (EF003024) | 0 |
| Número de interfaces HW en paralelo (EF003026) | 0 |
| Número de interfaces HW sin cables (EF006933) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW Otras (EF003027) | 1 |
| Con interfaz óptica (EF003028) | false |
| Soporta el protocolo EtherCAT (EF017564) | false |
| Soporta el protocolo TCP/IP (EF003050) | false |
| Soporta el protocolo PROFIBUS (EF003052) | false |
| Soporta el protocolo CAN (EF003053) | false |
| Soporta el protocolo INTERBUS (EF003054) | false |
| Soporta el protocolo ASI (EF003051) | false |
| Soporta protocolo KNX (EF003055) | false |
| Soporta el protocolo Modbus (EF003057) | false |
| Soporta el protocolo de autopista de datos (EF003058) | false |
| Soporta el protocolo DeviceNet (EF003059) | false |
| Soporta el protocolo SUCONET (EF003060) | false |
| Soporta el protocolo LON (EF003017) | false |
| Soporta el protocolo PROFINET IO (EF007525) | false |
| Soporta el protocolo PROFINET CBA (EF007524) | false |
| Soporta el protocolo SERCOS (EF006657) | false |
| Soporta el protocolo Foundation Fieldbus (EF007522) | false |
| Soporta el protocolo Ethernet/IP (EF007521) | false |
| Soporta el protocolo AS-Interface Safety at Work (EF007519) | false |
| Soporta el protocolo DeviceNet Safety (EF007520) | false |
| Soporta el protocolo de seguridad INTERBUS (EF006662) | false |
| Soporta el protocolo PROFIsafe (EF007526) | false |
| Soporta el protocolo SafetyBUS p (EF007527) | false |
| Soporta el protocolo para otros sistemas bus (EF003062) | true |
| Estándar inalámbrico Bluetooth (EF007178) | false |
| Estándar de radio WLAN 802.11 (EF007179) | false |
| Estándar de radio GPRS (EF008523) | false |
| Estándar de radio GSM (EF008524) | false |
| Estándar de radio UMTS (EF008525) | false |
| Componente del sistema (EF004118) | true |
| Grado de protección (IP) (EF005474) | IP20 |
| Ejecución de la conexión eléctrica (EF003961) | Flat plug-in connection |
| Con aislamiento galvánico (EF003272) | true |
| Con módulo de alimentación (EF003993) | true |
| Adecuado como modulo de segmento (EF004104) | true |
| Módulo remoto (EF006653) | false |
| Conexión de bus de campo posible a través de un acoplador de bus separado (EF004002) | true |
| Diagnóstico de bus posible (EF003989) | false |
| Montaje en carril posible (EF003972) | true |
| Montaje en pared/directo posible (EF007020) | true |
| Instalación frontal posible (EF007016) | false |
| Montaje en rack posible (EF007018) | false |
| Apto para funciones de seguridad (EF001597) | false |
| SIL según IEC 61508 (EF009889) | None |
| Nivel de rendimiento según EN ISO 13849-1 (EF007399) | None |
| Equipos asociados (Ex ia) (EF004141) | false |
| Equipos asociados (Ex ib) (EF004142) | false |
| Categoría de protección contra explosiones para gas (EF003997) | None |
| Categoría de protección contra explosiones para polvo (EF003998) | None |
| Certificado para áreas peligrosas UL clase I (EF017622) | false |
| Certificado para UL clase II (EF017625) | false |
| Certificado para áreas peligrosas UL Clase III (EF017627) | false |
| Certificado para áreas peligrosas UL División 1 (EF017628) | false |
| Certificado para áreas peligrosas UL División 2 (EF017629) | false |
| Certificado para áreas peligrosas grupo A (acetileno) (EF017632) | false |
| Certificado para áreas peligrosas grupo B (hidrógeno) (EF017633) | false |
| Certificado para áreas peligrosas grupo C (etileno) (EF017635) | false |
| Certificado para áreas peligrosas grupo D (propano) (EF017636) | false |
| Certificado para áreas peligrosas grupo E (polvos metálicos) (EF017637) | false |
| Certificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638) | false |
| Certificado para áreas peligrosas grupo G (polvos no conductores) (EF017639) | false |
| Anchura (EF000008) | 35 mm |
| Altura (EF000040) | 90 mm |
| Profundidad (EF000049) | 125 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EU5C-SWD-PF2-1 Y7-116380 116380 ES_116307.pdf | 1 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
