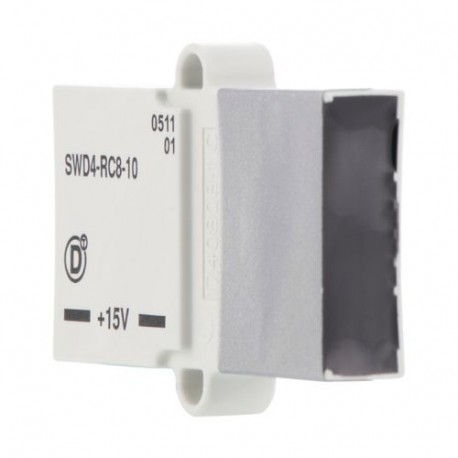

SWD4-RC8-10 116020 Y7-116020 EATON ELECTRIC Resistencia terminadora SWDT Para cable plano
SWD4-RC8-10
116020
Y7-116020
EATON-MOELLER
Resistencia terminadora SWDT, Para cable plano
Eaton SWD4 Bus termination, SmartWire-DT, for flat cable
La terminación de bus SmartWire-DT se conecta al cable plano SWD SWD4-8MF2 en el extremo del cable plano SWD
Controladores industriales (PLC) > Accesorios para controladores
Smartwire Darwin
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton SWD4 Accessory Bus termination resistor
Catalog Number
116020
EAN
4015081157600
Product Length/Depth
10 mm
Product Height
35 mm
Product Width
49 mm
Product Weight
0.011 kg
Certifications
UL File No.: E29184
CSA
CSA Class No.: 3211-07
UL Category Control No.: NKCR
CSA File No.: 2324643
EN 50178
IEC/EN 61131-2
UL
CSA
CSA Class No.: 3211-07
UL Category Control No.: NKCR
CSA File No.: 2324643
EN 50178
IEC/EN 61131-2
UL
Model Code
SWD4-RC8-10
Características y funciones
Functions
For the SmartWire-DT bus termination on the SmartWire-DT ribbon cable
General
Current consumption
17 mA
Degree of protection
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
IP20
IP20
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT accessories
Type
SmartWire-DT bus termination; plugged onto SWD4-8MF2 blade terminal at the end of the SmartWire-DT ribbon cable
Condiciones ambientales y mecánicas
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: prevent with appropriate measures
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Compatibilidad electromagnética
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Especificaciones eléctricas
Power loss
0.4 W
Comunicación
Connection to SmartWire-DT
Yes
Connection type
Plug, 8-pole
Entrada/salida
Number of insertion cycles
200
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.4 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
