RA-C1-VM-7

264244

EATON-MOELLER

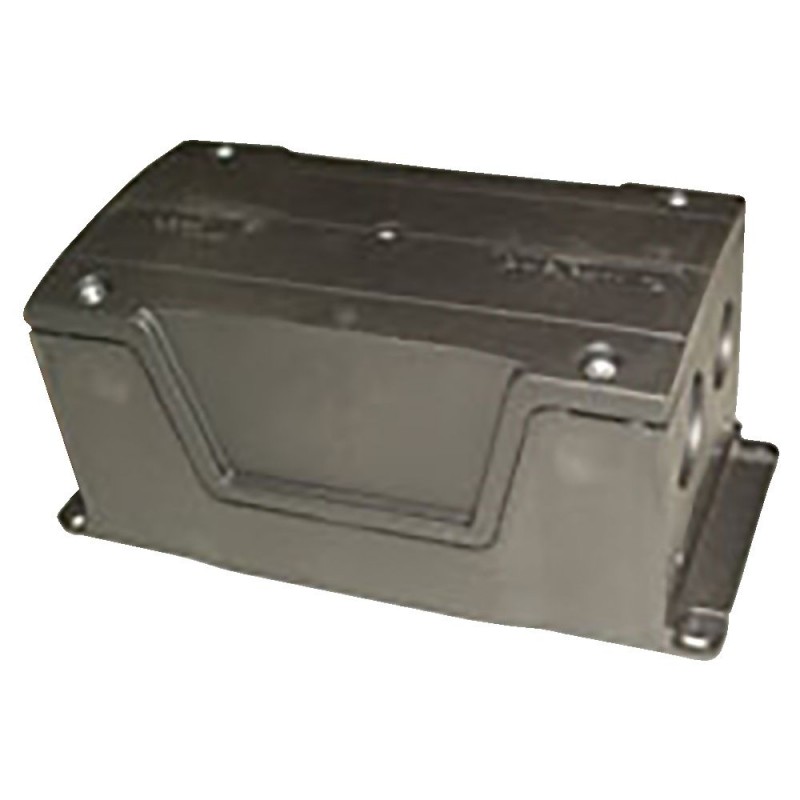

Rapid Link 4.0; Módulo de distribución; 3 x cable plano; 2 x cable redondo; Para alimentación

Rapid Link 4.0 Módulo de distribución 3 x cable plano 2 x cable

Eaton Moeller® series Rapid Link Distribution module, 3xflat cable, 2xRound cable, for supply

Más detalles


Interruptores de baja tensión > Accesorios para la tecnología de conmutación de baja tensión

Arrancadores Rapid Link

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

* Este artículo podría estar obsoleto. Si está interesado solicite presupuesto y le indicaremos si quedan unidades disponibles. En caso de que no queden uno de nuestros técnicos buscará una alternativa sumunistrable de características similares.

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series Rapid Link Accessory Distribution module
Catalog Number
264244
EAN
4015082642440
Product Length/Depth
175 mm
Product Height
78 mm
Product Width
83 mm
Product Weight
0.355 kg
Certifications
IEC/EN 60529
EN 60998-2-1
Catalog Notes
Order V-M25/V-M20 cable gland and RA-C1-DF bushing separately.
Model Code
RA-C1-VM-7

Features & Functions

Fitted with:
3 flexible busbar inputs and 2 round cable inputs
Functions
For the 400V AC feeding to the ribbon cable with a round cable

General

Accessory/spare part type
Connection technique
Degree of protection
IP65, according to IEC/EN 60529
Product category
Accessories

Ambient conditions, mechanical

Mounting position
As required

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C

Main circuit

Rated operational current (Ie)
32 A
Rated operational voltage (Ue) at DC - max
24 V
Rated operational voltage (Ue) at AC - max
500 V

Communication

Connection
Connection of round cables 4 mm²

Contacts

Contact type
Screw connection double-decker terminal blocks 1.5 to 4 mm²

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
