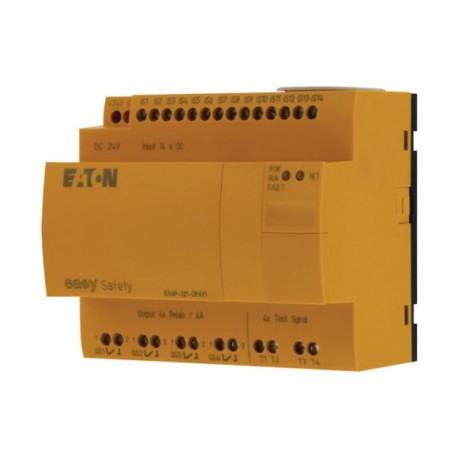

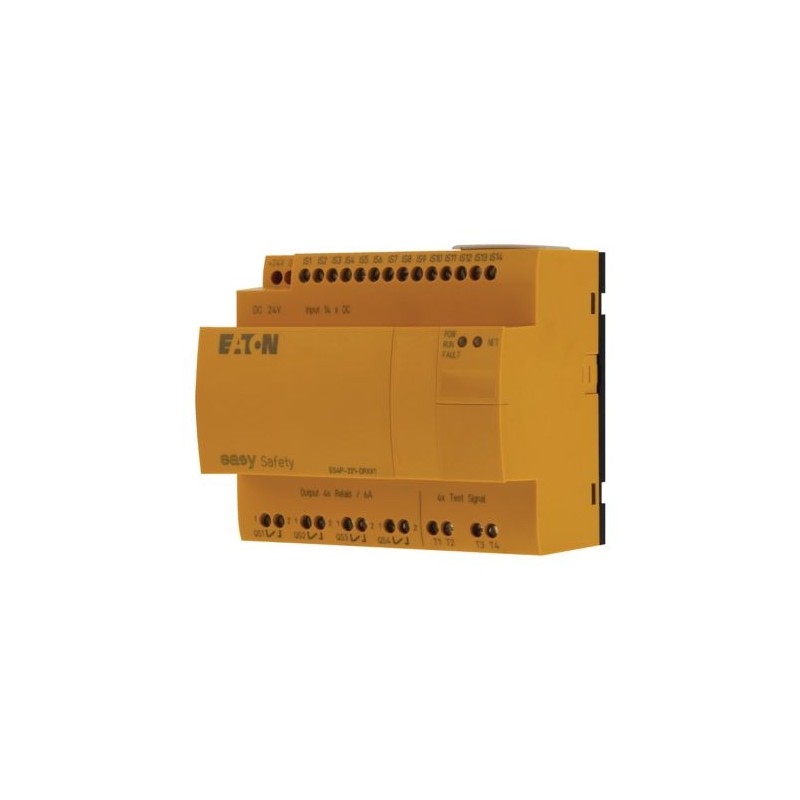

ES4P-221-DRXX1 111018 Y7-111018 EATON ELECTRIC Rele programable de seguridad ES4P 24 V DC 14 EDS, 4SRS Sin p..
ES4P-221-DRXX1
111018
Y7-111018
EATON-MOELLER
Rele programable de seguridad ES4P; 24 V DC; 14 EDS, 4SRS; Sin pantalla;
Eaton Moeller® series ES4P Safety relay, 24 V DC, 14DI, 4DO relays, easyNet
Relé de control extensible adecuado para circuitos de seguridad, voltaje nominal de funcionamiento 24VDC, 14 entradas digitales de seguridad, 1 salida de relé segura y redundante 6A, 4 salidas de transistor 0.5A, 4 salidas de señal de prueba, adecuado para cat. 4 según EN 954-1 / PL e según EN ISO 13849-1 / SILCL3 según IEC 62061 / SIL3 según IEC61508, grado de protección IP20, sin teclado, sin pantalla LCD, seguridad y funcionalidad estándar integrada en un dispositivo, sistema de bus easyNet a bordo, easyLink, ampliable con entradas y salidas digitales, ampliable a los sistemas de bus AS-Interface, PROFIBUS-DP, integrado, deviceNet, etiquetado personalizado del relé de control con software de inscripción Editor de etiquetas
Controladores industriales (PLC) > Módulo lógico
Relés programables EASY y pantallas MFD
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series ES4P Safety relay
Catalog Number
111018
EAN
4015081105281
Product Length/Depth
72 mm
Product Height
90 mm
Product Width
108 mm
Product Weight
0.363 kg
Certifications
CSA-22.2 No. 142-MI1987
IEC/EN 61000-4-2
CSA-C22.20.4-04
EN 50581
IEC 61508
CSA File No.: 012528
EN 50156-1
EN 50156-2
IEC/EN 61000-6-2
EN ISO 13849-1
CE
CSA
CSA Class No.: 2252-81; 2252-01
EN 50178
IEC/EN 61000-6-3
UL Category Control No.: NRAQ
IEC 62061
UL 508
UL File No.: CSA report applies to both US and Canada
IEC/EN 61000-4-2
CSA-C22.20.4-04
EN 50581
IEC 61508
CSA File No.: 012528
EN 50156-1
EN 50156-2
IEC/EN 61000-6-2
EN ISO 13849-1
CE
CSA
CSA Class No.: 2252-81; 2252-01
EN 50178
IEC/EN 61000-6-3
UL Category Control No.: NRAQ
IEC 62061
UL 508
UL File No.: CSA report applies to both US and Canada
Catalog Notes
1000
Model Code
ES4P-221-DRXX1
Features & Functions
Features
Safety/standard circuit diagram
Expandable
Expandable
Fitted with:
Timer
Real time clock
Expandable standard bus systems
Relay output
Expandable standard inputs/outputs
Real time clock
Expandable standard bus systems
Relay output
Expandable standard inputs/outputs
Functions
Redundancy
Inscription
Individual laser inscriptions possible
General
Accuracy
± 5 s/day depending on the ambient temperature
± 2 s/day (± 0.5 h⁄year), Real-time clock, normally
± 2 s/day (± 0.5 h⁄year), Real-time clock, normally
Cable length
1000 m, shielded, Single cable length of test signal output to the device input, Digital inputs 24 V DC
100 m, unscreened, Digital inputs 24 V DC
3000 m, shielded, Total of single cable lengths from one test signal output to the device inputs, Digital inputs 24 V DC
100 m, unscreened, Digital inputs 24 V DC
3000 m, shielded, Total of single cable lengths from one test signal output to the device inputs, Digital inputs 24 V DC
Degree of protection
IP20
Insulation resistance
According to EN 50178
Lifespan, mechanical
10,000,000 Operations
10,000,000 Operations (Relay outputs)
10,000,000 Operations (Relay outputs)
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Wall mounting/direct mounting
Rail mounting possible
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Wall mounting/direct mounting
Rail mounting possible
Mounting width
107.5 mm
Operating frequency
900 Operations/h at input (does not apply to I1, I2, if function block SM or OM is used)
Overvoltage category
III
Pollution degree
2
Product category
Control relays for safety applications
Rated impulse withstand voltage (Uimp)
6 kV (contact-coil)
Residual ripple
5 % (transistor outputs)
0 %
0 %
Resolution
Suitable for
Safety functions
Switching capacity
AC: R300 (in accordance with UL 508), Relay outputs
DC-13, 24 V DC, 0.1 Hz: 40000 operations (in accordance with IEC 60947-5-1), Relay outputs
AC-15, 230 V AC, 3 A: 80000 operations (in accordance with IEC 60947-5-1), Relay outputs
DC: B300 (in accordance with UL 508), Relay outputs
DC-13, 24 V DC, 0.1 Hz: 40000 operations (in accordance with IEC 60947-5-1), Relay outputs
AC-15, 230 V AC, 3 A: 80000 operations (in accordance with IEC 60947-5-1), Relay outputs
DC: B300 (in accordance with UL 508), Relay outputs
Switching frequency
15 Hz, Relay outputs
Type
easy800 with safety function blocks
Voltage type
DC
Ambient conditions, mechanical
Constant acceleration
2 g, 57 - 150 Hz
Constant amplitude
0,15 mm, 10 - 57 Hz, according to IEC/EN 60068-2-6, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
3.5 mm / 1 g, According to IEC/EN 60068-2-6
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 142, EN 60664-1:2003
Condensation: prevent with appropriate measures
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (non-condensing, IEC 60068-2-30, IEC 60068-2-78)
Electro magnetic compatibility
Air discharge
15 kV
Burst impulse
According to IEC/EN 61000-4-4
4 kV, Signal cable
4 kV, Supply cable
4 kV, Signal cable
4 kV, Supply cable
Contact discharge
8 kV
Electromagnetic compatibility
Increased EMC requirements for safety-relevant functions (according to ICE 62061)
Electromagnetic fields
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
30 V/m (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
30 V/m (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
20 V (according to IEC/EN 61000-4-6)
Radio interference class
Class B (EN 55011)
Class B (EN 55022)
Class B (EN 55022)
Surge rating
4 kV, semi-conductor outputs, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, Supply cables, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, Supply cables, symmetrical, power pulses (Surge), EMC
Voltage dips
According to EN 61131-2
≤ 10 ms
≤ 10 ms
Terminal capacities
Terminal capacity
0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule
0.2 - 4 mm² (AWG 22 - 12), solid
0.2 - 4 mm² (AWG 22 - 12), solid
Tightening torque
0.6 Nm, Screw terminals
Screwdriver size
3.5 x 0.8 mm, Terminal screw
Electrical rating
Conventional thermal current ith of auxiliary contacts (1-pole, open)
6 A
Input current
< 250 mA (at 115/230 V AC)
5.7 mA (Digital inputs, at 24 V DC, at signal 1, I1 - I6)
5.7 mA (Digital inputs, at 24 V DC, at signal 1, I1 - I6)
Output voltage
24 V DC (test signal outputs)
Rated control supply voltage
24 V DC (Us)
Rated insulation voltage (Ui)
250 V
Rated operational voltage
250 V AC
< 5 V DC on 0 signal
24 V DC (-15 %/+ 20 % - power supply)
20.4 - 28.8 V DC
> 15 V DC on 1 signal
24 V DC (digital inputs)
< 5 V DC on 0 signal
24 V DC (-15 %/+ 20 % - power supply)
20.4 - 28.8 V DC
> 15 V DC on 1 signal
24 V DC (digital inputs)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Communication
Bus termination
First and last station, easyNet
Data transfer rate
500 kBit/s, 25 m, easyNet
10 kBit/s, 1000 m, easyNet
1000 kBit/s, 6 m, easyNet
20 kBit/s, 700 m, easyNet
50 kBit/s, 300 m, easyNet
250 kBit/s, 40 m, easyNet
125 kBit/s, 125 m, easyNet
10 kBit/s, 1000 m, easyNet
1000 kBit/s, 6 m, easyNet
20 kBit/s, 700 m, easyNet
50 kBit/s, 300 m, easyNet
250 kBit/s, 40 m, easyNet
125 kBit/s, 125 m, easyNet
Memory
100,000,000,000,000 Write cycles of the retentive memory
Module interface
easyNet/easyLink
Number of modules
Max. 8
Protocol
Other bus systems
Input/Output
Number of inputs (analog)
0
Number of inputs (digital)
14
Number of outputs (analog)
4
Number of outputs (digital)
4
Off-delay
< 1 ms
Output
4 Test signal outputs (T1 - T4)
Relay outputs in groups of 1
Relay outputs in groups of 1
Pulse characteristics
1 ms (max. duration of external test pulse)
1 ms (Off test pulse)
1 ms (Off test pulse)
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Basic isolation: 600 V AC (Relay outputs)
Between easyNet and Outputs: yes
Between Power supply and Inputs: yes
Between Relay outputs and Inputs: yes
Between Relay outputs and Power supply: yes
Between Relay outputs and Interface: yes
Between easyNet and Power supply: yes
Between Digital inputs 24 V DC and easyNet: yes
Between Relay outputs and Digital inputs: yes
Between Relay outputs and easyNet: yes
Between Inputs and internal Power supply: Yes
Between Power supply and Outputs: yes
Between Digital inputs 24 V DC and Outputs: yes
Between easyNet and Inputs: yes
Between easyNet and Memory card: yes
Between Power supply and easyNet: yes
Between Relay outputs and easyLink: yes
Safe isolation according to EN 50178: 300 V AC (Relay outputs)
Between easyNet and PC interface: yes
Between easyNet and Outputs: yes
Between Power supply and Inputs: yes
Between Relay outputs and Inputs: yes
Between Relay outputs and Power supply: yes
Between Relay outputs and Interface: yes
Between easyNet and Power supply: yes
Between Digital inputs 24 V DC and easyNet: yes
Between Relay outputs and Digital inputs: yes
Between Relay outputs and easyNet: yes
Between Inputs and internal Power supply: Yes
Between Power supply and Outputs: yes
Between Digital inputs 24 V DC and Outputs: yes
Between easyNet and Inputs: yes
Between easyNet and Memory card: yes
Between Power supply and easyNet: yes
Between Relay outputs and easyLink: yes
Safe isolation according to EN 50178: 300 V AC (Relay outputs)
Between easyNet and PC interface: yes
Protection
- !
- Protection of an Output relay - Fuse: 6 A gL/gG, Circuit-breaker with C characteristic: 4 A (only permissible with 24V DC), Short-circuit current IK: < 250 A
Safe isolation
Between coil and contacts in accordance with EN 50178
300 V AC, Between coil and contacts, According to EN 50178
300 V AC, Between coil and contacts, According to EN 50178
Safety function/level
ESPE with muting function
Safety timing relay
Feedback circuit
Enabling switch
Protective door
Mode selection
OSSD input
Highest speed monitoring
According to EN 50156
Zero speed monitoring
Two-hand control
3 redundant relay outputs, 6 months test interval
Stopping in the event of an emergency
Safety timing relay
Feedback circuit
Enabling switch
Protective door
Mode selection
OSSD input
Highest speed monitoring
According to EN 50156
Zero speed monitoring
Two-hand control
3 redundant relay outputs, 6 months test interval
Stopping in the event of an emergency
Safety parameter (EN ISO 13849-1)
PL e, Performance level
Cat. 4, Category
Cat. 4, Category
Safety parameter (IEC 62061)
SILCL 3, Safety integrity level claim limit
4.26 x 10-10, PFHd, Probability of failure per hour
SIL 3, Safety integrity level, In accordance with IEC 61508
4.26 x 10-10, PFHd, Probability of failure per hour
SIL 3, Safety integrity level, In accordance with IEC 61508
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
6 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 20.4 V |
| Tipo de tensión de alimentación (EF002991) | CC |
| Corriente de conmutación (EF000188) | 8 A |
| Consumo de energía (EF000346) | 6 W |
| Número de entradas analógicas (EF001994) | 0 |
| Número de salidas analógicas (EF001995) | 4 |
| Número de entradas digitales (EF001992) | 14 |
| Número de salidas digitales (EF001993) | 4 |
| Con salida de relé (EF003198) | Sí |
| Número de interfaces HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS232 (EF003021) | 1 |
| Número de interfaces HW RS422 (EF003022) | 0 |
| Número de interfaces HW RS485 (EF003023) | 0 |
| Número de interfaces HW en serie TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW en paralelo (EF003026) | 0 |
| Número de interfaces HW sin cables (EF006933) | 0 |
| Número de interfaces HW Otras (EF003027) | 3 |
| Con interfaz óptica (EF003028) | No |
| Soporta el protocolo EtherCAT (EF017564) | No |
| Soporta el protocolo TCP/IP (EF003050) | No |
| Soporta el protocolo PROFIBUS (EF003052) | No |
| Soporta el protocolo CAN (EF003053) | No |
| Soporta el protocolo INTERBUS (EF003054) | No |
| Soporta el protocolo ASI (EF003051) | No |
| Soporta protocolo KNX (EF003055) | No |
| Soporta el protocolo Modbus (EF003057) | No |
| Soporta el protocolo de autopista de datos (EF003058) | No |
| Soporta el protocolo DeviceNet (EF003059) | No |
| Soporta el protocolo SUCONET (EF003060) | No |
| Soporta el protocolo LON (EF003017) | No |
| Soporta el protocolo PROFINET IO (EF007525) | No |
| Soporta el protocolo PROFINET CBA (EF007524) | No |
| Soporta el protocolo SERCOS (EF006657) | No |
| Soporta el protocolo Foundation Fieldbus (EF007522) | No |
| Soporta el protocolo Ethernet/IP (EF007521) | No |
| Soporta el protocolo AS-Interface Safety at Work (EF007519) | No |
| Soporta el protocolo DeviceNet Safety (EF007520) | No |
| Soporta el protocolo de seguridad INTERBUS (EF006662) | No |
| Soporta el protocolo PROFIsafe (EF007526) | No |
| Soporta el protocolo SafetyBUS p (EF007527) | No |
| Soporta el protocolo para otros sistemas bus (EF003062) | Sí |
| Estándar inalámbrico Bluetooth (EF007178) | No |
| Estándar de radio WLAN 802.11 (EF007179) | No |
| Estándar de radio GPRS (EF008523) | No |
| Estándar de radio GSM (EF008524) | No |
| Estándar de radio UMTS (EF008525) | No |
| Maestro de enlace E/S (EF007298) | No |
| Redundancia (EF003156) | Sí |
| Con pantalla (EF000458) | No |
| Grado de protección (IP) (EF005474) | IP20 |
| Unidad básica (EF007279) | Sí |
| Ampliable (EF000119) | Sí |
| Unidad de expansión (EF007163) | No |
| Con temporizador (EF000256) | Sí |
| Montaje en carril posible (EF003972) | Sí |
| Montaje en pared/directo posible (EF007020) | Sí |
| Instalación frontal posible (EF007016) | No |
| Montaje en rack posible (EF007018) | No |
| Apto para funciones de seguridad (EF001597) | Sí |
| SIL según IEC 61508 (EF009889) | 3 |
| Nivel de rendimiento según EN ISO 13849-1 (EF007399) | Nivel e |
| Equipos asociados (Ex ia) (EF004141) | No |
| Equipos asociados (Ex ib) (EF004142) | No |
| Categoría de protección contra explosiones para gas (EF003997) | Ninguno |
| Categoría de protección contra explosiones para polvo (EF003998) | Ninguno |
| Certificado para áreas peligrosas UL clase I (EF017622) | No |
| Certificado para UL clase II (EF017625) | No |
| Certificado para áreas peligrosas UL Clase III (EF017627) | No |
| Certificado para áreas peligrosas UL División 1 (EF017628) | No |
| Certificado para áreas peligrosas UL División 2 (EF017629) | No |
| Certificado para áreas peligrosas grupo A (acetileno) (EF017632) | No |
| Certificado para áreas peligrosas grupo B (hidrógeno) (EF017633) | No |
| Certificado para áreas peligrosas grupo C (etileno) (EF017635) | No |
| Certificado para áreas peligrosas grupo D (propano) (EF017636) | No |
| Certificado para áreas peligrosas grupo E (polvos metálicos) (EF017637) | No |
| Certificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638) | No |
| Certificado para áreas peligrosas grupo G (polvos no conductores) (EF017639) | No |
| Anchura (EF000008) | 108 mm |
| Altura (EF000040) | 90 mm |
| Profundidad (EF000049) | 72 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ES4P-221-DRXX1 Y7-111018 111018 ES_115126.pdf | 6 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
