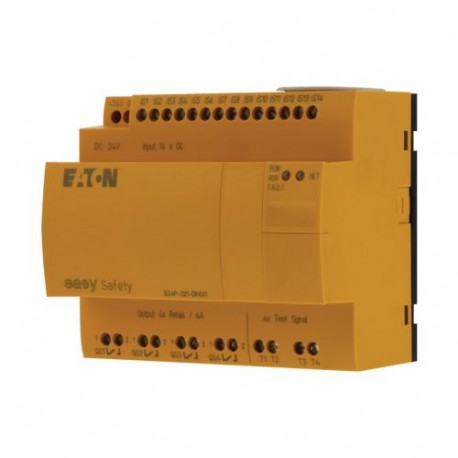

ES4P-221-DRXX1 111018 Y7-111018 EATON ELECTRIC Modules logiques de sécurité, 24V DC, 14 entr. TOR, 4 sort.TO..
ES4P-221-DRXX1
111018
Y7-111018
EATON-MOELLER
Modules logiques de sécurité, 24V DC, 14 entr. TOR, 4 sort.TOR à relais, easyNet
ES4P-221-DRXX1
Eaton Moeller® series ES4P Safety relay, 24 V DC, 14DI, 4DO relays, easyNet
Relais de commande extensible adapté aux circuits de sécurité, tension nominale de fonctionnement 24VDC, 14 entrées numériques de sécurité, 1 sortie relais sûre et redondante 6A, 4 sorties de transistors 0,5A, 4 sorties de signal de test, adapté pour cat. 4 selon EN 954-1 / PL e selon EN ISO 13849-1 / SILCL3 selon IEC 62061 / SIL3 selon IEC61508, degré de protection IP20, pas de clavier, pas d’écran LCD, sécurité et fonctionnalité standard intégrées dans un appareil, système de bus easyNet intégré, easyLink, extensible avec entrées et sorties numériques, extensible aux systèmes de bus AS-Interface, PROFIBUS-DP, intégré, deviceNet , étiquetage personnalisé du relais de contrôle avec logiciel d’inscription Editeur d’étiquettes
Commande industrielle API > Module logique
Relais EASY programmables et écrans MFD
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series ES4P Safety relay
Catalog Number
111018
Model Code
ES4P-221-DRXX1
EAN
4015081105281
Product Length/Depth
72 mm
Product Height
90 mm
Product Width
108 mm
Product Weight
0.363 kg
Certifications
CSA-22.2 No. 142-MI1987
IEC/EN 61000-4-2
CSA-C22.20.4-04
EN 50581
IEC 61508
CSA File No.: 012528
EN 50156-1
EN 50156-2
IEC/EN 61000-6-2
EN ISO 13849-1
CE
CSA
CSA Class No.: 2252-81; 2252-01
EN 50178
IEC/EN 61000-6-3
UL Category Control No.: NRAQ
IEC 62061
UL 508
UL File No.: CSA report applies to both US and Canada
IEC/EN 61000-4-2
CSA-C22.20.4-04
EN 50581
IEC 61508
CSA File No.: 012528
EN 50156-1
EN 50156-2
IEC/EN 61000-6-2
EN ISO 13849-1
CE
CSA
CSA Class No.: 2252-81; 2252-01
EN 50178
IEC/EN 61000-6-3
UL Category Control No.: NRAQ
IEC 62061
UL 508
UL File No.: CSA report applies to both US and Canada
Catalog Notes
1000
Features & Functions
Features
Safety/standard circuit diagram
Expandable
Expandable
Fitted with:
Timer
Real time clock
Expandable standard bus systems
Relay output
Expandable standard inputs/outputs
Real time clock
Expandable standard bus systems
Relay output
Expandable standard inputs/outputs
Functions
Redundancy
Inscription
Individual laser inscriptions possible
General
Accuracy
± 5 s/day depending on the ambient temperature
± 2 s/day (± 0.5 h⁄year), Real-time clock, normally
± 2 s/day (± 0.5 h⁄year), Real-time clock, normally
Cable length
1000 m, shielded, Single cable length of test signal output to the device input, Digital inputs 24 V DC
100 m, unscreened, Digital inputs 24 V DC
3000 m, shielded, Total of single cable lengths from one test signal output to the device inputs, Digital inputs 24 V DC
100 m, unscreened, Digital inputs 24 V DC
3000 m, shielded, Total of single cable lengths from one test signal output to the device inputs, Digital inputs 24 V DC
Degree of protection
IP20
Insulation resistance
According to EN 50178
Lifespan, mechanical
10,000,000 Operations
10,000,000 Operations (Relay outputs)
10,000,000 Operations (Relay outputs)
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Wall mounting/direct mounting
Rail mounting possible
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Wall mounting/direct mounting
Rail mounting possible
Mounting width
107.5 mm
Operating frequency
900 Operations/h at input (does not apply to I1, I2, if function block SM or OM is used)
Overvoltage category
III
Pollution degree
2
Product category
Control relays for safety applications
Rated impulse withstand voltage (Uimp)
6 kV (contact-coil)
Residual ripple
5 % (transistor outputs)
0 %
0 %
Resolution
Suitable for
Safety functions
Switching capacity
AC: R300 (in accordance with UL 508), Relay outputs
DC-13, 24 V DC, 0.1 Hz: 40000 operations (in accordance with IEC 60947-5-1), Relay outputs
AC-15, 230 V AC, 3 A: 80000 operations (in accordance with IEC 60947-5-1), Relay outputs
DC: B300 (in accordance with UL 508), Relay outputs
DC-13, 24 V DC, 0.1 Hz: 40000 operations (in accordance with IEC 60947-5-1), Relay outputs
AC-15, 230 V AC, 3 A: 80000 operations (in accordance with IEC 60947-5-1), Relay outputs
DC: B300 (in accordance with UL 508), Relay outputs
Switching frequency
15 Hz, Relay outputs
Type
easy800 with safety function blocks
Voltage type
DC
Ambient conditions, mechanical
Constant acceleration
2 g, 57 - 150 Hz
Constant amplitude
0,15 mm, 10 - 57 Hz, according to IEC/EN 60068-2-6, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
3.5 mm / 1 g, According to IEC/EN 60068-2-6
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 142, EN 60664-1:2003
Condensation: prevent with appropriate measures
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (non-condensing, IEC 60068-2-30, IEC 60068-2-78)
Electro magnetic compatibility
Air discharge
15 kV
Burst impulse
According to IEC/EN 61000-4-4
4 kV, Signal cable
4 kV, Supply cable
4 kV, Signal cable
4 kV, Supply cable
Contact discharge
8 kV
Electromagnetic compatibility
Increased EMC requirements for safety-relevant functions (according to ICE 62061)
Electromagnetic fields
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
30 V/m (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
30 V/m (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
20 V (according to IEC/EN 61000-4-6)
Radio interference class
Class B (EN 55011)
Class B (EN 55022)
Class B (EN 55022)
Surge rating
4 kV, semi-conductor outputs, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, Supply cables, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, Supply cables, symmetrical, power pulses (Surge), EMC
Voltage dips
According to EN 61131-2
≤ 10 ms
≤ 10 ms
Terminal capacities
Terminal capacity
0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule
0.2 - 4 mm² (AWG 22 - 12), solid
0.2 - 4 mm² (AWG 22 - 12), solid
Tightening torque
0.6 Nm, Screw terminals
Screwdriver size
3.5 x 0.8 mm, Terminal screw
Electrical rating
Conventional thermal current ith of auxiliary contacts (1-pole, open)
6 A
Input current
< 250 mA (at 115/230 V AC)
5.7 mA (Digital inputs, at 24 V DC, at signal 1, I1 - I6)
5.7 mA (Digital inputs, at 24 V DC, at signal 1, I1 - I6)
Output voltage
24 V DC (test signal outputs)
Rated control supply voltage
24 V DC (Us)
Rated insulation voltage (Ui)
250 V
Rated operational voltage
250 V AC
< 5 V DC on 0 signal
24 V DC (-15 %/+ 20 % - power supply)
20.4 - 28.8 V DC
> 15 V DC on 1 signal
24 V DC (digital inputs)
< 5 V DC on 0 signal
24 V DC (-15 %/+ 20 % - power supply)
20.4 - 28.8 V DC
> 15 V DC on 1 signal
24 V DC (digital inputs)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Communication
Bus termination
First and last station, easyNet
Data transfer rate
500 kBit/s, 25 m, easyNet
10 kBit/s, 1000 m, easyNet
1000 kBit/s, 6 m, easyNet
20 kBit/s, 700 m, easyNet
50 kBit/s, 300 m, easyNet
250 kBit/s, 40 m, easyNet
125 kBit/s, 125 m, easyNet
10 kBit/s, 1000 m, easyNet
1000 kBit/s, 6 m, easyNet
20 kBit/s, 700 m, easyNet
50 kBit/s, 300 m, easyNet
250 kBit/s, 40 m, easyNet
125 kBit/s, 125 m, easyNet
Memory
100,000,000,000,000 Write cycles of the retentive memory
Module interface
easyNet/easyLink
Number of modules
Max. 8
Protocol
Other bus systems
Input/Output
Number of inputs (analog)
0
Number of outputs (analog)
4
Number of inputs (digital)
14
Number of outputs (digital)
4
Off-delay
< 1 ms
Output
4 Test signal outputs (T1 - T4)
Relay outputs in groups of 1
Relay outputs in groups of 1
Pulse characteristics
1 ms (max. duration of external test pulse)
1 ms (Off test pulse)
1 ms (Off test pulse)
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Basic isolation: 600 V AC (Relay outputs)
Between easyNet and Outputs: yes
Between Power supply and Inputs: yes
Between Relay outputs and Inputs: yes
Between Relay outputs and Power supply: yes
Between Relay outputs and Interface: yes
Between easyNet and Power supply: yes
Between Digital inputs 24 V DC and easyNet: yes
Between Relay outputs and Digital inputs: yes
Between Relay outputs and easyNet: yes
Between Inputs and internal Power supply: Yes
Between Power supply and Outputs: yes
Between Digital inputs 24 V DC and Outputs: yes
Between easyNet and Inputs: yes
Between easyNet and Memory card: yes
Between Power supply and easyNet: yes
Between Relay outputs and easyLink: yes
Safe isolation according to EN 50178: 300 V AC (Relay outputs)
Between easyNet and PC interface: yes
Between easyNet and Outputs: yes
Between Power supply and Inputs: yes
Between Relay outputs and Inputs: yes
Between Relay outputs and Power supply: yes
Between Relay outputs and Interface: yes
Between easyNet and Power supply: yes
Between Digital inputs 24 V DC and easyNet: yes
Between Relay outputs and Digital inputs: yes
Between Relay outputs and easyNet: yes
Between Inputs and internal Power supply: Yes
Between Power supply and Outputs: yes
Between Digital inputs 24 V DC and Outputs: yes
Between easyNet and Inputs: yes
Between easyNet and Memory card: yes
Between Power supply and easyNet: yes
Between Relay outputs and easyLink: yes
Safe isolation according to EN 50178: 300 V AC (Relay outputs)
Between easyNet and PC interface: yes
Protection
- !
- Protection of an Output relay - Fuse: 6 A gL/gG, Circuit-breaker with C characteristic: 4 A (only permissible with 24V DC), Short-circuit current IK: < 250 A
Safe isolation
Between coil and contacts in accordance with EN 50178
300 V AC, Between coil and contacts, According to EN 50178
300 V AC, Between coil and contacts, According to EN 50178
Safety function/level
ESPE with muting function
Safety timing relay
Feedback circuit
Enabling switch
Protective door
Mode selection
OSSD input
Highest speed monitoring
According to EN 50156
Zero speed monitoring
Two-hand control
3 redundant relay outputs, 6 months test interval
Stopping in the event of an emergency
Safety timing relay
Feedback circuit
Enabling switch
Protective door
Mode selection
OSSD input
Highest speed monitoring
According to EN 50156
Zero speed monitoring
Two-hand control
3 redundant relay outputs, 6 months test interval
Stopping in the event of an emergency
Safety parameter (EN ISO 13849-1)
PL e, Performance level
Cat. 4, Category
Cat. 4, Category
Safety parameter (IEC 62061)
SILCL 3, Safety integrity level claim limit
4.26 x 10-10, PFHd, Probability of failure per hour
SIL 3, Safety integrity level, In accordance with IEC 61508
4.26 x 10-10, PFHd, Probability of failure per hour
SIL 3, Safety integrity level, In accordance with IEC 61508
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
6 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Tension d'alimentation CA 50 Hz (EF007532) | 0 V |
| Tension d'alimentation CA 60 Hz (EF007533) | 0 V |
| Tension d'alimentation CC (EF007534) | 20.4 V |
| Type de tension d'alimentation (EF002991) | CC |
| Courant de commutation (EF000188) | 8 A |
| Puissance absorbée (EF000346) | 6 W |
| Nombre d'entrées analogiques (EF001994) | 0 |
| Nombre d'entrées numériques (EF001995) | 4 |
| Nombre d'entrées numériques (EF001992) | 14 |
| Nombre de sorties numériques (EF001993) | 4 |
| Avec sortie de relais (EF003198) | Oui |
| Nombre d'interfaces matérielles Industrial Ethernet (EF003020) | 0 |
| Nombre d'interfaces matérielles PROFINET (EF006932) | 0 |
| Nombre d'interfaces matérielles en série RS-232 (EF003021) | 1 |
| Nombre d'interfaces matérielles en série RS-422 (EF003022) | 0 |
| Nombre d'interfaces matérielles en série RS-485 (EF003023) | 0 |
| Nombre d'interfaces matérielles en série TTY (EF003024) | 0 |
| Nombre d'interfaces matérielles USB (EF003025) | 0 |
| Nombre d'interfaces matérielles parallèles (EF003026) | 0 |
| Nombre d'interfaces matérielles Wireless (EF006933) | 0 |
| Nombre d'autres interfaces matérielles (EF003027) | 3 |
| Avec interface optique (EF003028) | Non |
| supporte le protocole pour EtherCAT (EF017564) | Non |
| Protocole pris en charge pour TCP/IP (EF003050) | Non |
| Protocole pris en charge pour PROFIBUS (EF003052) | Non |
| Protocole pris en charge pour CAN (EF003053) | Non |
| Protocole pris en charge pour INTERBUS (EF003054) | Non |
| Protocole pris en charge pour ASI (EF003051) | Non |
| Protocole pris en charge pour KNX (EF003055) | Non |
| Protocole pris en charge pour Modbus (EF003057) | Non |
| Protocole pris en charge pour Data-Highway (EF003058) | Non |
| Protocole pris en charge pour DeviceNet (EF003059) | Non |
| Protocole pris en charge pour SUCONET (EF003060) | Non |
| Protocole pris en charge pour LON (EF003017) | Non |
| Protocole pris en charge pour PROFINET IO (EF007525) | Non |
| Protocole pris en charge pour PROFINET CBA (EF007524) | Non |
| Protocole pris en charge pour SERCOS (EF006657) | Non |
| Protocole pris en charge pour Foundation Fieldbus (EF007522) | Non |
| Protocole pris en charge pour EtherNet/IP (EF007521) | Non |
| Protocole pris en charge pour AS-Interface Safety at Work (EF007519) | Non |
| Protocole pris en charge pour DeviceNet Safety (EF007520) | Non |
| Protocole pris en charge pour INTERBUS-Safety (EF006662) | Non |
| Protocole pris en charge pour PROFIsafe (EF007526) | Non |
| Protocole pris en charge pour SafetyBUS p (EF007527) | Non |
| Protocole pris en charge pour autres systèmes de bus (EF003062) | Oui |
| Standard radio Bluetooth (EF007178) | Non |
| Standard radio WLAN 802.11 (EF007179) | Non |
| Standard radio GPRS (EF008523) | Non |
| Standard radio GSM (EF008524) | Non |
| Standard radio UMTS (EF008525) | Non |
| Maître IO-Link (EF007298) | Non |
| Capacité de redondance (EF003156) | Oui |
| Avec affichage (EF000458) | Non |
| Classe de protection (IP) (EF005474) | IP20 |
| Appareil de base (EF007279) | Oui |
| Évolutif (EF000119) | Oui |
| Appareil d'extension (EF007163) | Non |
| Avec minuterie (EF000256) | Oui |
| Montage possible sur barres profilées (EF003972) | Oui |
| Montage mural/direct possible (EF007020) | Oui |
| Encastrement frontal possible (EF007016) | Non |
| Montage sur rack possible (EF007018) | Non |
| Adapté aux fonctions de sécurité (EF001597) | Oui |
| SIL conformément à IEC 61508 (EF009889) | 3 |
| Niveau de performance selon EN ISO 13849-1 (EF007399) | Niveau e |
| Matériel associé (Ex ia) (EF004141) | Non |
| Matériel associé (Ex ib) (EF004142) | Non |
| Catégorie de protection contre les explosions pour le gaz (EF003997) | Sans |
| Catégorie de protection contre les explosions pour la poussière (EF003998) | Sans |
| certifié pour zone à risque UL classe I (EF017622) | Non |
| certifié pour zone à risque UL classe II (EF017625) | Non |
| certifié pour zone à risque UL classe III (EF017627) | Non |
| certifié pour zone à risque UL division 1 (EF017628) | Non |
| certifié pour zone à risque UL division 2 (EF017629) | Non |
| certifié pour zone à risque UL groupe A (acétylène) (EF017632) | Non |
| certifié pour zone à risque UL groupe B (hydrogène) (EF017633) | Non |
| certifié pour zone à risque UL groupe C (éthylène) (EF017635) | Non |
| certifié pour zone à risque UL groupe D (propane) (EF017636) | Non |
| certifié pour zone à risque UL groupe E (poussière de métal) (EF017637) | Non |
| certifié pour zone à risque UL groupe F (poussière carbonée) (EF017638) | Non |
| certifié pour zone à risque UL groupe G (poussière non conductrice) (EF017639) | Non |
| Largeur (EF000008) | 108 mm |
| Hauteur (EF000040) | 90 mm |
| Profondeur (EF000049) | 72 mm |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON SAFETY LOGIC EN.pdf | 2 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ES4P-221-DRXX1 Y7-111018 111018 FR_115126.pdf | 6 Mbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
