QSA40N0-00/3+P 1320205 Y8-1320205 EATON ELECTRIC Interruptor-seccionador-fusible, 3 polos, 40 A, montaje tra.. Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

QSA40N0-00/3+P 1320205 Y8-1320205 EATON ELECTRIC Interruptor-seccionador-fusible, 3 polos, 40 A, montaje tra..

QSA40N0-00/3+P

1320205

Y8-1320205

EATON-MOELLER

Interruptor-seccionador-fusible, 3 polos, 40 A, montaje trasero, pilar, NH000/NH00

Interruptor seccionador-fuse, 3P, 40 A, montaje trasero, NH000/NH00

Eaton QSA Fuse switch-disconnector, 3 pole, rear mounting, 40 A, Pillar, NH000/NH00

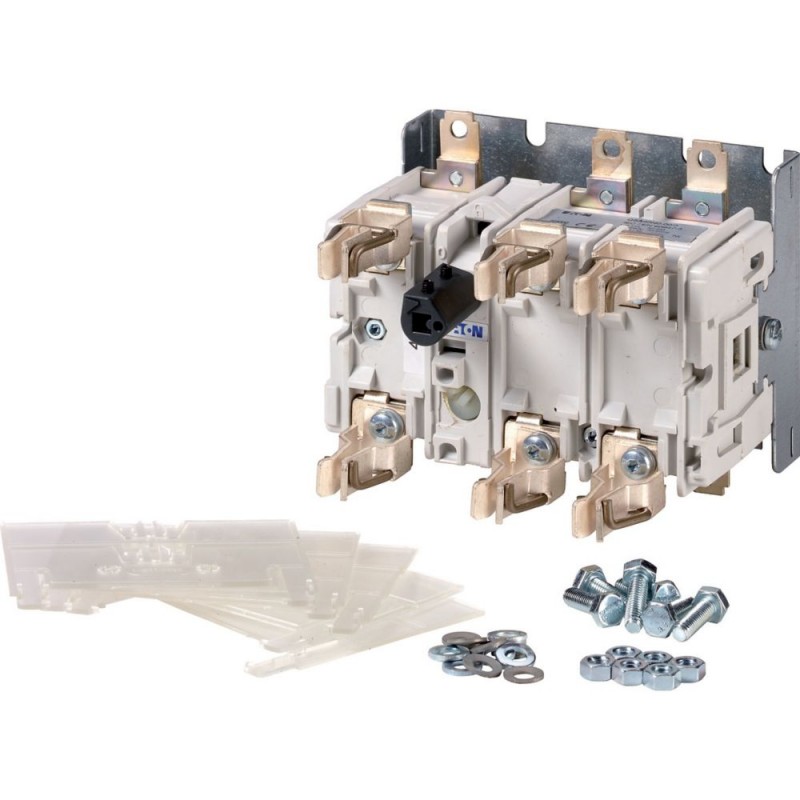

Interruptor-seccionador de fusibles QSA40N0-00/3, con terminales, tamaño de marco 0 adecuado para fusibles DIN (tipo de contactos de cuchilla).

Más detalles


Interruptores de baja tensión > Interruptor con fusibles

Interruptores seccionadores DUMECO

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $265.90
Precio unitario: $265.90

Cantidad Precio
1+$265.90
2+$237.83
3+$233.62
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

Más Información



Especificaciones generales

Product Name
Eaton QSA Fuse switch-disconnector
Catalog Number
1320205
EAN
8711426950467
Product Length/Depth
138 mm
Product Height
138 mm
Product Width
165 mm
Product Weight
1.1 kg
Certifications
CE
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
RoHS
Model Code
QSA40N0-00/3+P

Features & Functions

Features
Version as main switch
Fitted with:
Connectors
Functions
Optional Stop Function
Number of poles
Four-pole

General

Accessories
Auxiliary contact or neutral conductor fitted by user.
Actuator type
Without actuator
Construction size
NH000, NH00
Degree of protection
IP00
IP20, with terminal cover
Degree of protection (front side)
IP00
Mounting method
Rear mounting
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product category
Rated impulse withstand voltage (Uimp)
6000 V
Suitable for
Ground mounting
DIN fuse-links (blade contacts type)

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
80 °C
Operating temperature - min
-25 °C
Operating temperature - max
55 °C

Electrical rating

Rated insulation voltage (Ui)
690 V
Rated operating voltage (Ue) at AC - max
690 V
Rated operational power at AC-23A, 400 V, 50 Hz
22 kW
Rated short-time withstand current (Icw)
0 kA
Rated uninterrupted current (Iu)
40 A
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.

Contacts

Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.5 W
Rated operational current for specified heat dissipation (In)
40 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 1320205 Interruptores de baja tensión (EC001040)
Característica Valor
Ejecución como interruptor principal (EF006981)
Ejecución como interruptor de seguridad (EF006985) No
Tensión de funcionamiento nominal máxima Ue CA (EF007355) 690 V
Intensidad nominal permanente Iu (EF001389) 40 A
Potencia de funcionamiento nominal a 400 V CA-23 (EF007027) 22 kW
Corriente nominal de cortocircuito condicional Iq (EF001444) 50 kA
Resistencia de corriente nominal de corta duración Icw (EF007050) 0 kA
Apto para insertos de fusibles (EF006692) NH000, NH00
Número de polos (EF001391) 4
Con control de fusibles (EF007384) No
Tipo de conexión del circuito de corriente principal (EF006819) Conexión de tornillo
Entrada de cable (EF000537) Encima/debajo
Equipado con conectores rápidos (EF011696)
Apto para montaje en suelo (EF007243)
Apropiado para montaje frontal (EF007246) No
Apto para el montaje de barras colectoras (EF007259) No
Ejecución del elemento accionador (EF006976) Sin actuador
Posición del elemento de accionamiento (EF009410) Parte frontal
Accionamiento motorizado opcional (EF007386) No
Accionamiento motorizado integrado (EF006697) No
Ejecución como dispositivo de parada de emergencia (EF006959) No
Grado de protección (IP), frontal (EF003118) IP00
