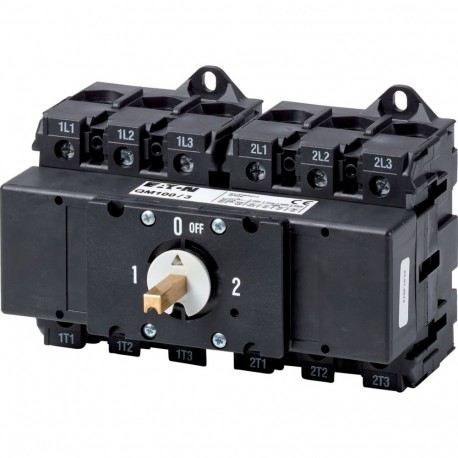

QM100/3 1319815 Y8-1319815 EATON ELECTRIC Interruptor seccionador, 3p, 100A
QM100/3
1319815
Y8-1319815
EATON-MOELLER
Interruptor seccionador, 3p, 100A
Eaton QM Changeover switch, QM, 100 A, 2 x 3 pole, without rotary handle, With drive shaft, 6 mm square
Interruptor-seccionador QM100/3, interruptor de conmutación, 2x3 polos, corriente térmica de aire libre Ithe 100 A, con eje cuadrado de 6 mm
Conectores > Conector de cable para conector de circuito impreso
Interruptores seccionadores DUMECO
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton QM Changeover switch
Catalog Number
1319815
EAN
8711426200388
Product Length/Depth
195 mm
Product Height
105 mm
Product Width
140 mm
Product Weight
0.89 kg
Certifications
CE
IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
RoHS
IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
RoHS
Model Code
QM100/3
Product specifications
Product Category
Changeover switches
Actuator color
Other
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Drive shaft
Pollution degree
3
Rated impulse withstand voltage (Uimp)
6000 V
Rated permanent current at AC-21, 400 V
100 A
Rated uninterrupted current (Iu)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (main cable)
14 mm
Accessories
Auxiliary contact or neutral conductor fitted by user.
Device construction
Built-in device fixed built-in technique
Rated short-time withstand current (Icw)
1.85 kA
Electrical connection type of main circuit
Screw connection
Mounting position
As required
Actuator type
Other
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
-30 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
8 W
Number of auxiliary contacts (normally closed contacts)
0
Rated conditional short-circuit current (Iq)
15 kA
Overvoltage category
III
Degree of protection (front side)
IP20
Number of poles
Three-pole
Mounting method
Top-hat rail mounting
Rear mounting
Rear mounting
Degree of protection
NEMA Other
Functions
Optional Stop Function
Number of switches
2
Terminal capacity
1 x (10 - 50) mm², solid
1 x (10 - 35) mm², flexible
1 x (10 - 35) mm², flexible
Safety parameter (EN ISO 13849-1)
B10d values as per EN ISO 13849-1, table C.1
Number of auxiliary contacts (normally open contacts)
0
Rated insulation voltage (Ui)
690 V
Rated operating voltage (Ue) - max
690 V
Rated operating voltage (Ue) - min
690 V
Rated operational voltage (Ue) at AC - max
690 V
Rated operational current for specified heat dissipation (In)
100 A
Rated operational power at AC-23A, 400 V, 50 Hz
37 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
30 kW
Tightening torque
3 Nm, Screw terminals
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
| Característica | Valor |
|---|---|
| Ejecución como interruptor principal (EF006981) | No |
| Ejecución como interruptor de mantenimiento/reparación (EF006986) | No |
| Ejecución como interruptor de seguridad (EF006985) | No |
| Ejecución como dispositivo de parada de emergencia (EF006959) | No |
| Ejecución como conmutador-inversor (EF009408) | No |
| Número de interruptores (EF005586) | 2 |
| Tensión de funcionamiento nominal máxima Ue CA (EF007355) | 690 V |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | 100 A |
| Corriente permanente asignada con AC-21, 400 V (EF009165) | 100 A |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 30 kW |
| Resistencia de corriente nominal de corta duración Icw (EF007050) | 1.85 kA |
| Potencia de funcionamiento nominal a 400 V CA-23 (EF007027) | 37 kW |
| Corriente nominal de cortocircuito condicional Iq (EF001444) | 15 kA |
| Número de polos (EF001391) | 3 |
| Número de contactos auxiliares normalmente cerrados (EF001377) | 0 |
| Número de contactos auxiliares normalmente abiertos (EF001376) | 0 |
| Accionamiento motorizado opcional (EF007386) | No |
| Accionamiento motorizado integrado (EF006697) | No |
| Liberación de tensión opcional (EF007491) | No |
| Construcción del dispositivo (EF008240) | Técnica integrada fija para dispositivo integrado |
| Apto para montaje frontal de 4 orificios (EF007247) | No |
| Apto para montaje frontal central (EF007248) | No |
| Apto para la instalación del distribuidor (EF007262) | No |
| Apto para montaje intermedio (EF007264) | No |
| Color del elemento de accionamiento (EF007167) | Otros |
| Ejecución del elemento accionador (EF006976) | Otros |
| Interbloqueable (EF006281) | No |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Con cableado premontado (EF016444) | No |
| Grado de protección (IP), frontal (EF003118) | IP20 |
| Grado de protección (NEMA) (EF011959) | Otros |
| Anchura (EF000008) | 140 mm |
| Altura (EF000040) | 105 mm |
| Profundidad (EF000049) | 195 mm |
