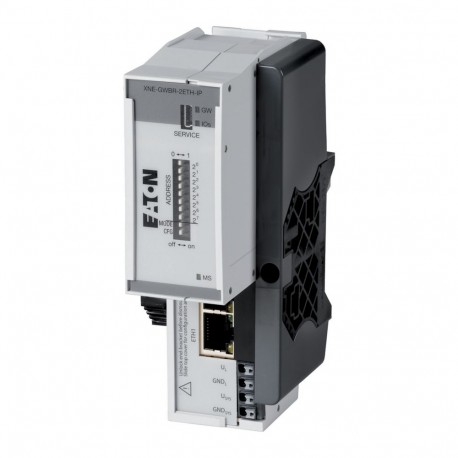

XNE-GWBR-2ETH-IP 140047 Y7-140047 EATON ELECTRIC Gateway XION ECO Ethernet IP
XNE-GWBR-2ETH-IP
140047
Y7-140047
EATON-MOELLER
Gateway XION ECO, Ethernet IP
Eaton XNE ECO gateway for XI/ON I/O system, ethernet IP
El sistema de E/S estándar XI/ON añade módulos de E/S y pasarelas optimizados en cuanto a coste y espacio al sistema de E/S XI/ON. Los módulos ECO no necesitan módulos base y son totalmente compatibles con el sistema estándar XI/ON. Alta densidad de canales (hasta 16 DI/DO en 13 mm), terminales de jaula de resorte push-in, 8 o 16 canales por módulo. Las pasarelas ECO son compatibles con los sistemas de bus CANopen, Profibus, DP y Ethernet.
Controladores industriales (PLC) > Módulo de comunicación de periférico descentralizado de bus de campo
Módulos E/S Remotas XION
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton XNE Gateway
Catalog Number
140047
EAN
7640130095281
Product Length/Depth
129 mm
Product Height
75 mm
Product Width
33.5 mm
Product Weight
0.136 kg
Certifications
IEC/EN 61131-2
IEC/EN 61000-6-2
CULus
IEC/EN 61000-6-4
Rated data for terminations according to IEC/EN 60947-7-1
CE
IEC/EN 61000-6-2
CULus
IEC/EN 61000-6-4
Rated data for terminations according to IEC/EN 60947-7-1
CE
Model Code
XNE-GWBR-2ETH-IP
Features & Functions
Features
Fieldbus connection over separate bus coupler possible
Fitted with:
Bus refreshing module
Potential separation
Potential separation
General
Accessories
1 x end plate XN-ABPL and 2 x end bracket XN-WEW-32/2-SW included with supplied equipment.
Admissible range
18 - 30 V DC, Networking
Configuration
Maximum station configuration: 74 cards (XN, XNE) of slice design or max. length of station: 1 m
Degree of protection
IP20
Mounting method
Rail mounting possible
Residual ripple
According to EN 61131-2
Type
Voltage type
DC
Ambient conditions, mechanical
Drop and topple
According to IEC 60068-2-31, free fall according to IEC 60068-2-32
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
Continuous according to IEC/EN 60068-2-29
Continuous according to IEC/EN 60068-2-29
Vibration resistance
According to IEC/EN 60068-2-6
Climatic environmental conditions
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-25 °C
Ambient storage temperature - max
85 °C
Environmental conditions
Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation)
Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)
Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)
Relative humidity
5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)
Electro magnetic compatibility
Air discharge
According to EN 61100-4-2
Burst impulse
According to IEC/EN 61000-4-4
Contact discharge
According to EN 61100-4-2
Electromagnetic fields
According to IEC EN 61100-4-2
Emitted interference
230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)
30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3)
30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3)
Radiated RFI
IEC/EN 61100-4-6
Surge rating
According to IEC/EN 61000-4-5 Level 4
Voltage dips
According to EN 61131-2 (Voltage fluctuations/voltage dips)
Terminal capacities
Terminal capacity
0.25 - 0.75 mm², with ferrules with plastic collar
0.25 - 1.5 mm², solid
0.25 - 1.5 mm², flexible without ferrule
0.25 - 1.5 mm², with ferrules without plastic collar
0.25 - 1.5 mm², solid
0.25 - 1.5 mm², flexible without ferrule
0.25 - 1.5 mm², with ferrules without plastic collar
Gauge pin
A1 (according to IEC/EN 60947-1)
Stripping length (main cable)
8 mm
Electrical rating
Supply voltage
4.7 - 5.3 V DC
Supply voltage at AC, 50 Hz - min
0 V
Supply voltage at AC, 50 Hz - max
0 V
Supply voltage at DC - min
18 V
Supply voltage at DC - max
30 V
Communication
Addressing
Address set via decimal rotary coding switch, BootP, DHCP or I/Oassistant
Address set via DIP switch, BootP, DHCP or PGM
Address range: 1 - 254 decimal
Address set via DIP switch, BootP, DHCP or PGM
Address range: 1 - 254 decimal
Connection type
Push-In spring-cage terminals, Connection design in TOP direction
Screw terminals, Field bus/Supply voltage)
2 x RJ45 (Ethernet Switch), Field bus
Screw terminals, Field bus/Supply voltage)
2 x RJ45 (Ethernet Switch), Field bus
Data transfer rate
100 MBit/s, Networking
Setting automatically
10/100 MBit/s
10 MBit/s, Networking
Setting automatically
10/100 MBit/s
10 MBit/s, Networking
Field voltage
24 V DC (UL)
Interfaces
Mini-USB (Service interface)
Ethernet (Ethernet-IP protocol), Field bus connection
Ethernet (Ethernet-IP protocol), Field bus connection
Protocol
EtherNet/IP
Ethernet
Other bus systems
TCP/IP
Ethernet
Other bus systems
TCP/IP
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Through optocoupler: yes
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
8 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 18 V |
| Tipo de tensión de alimentación (EF002991) | CC |
| Soporta el protocolo EtherCAT (EF017564) | No |
| Soporta el protocolo TCP/IP (EF003050) | Sí |
| Soporta el protocolo PROFIBUS (EF003052) | No |
| Soporta el protocolo CAN (EF003053) | No |
| Soporta el protocolo INTERBUS (EF003054) | No |
| Soporta el protocolo ASI (EF003051) | No |
| Soporta protocolo KNX (EF003055) | No |
| Soporta el protocolo Modbus (EF003057) | No |
| Soporta el protocolo de autopista de datos (EF003058) | No |
| Soporta el protocolo DeviceNet (EF003059) | No |
| Soporta el protocolo SUCONET (EF003060) | No |
| Soporta el protocolo LON (EF003017) | No |
| Soporta el protocolo SERCOS (EF006657) | No |
| Soporta el protocolo PROFINET IO (EF007525) | No |
| Soporta el protocolo PROFINET CBA (EF007524) | No |
| Soporta el protocolo Foundation Fieldbus (EF007522) | No |
| Soporta el protocolo Ethernet/IP (EF007521) | Sí |
| Soporta el protocolo AS-Interface Safety at Work (EF007519) | No |
| Soporta el protocolo DeviceNet Safety (EF007520) | No |
| Soporta el protocolo de seguridad INTERBUS (EF006662) | No |
| Soporta el protocolo PROFIsafe (EF007526) | No |
| Soporta el protocolo SafetyBUS p (EF007527) | No |
| Soporta el protocolo para otros sistemas bus (EF003062) | Sí |
| Estándar inalámbrico Bluetooth (EF007178) | No |
| Estándar de radio WLAN 802.11 (EF007179) | No |
| Estándar de radio GPRS (EF008523) | No |
| Estándar de radio eGPRS (EF009703) | No |
| Estándar de radio GSM (EF008524) | No |
| Estándar de radio LTE (EF009709) | No |
| Estándar de radio UMTS (EF008525) | No |
| Maestro de enlace E/S (EF007298) | No |
| Componente del sistema (EF004118) | Sí |
| Grado de protección (IP) (EF005474) | IP20 |
| Con aislamiento galvánico (EF003272) | Sí |
| Conexión de bus de campo posible a través de un acoplador de bus separado (EF004002) | Sí |
| Montaje en carril posible (EF003972) | Sí |
| Montaje en pared/directo posible (EF007020) | No |
| Instalación frontal posible (EF007016) | No |
| Montaje en rack posible (EF007018) | No |
| Apto para funciones de seguridad (EF001597) | No |
| SIL según IEC 61508 (EF009889) | Ninguno |
| Nivel de rendimiento según EN ISO 13849-1 (EF007399) | Ninguno |
| Equipos asociados (Ex ia) (EF004141) | No |
| Equipos asociados (Ex ib) (EF004142) | No |
| Categoría de protección contra explosiones para gas (EF003997) | Ninguno |
| Categoría de protección contra explosiones para polvo (EF003998) | Ninguno |
| Certificado para áreas peligrosas UL clase I (EF017622) | No |
| Certificado para UL clase II (EF017625) | No |
| Certificado para áreas peligrosas UL Clase III (EF017627) | No |
| Certificado para áreas peligrosas UL División 1 (EF017628) | No |
| Certificado para áreas peligrosas UL División 2 (EF017629) | No |
| Certificado para áreas peligrosas grupo A (acetileno) (EF017632) | No |
| Certificado para áreas peligrosas grupo B (hidrógeno) (EF017633) | No |
| Certificado para áreas peligrosas grupo C (etileno) (EF017635) | No |
| Certificado para áreas peligrosas grupo D (propano) (EF017636) | No |
| Certificado para áreas peligrosas grupo E (polvos metálicos) (EF017637) | No |
| Certificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638) | No |
| Certificado para áreas peligrosas grupo G (polvos no conductores) (EF017639) | No |
| Anchura (EF000008) | 33.5 mm |
| Altura (EF000040) | 75 mm |
| Profundidad (EF000049) | 129 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
