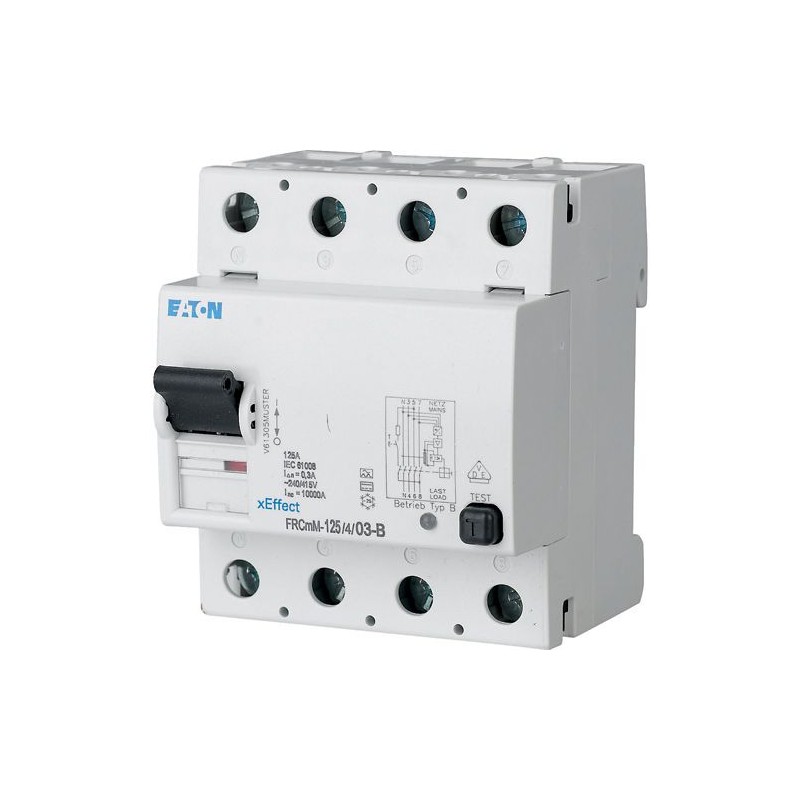

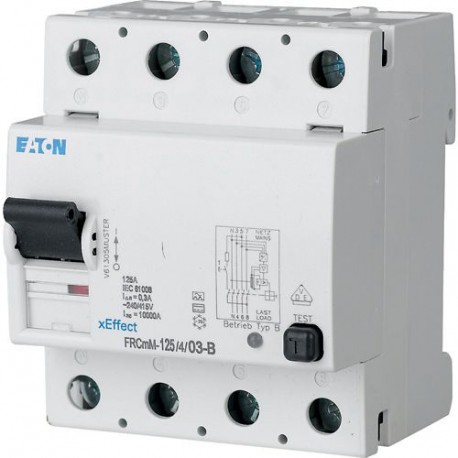

FRCMM-80/4/01-B 187807 Y7-187807 EATON ELECTRIC Interruptor diferencial, 80A, 4p, 100mA, Clase B
FRCMM-80/4/01-B
187807
Y7-187807
EATON-MOELLER
Int. diferencial FRCMM, 80A, 4p, 100mA, Clase B
Eaton Moeller series xEffect - FRCmM-125 Type B, Bfq and B+ RCCB. Residual current circuit-breaker, all-current sensitive, 80 A, 4p, 100 mA, type B
Disyuntor diferencial, 4 polos, Corriente nominal en: 80 A, Resistencia nominal a cortocircuito Icn: 10 con fusible de reserva kA, Corriente de fallo nominal IΔN: 0,1 A
Disyuntores, fusibles > Interruptor automático de corriente residual (RCCB)
Aparamenta Modular – Industrial
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller series xEffect - FRCmM-125 Type B, Bfq and B+ RCCB
Catalog Number
187807
EAN
4015081854912
Product Length/Depth
90 mm
Product Height
80 mm
Product Width
75 mm
Product Weight
0.48 kg
Compliances
RoHS conform
Certifications
IEC/EN 61008
IEC/EN 62423
IEC/EN 62423
Model Code
FRCMM-80/4/01-B
Programa de entrega
Application
Number of poles
Four-pole
Tripping time
Short time-delayed
Amperage Rating
80 A
Rated short-circuit strength
10 kA with back-up fuse
Fault current rating
100 mA
Sensitivity type
All current sensitive
Impulse withstand current
3 kA (8/20 μs) surge-proof
Type
- FRCmM
- Residual current circuit breakers
- Type B
Datos técnicos - eléctricos
Voltage rating (IEC/EN 60947-2)
240 V AC / 415 V AC
Rated operational voltage (Ue) - max
240 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Rated fault current - min
0.1 A
Rated fault current - max
0.1 A
Frequency rating
50 Hz
Short-circuit rating
100 A (max. admissible back-up fuse)
Leakage current type
B
Rated residual making and breaking capacity
800 A
Admissible back-up fuse overload - max
80 A gG/gL
Rated short-time withstand current (Icw)
10 kA
Surge current capacity
3 kA
Test circuit range
184 V AC - 440 V AC
Pollution degree
2
Lifespan, electrical
4000 operations
Datos técnicos - mecánicos
Frame
45 mm
Width in number of modular spacings
4
Built-in width (number of units)
70 mm (4 SU)
Built-in depth
77.5 mm
Mounting Method
Quick attachment for top-hat rail IEC/EN 60715
DIN rail
DIN rail
Mounting position
As required
Degree of protection
IP20, IP40 with suitable enclosure
IP20
IP20
Status indication
Toggle-center postition
Terminals (top and bottom)
Twin-purpose terminals
Terminal capacity (solid wire)
1.5 mm² - 16 mm² (2x)
1.5 mm² - 50 mm²
1.5 mm² - 50 mm²
Connectable conductor cross section (solid-core) - min
1.5 mm²
Connectable conductor cross section (solid-core) - max
50 mm²
Terminal capacity (stranded cable)
1.5 mm² - 16 mm² (2x)
1.5 mm² - 5 mm²
1.5 mm² - 5 mm²
Connectable conductor cross section (multi-wired) - min
1.5 mm²
Connectable conductor cross section (multi-wired) - max
16 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Contact position indicator color
Red / green
Busbar material thickness
0.8 mm - 2 mm
Lifespan, mechanical
20000 operations
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Verificación del diseño según la norma IEC/EN 61439 - datos técnicos
Rated operational current for specified heat dissipation (In)
80 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
22.5 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
75 °C
Verificación del diseño según la norma IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Información adicional
Features
Additional equipment possible
Residual current circuit breaker
Residual current circuit breaker
Fitted with:
Interlocking device
Special features
- Current test marks as per inscription
- Maximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C
Used with
FRCmM
Residual current circuit breakers
Type B
Residual current circuit breakers
Type B
| Característica | Valor |
|---|---|
| Número de polos (EF001391) | 4 |
| Tensión nominal (EF000228) | 240 V |
| Corriente nominal (EF000227) | 80 A |
| Corriente nominal de fallo (EF002358) | 0.1 A |
| Tensión de aislamiento nominal Ui (EF001366) | 440 V |
| Resistencia a picos de tensión asignada (Uimp) (EF011980) | 4 kV |
| Método de montaje (EF000003) | Carril DIN |
| Tipo de corriente de fallo (EF002560) | B |
| Tipo selectivo (EF002561) | No |
| Tipo de retardo de corta duración (EF003604) | No |
| Resistencia al cortocircuito (Icw) (EF002562) | 10 kA |
| Resistencia a la corriente (EF002564) | 3 kA |
| Tipo de tensión (EF000187) | CA |
| Con dispositivo de bloqueo (EF007385) | Sí |
| Frecuencia (EF005455) | 50 Hz |
| Equipos adicionales posibles (EF008148) | Sí |
| Grado de protección (IP) (EF005474) | IP20 |
| Ancho en número de espacios modulares (EF002950) | 4 |
| Profundidad de instalación (EF000218) | 77.5 mm |
| Temperatura ambiente durante el funcionamiento (EF007515) | -25 °C |
| Grado de contaminación (EF002570) | 2 |
| Sección de conductor conectable (EF007343) | 1.5 mm² |
| Sección de conductor conectable sólido (EF007337) | 1.5 mm² |
| Número RAL (similar) (EF003882) | 7035 |
| Protección contra explosiones (EF004663) | No |
